Bently Nevada 3500/72-01-00 (P/N 140734-08) 4-Channel Reciprocating Rod Position Monitor (3500/72M)

Description

Bently Nevada 3500/72-01-00 (P/N 140734-08) 4-Channel Reciprocating Rod Position Monitor (3500/72M)

Product Core Introduction

The 3500/72-01-00 (140734-08) is a 4-channel rack monitor module of Bently Nevada 3500 machinery protection system, specially designed for reciprocating compressors. It receives signals from eddy-current proximity probes, performs static & dynamic piston rod position measurement, rod drop monitoring and hyper-compressor measurement. It supports programmable alert / danger alarm thresholds and relay trip output for machine protection. It is configured by 3500 Rack Configuration Software and can send data to System 1 predictive maintenance platform. This module complies with API 618 reciprocating compressor specification and supports SIL2 certification. It must be installed inside the 3500 series rack (3500/15 or 3500/25M frame). OEM end-of-life; available stock is fully tested refurbished and surplus spare units for reciprocating compressor protection system maintenance.

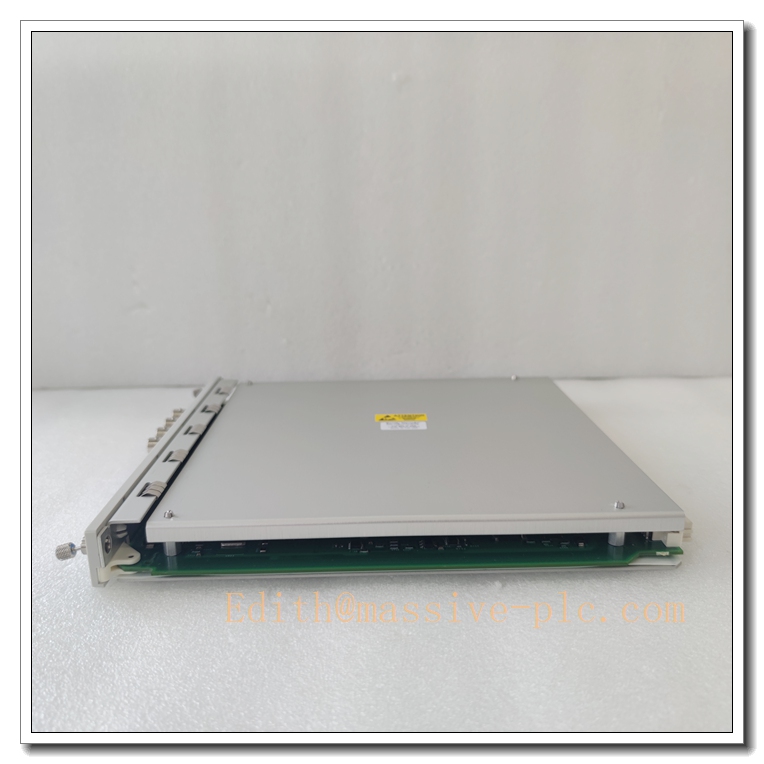

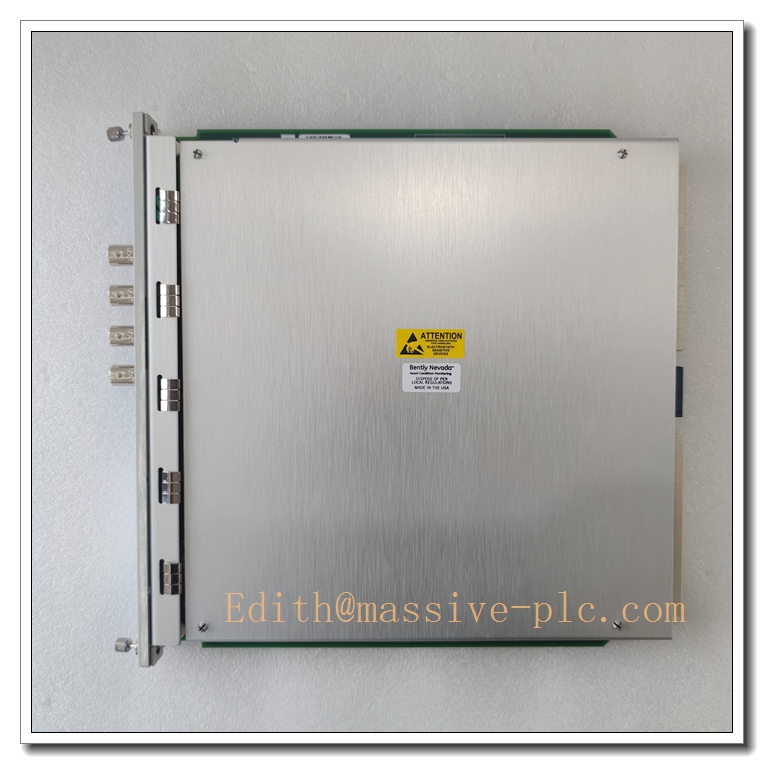

3500/72-01-00 140734-08

Main Technical Specifications

Brand Same‑Series Model Recommendation

• 3500/72-00-00: Earlier hardware revision of rod position monitor, different firmware version.
• 3500/70M: Reciprocating compressor impact & velocity monitor for reciprocating machine dynamic shock measurement.
• 3500/42M: Multi-function vibration monitor for rotating turbomachinery (turbine, pump, centrifugal compressor).
• 3500/77M: Cylinder pressure monitor for reciprocating compressor cylinder pressure monitoring.

Professional Quality Control Test Standard Operating Procedures (SOP)

5.1 Incoming & Visual Inspection

Inspect PCB, edge connector, front panel, terminal connectors and conformal coating. Visual check for burnt traces, capacitor swelling, connector pin bending or oxidation. Continuity and insulation test for probe input circuits. Retain batch traceability records.

5.2 Low-Voltage Power-On Pre-Test

Insert module into 3500 test rack. Power up rack, verify module initialization, front LED status and rack communication handshake. Check for abnormal heating.

5.3 Burn-in Test

48-hour continuous powered burn-in at 40°C ambient. Inject proximity probe simulated signals, verify channel reading stability, rod position/rod drop calculation, alarm & trip action. Reject units with intermittent communication or measurement drift.

5.4 Full Functional Calibration & Parameter Test

Use proximity signal simulator to calibrate all 4 channels. Verify rod position and rod drop calculation accuracy. Configure alert and danger thresholds, validate alarm triggering and relay trip function. Test communication with 3500 configuration software and System1.

5.5 Environmental Stress Screening

Temperature cycling (0 ℃ ↔ +60 ℃), humidity soak and low-level vibration per IEC 60068. Recheck measurement accuracy and rack communication after stress screening.

5.6 Final Acceptance Test

Full integration test inside 3500 rack. Verify pairing configuration of channels, alarm logging and host data transmission. Complete appearance, label and accessory inspection before anti-static packaging.

New Module Installation Guidelines

6.1 Pre-Installation Preparation

1. Lock-out/tag-out 3500 rack power supply.
2. Wear anti-static wristband and gloves; use anti-static mat.
3. Inspect 3500/72 module for damage; confirm firmware compatibility with existing rack and other modules.
4. Confirm proximity probes and proximitor wiring are ready.

6.2 Hardware Installation

1. Align the module with rack guide rails, insert smoothly into the empty slot and tighten front panel screws.
2. Wire proximity probes and proximitor signal cables to the module I/O terminals following Bently wiring diagram.
3. Separate low-level probe signal cables from high-power motor cables to reduce EMI noise. Ensure proper protective earth grounding.

6.3 Post-Installation Commissioning

1. Double-check wiring and module seating before power-on.
2. Power up the 3500 rack, confirm module recognized by rack controller.
3. Use 3500 Rack Configuration Software to configure channel pairs, measurement mode and alarm / danger setpoints. Save configuration to rack.
4. Perform static gap test with field proximity probes, verify rod position reading.
5. Start reciprocating compressor, run continuous trending test for 30–60 minutes before putting into online machinery protection.

Important Safety Note: This module is safety-related machinery protection component for reciprocating compressors. Wrong configuration or faulty signal may cause false trip or loss of machine protection. Only certified Bently vibration & reciprocating compressor protection technicians are allowed for configuration and commissioning.

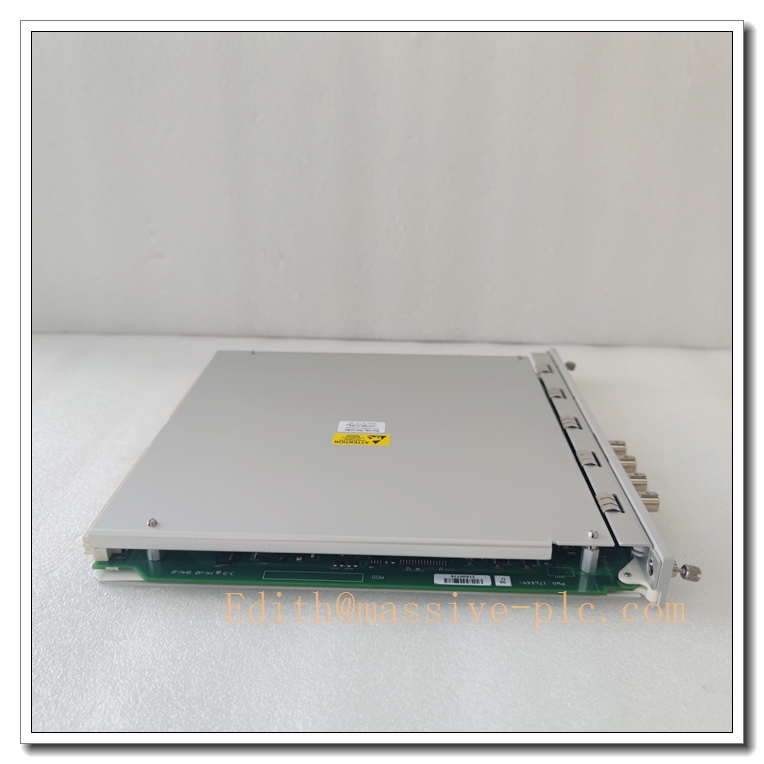

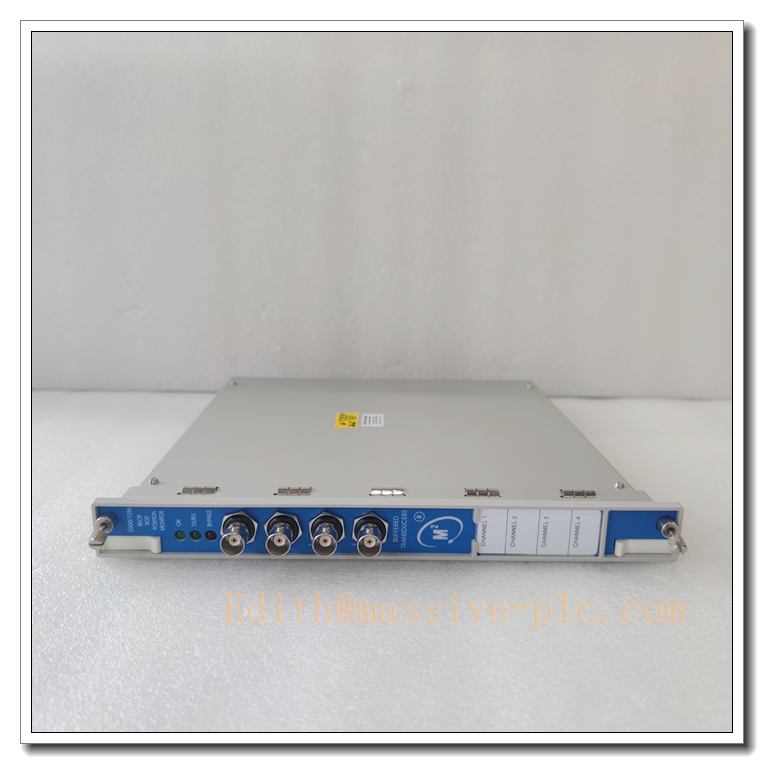

3500/72-01-00 140734-08

Application Scenarios & Product Characteristics

7.1 Application Scenarios

• Petrochemical / refinery reciprocating compressors
• Hyper-compressor high-pressure reciprocating equipment
• Reciprocating compressor piston rod position, rod drop and rider band wear monitoring
• API618 reciprocating machine machinery protection & predictive maintenance
• Legacy Bently 3500 rack reciprocating compressor system spare replacement

7.2 Key Characteristics

• 4-channel reciprocating dedicated rod position monitor, works with eddy current proximity probes
• Supports rod position, rod drop and hyper-compressor measurement modes
• Channels configured in pairs for reciprocating compressor crank-angle related measurement
• User programmable alert and danger thresholds, relay trip for machine protection
• Complies with API618 reciprocating compressor standard, SIL2 available
• Integrates with 3500 rack and System1 software for trending and diagnostic analysis
• Critical spare for legacy Bently 3500 reciprocating compressor protection systems (OEM discontinued)

FAQ (Frequently Asked Questions)

Q1: After replacement, rack cannot recognize 3500/72 module. A1: Check module seating and edge connector oxidation. Confirm rack firmware version compatibility. Reboot rack and retry.

Q2: Rod position reading unstable, noisy signal. A2: Check proximity probe cable shielding and grounding. Inspect probe and proximitor health, cable routing away from high voltage power cables.

Q3: Alarm cannot trigger when rod drop exceeds threshold. A3: Verify channel pair configuration in 3500 software, confirm alarm enable and correct setpoint. Check relay assignment in rack.

Q4: Can I use this module for centrifugal turbine shaft vibration measurement? A4: Not suitable. This is dedicated for reciprocating compressor rod position; use 3500/42M for centrifugal turbomachinery vibration.

Q5: Can I replace 140734-08 with older 3500/72 hardware revision directly? A5: Form factor is same, but firmware must be validated. Re-do channel configuration and alarm test after replacement.

Q6: Hot swap module allowed? A6: 3500 rack supports hot-swap mechanically, but for safety protection system, power-off and LOTO is recommended during module replacement to avoid unexpected machine trip.
