Bently Nevada™ 3500/60 Temperature Monitor — Part No. 163179-01
Product Overview
The Bently Nevada 3500/60 (Part No. 163179-01) is a six-channel temperature monitoring module designed for the 3500 Series Machinery Protection System. Manufactured by Bently Nevada, a Baker Hughes business, this module delivers continuous, online temperature surveillance for critical rotating machinery and process equipment. It conditions temperature inputs from both Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), comparing measured values against user-programmable alarm setpoints to drive protective relay logic and alerting functions.

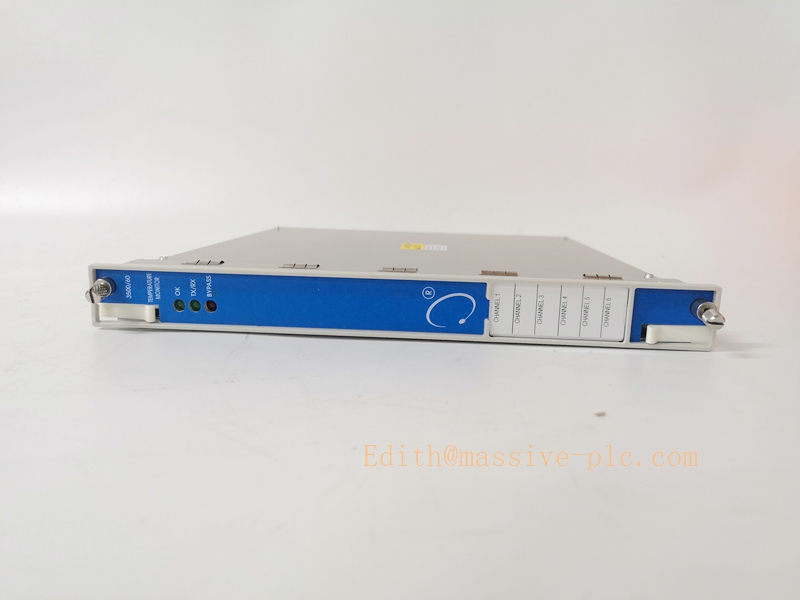

350060 163179-01
Key Features
| Feature | Description |
|---|---|
| Channels | 6 independent temperature monitoring channels |
| Input Types | RTD (Resistance Temperature Detector) and Thermocouple (TC) |
| Configuration Flexibility | RTD/TC non-isolated or TC isolated I/O module variants |
| Channel Isolation | 250 Vdc channel-to-channel isolation (TC isolated version) |
| Alarm Setpoints | User-programmable Alert and Danger thresholds via 3500 Rack Configuration Software |
| Redundancy Support | Triple Modular Redundant (TMR) configuration with dual voting logic |
| Safety Rating | SIL 2 capable; multiple hazardous area certifications |
| Field-Configurable | Full-scale ranges set via software — no calibration required |
The 3500/60 and 3500/61 share identical core functionality; the sole distinction is that the 3500/61 adds independent +4 to +20 mA recorder outputs for each of its six channels, whereas the 3500/60 does not.
Technical Specifications
Inputs
| Parameter | Specification |
|---|---|
| Signal | 1 to 6 RTD or TC transducer signals |
| Input Impedance | >10 MΩ per lead input |
| RTD Current Source | 925 ±15 µA @ 25°C per transducer |
Supported Transducers
Thermocouples (TCs):
- Type E: −100 °C to +1000 °C (−148 °F to +1832 °F)
- Type J: 0 °C to +760 °C (+32 °F to +1400 °F)
- Type K: 0 °C to +1370 °C (+32 °F to +2498 °F)
- Type T: −160 °C to +400 °C (−256 °F to +752 °F)
RTDs:
- 100 Ω Platinum (3-wire & 4-wire, α = 0.00385): −200 °C to +850 °C
- 100 Ω Platinum (3-wire & 4-wire, α = 0.00392): −200 °C to +700 °C
- 120 Ω Nickel (3-wire & 4-wire): −80 °C to +260 °C
- 10 Ω Copper (3-wire & 4-wire): −100 °C to +260 °C
Performance
| Parameter | Specification |
|---|---|
| Resolution | 1 °C or 1 °F |
| Accuracy (Internal Termination, Non-Isolated) | ±3 °C at 25 °C |
| Accuracy (External Termination, Isolated) | ±1 °C at 25 °C |
| Cold Junction Compensation | ±1 °C at 25 °C |
| Alarm Accuracy | Within 0.13% of desired value |
Power & Environmental
| Parameter | Specification |
|---|---|
| Power Consumption (3500/60) | 7 W nominal |
| Power Consumption (3500/61) | 9 W nominal |
| Operating Temperature | −30 °C to +65 °C (−22 °F to +150 °F) |
| Storage Temperature | −40 °C to +85 °C (−40 °F to +185 °F) |
| Humidity | 95%, non-condensing |
Physical
| Parameter | Specification |
|---|---|
| Dimensions (Module) | 241.3 mm × 24.4 mm × 241.8 mm (9.50 in × 0.96 in × 9.52 in) |
| Weight | 0.91 kg (2.0 lb) |
| Rack Space | 1 full-height front slot + 1 full-height rear slot |

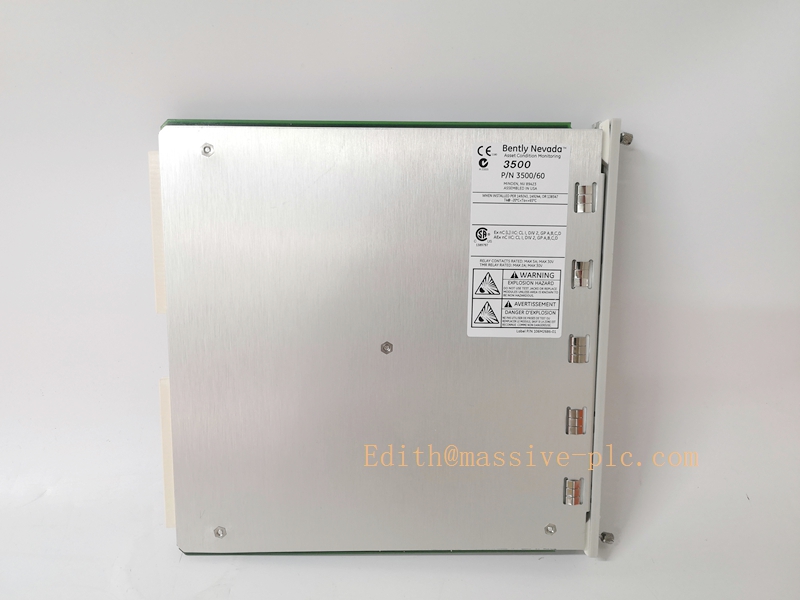

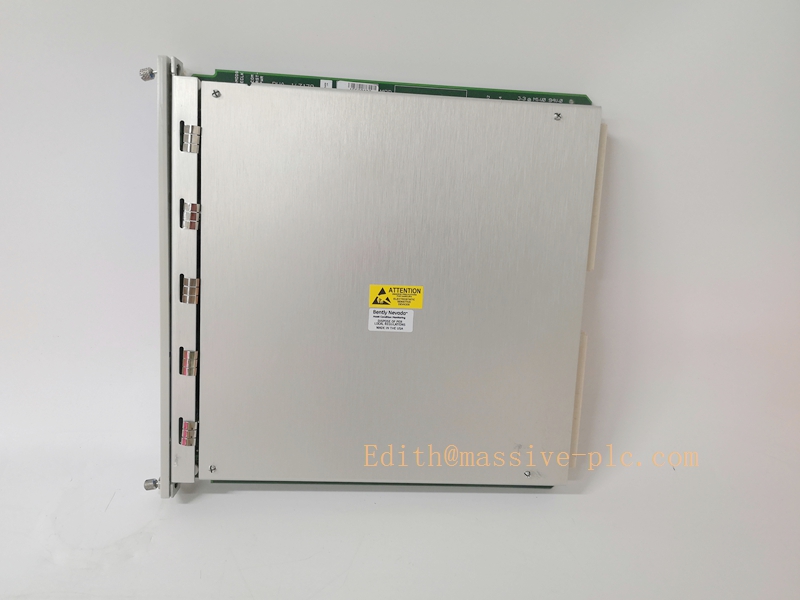

350060 163179-01
Application Scenarios
The 3500/60 is engineered for mission-critical temperature monitoring across a broad spectrum of industrial machinery and processes, fully compliant with API 670 standards. Typical applications include:
- Radial Bearing Metal Temperature — monitoring bearing health in turbines, compressors, and pumps
- Thrust Bearing Metal Temperature — detecting thrust load anomalies in large rotating equipment
- Compressor Suction & Discharge Temperatures — safeguarding reciprocating and centrifugal compressors
- Steam Temperature — turbine supervisory instrumentation (TSI) for steam path monitoring
- Motor Stator Temperatures — thermal protection for large AC/DC motors and generators
- Process Temperature Differentials — delta-T monitoring for heat exchangers and cooling systems
Ordering Information & I/O Module Variants
The 3500/60 is ordered as 3500/60-AA-BB, where:
| Code | I/O Module Type |
|---|---|
| -01 | RTD/TC Non-Isolated, Internal Terminations |
| -02 | RTD/TC Non-Isolated, External Terminations |
| -03 | TC Isolated, Internal Terminations |
| -04 | TC Isolated, External Terminations |
| -05 | RTD/TC Non-Isolated with Internal Barriers |
| Code | Agency Approval |
|---|---|
| -00 | None |
| -01 | CSA/NRTL/C (Class I, Div 2) |
| -02 | ATEX/IECEx/CSA (Class I, Zone 2) |
Part No. 163179-01 corresponds to a specific configured 3500/60 module assembly.
Supporting Components & Ecosystem
Essential System Components
| Component | Function |
|---|---|
| 3500/05 System Rack | Houses all monitor modules and power supplies; available in 19″ standard and 14″ mini configurations |
| 3500/15 Power Supply | AC/DC power module; supports redundant dual-supply operation |
| 3500 Rack Configuration Software | Field-configures channels, alarm setpoints, and TMR voting logic |
| 3500/22M TDI (Transient Data Interface) | Enables data communication with System 1™ software |
I/O & Termination Accessories
| Part Number | Description |
|---|---|
| 133908-01 | RTD/TC Non-Isolated External Termination Block (Terminal Strip) |
| 133916-01 | RTD/TC Non-Isolated External Termination Block (Euro Style) |
| 133924-01 | TC Isolated External Termination Block (Terminal Strip) |
| 133932-01 | TC Isolated External Termination Block (Euro Style) |
| 134544-AAAA-BB | Transducer Signal to External Termination Cable |
Complementary 3500 Modules
| Module | Role |
|---|---|
| 3500/32M | 4-Channel Relay Module — drives alarm and shutdown logic |
| 3500/33 | 16-Channel Relay Module |
| 3500/92 | Communication Gateway — Modbus/TCP, Ethernet, serial integration |
| 3500/94M | VGA Touchscreen Display — local HMI for rack data visualization |
| 3500/25 | Keyphasor® Module — phase reference and speed measurement |
| 3500/42M | Proximitor®/Seismic Monitor — vibration and position monitoring |
Related & Alternative Models
| Model | Description |
|---|---|
| 3500/61 | Six-channel temperature monitor with +4 to +20 mA recorder outputs per channel |
| 3500/61 163179-02 | Recorder-output variant of the temperature monitor |
| 3500/65 | 16-channel temperature monitor for high-density RTD/TC applications |
| 3500/62 | Process Variable Monitor — accepts 4–20 mA and ±10 Vdc inputs |
| 3500/70M | Recip Impulse/Velocity Monitor — reciprocating machinery protection |
Certifications & Compliance
- EMC: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions)
- Electrical Safety: EN 61010-1
- Hazardous Area: CSA/NRTL/C Class I, Div 2; ATEX/IECEx Class I, Zone 2
- Maritime: ABS, DNV GL
- RoHS: Directive 2011/65/EU
Summary
The Bently Nevada 3500/60 (163179-01) represents a robust, field-proven solution for multi-channel temperature monitoring within the 3500 Machinery Protection System. With its flexible RTD/TC input compatibility, software-configurable alarm logic, TMR redundancy capability, and comprehensive hazardous area certifications, it serves as a critical layer of thermal protection for the world’s most demanding rotating machinery applications — from steam turbines and gas compressors to hydroelectric generators and process motors.
