Bently Nevada 3500/53 (323133-01) Zero Speed Monitor Module
Product Overview
The Bently Nevada 3500/53 Zero Speed Monitor Module (323133-01) is a high-performance, factory-calibrated dedicated zero-speed and ultra-low speed monitoring module designed for the Bently Nevada 3500 Machinery Protection System. Optimized for rotating machinery standstill confirmation, micro-rotation detection and maintenance safety interlock control, this module is a formal upgraded industrial revision of the classic 3500/53 series, filling the precision monitoring gap of conventional speed monitoring modules in static and low-speed operating scenarios. The part number 323133-01 features optimized low-frequency signal acquisition circuits, upgraded on-site anti-interference performance and standardized industrial firmware, with more stable long-term operation performance compared with early basic versions such as 133388-01 and 133396-01.
The 3500/53 (323133-01) stably collects low-frequency pulse signals from magnetic pickup sensors and standard proximity probe assemblies, achieving high-precision identification of equipment full standstill state and ultra-low speed micro-rotation. It supports configurable zero-speed interlock locking, low-speed creeping alarm and startup permission control functions. Fully compliant with API 670 international machinery safety standards, the module integrates comprehensive full-link self-diagnosis functions, supports professional software configuration and 24/7 uninterrupted stable operation. It is widely applicable to safety interlock protection and condition monitoring of core rotating equipment in thermal power, petrochemical, natural gas and process industrial fields, effectively preventing equipment mis-startup accidents and ensuring on-site operation safety.

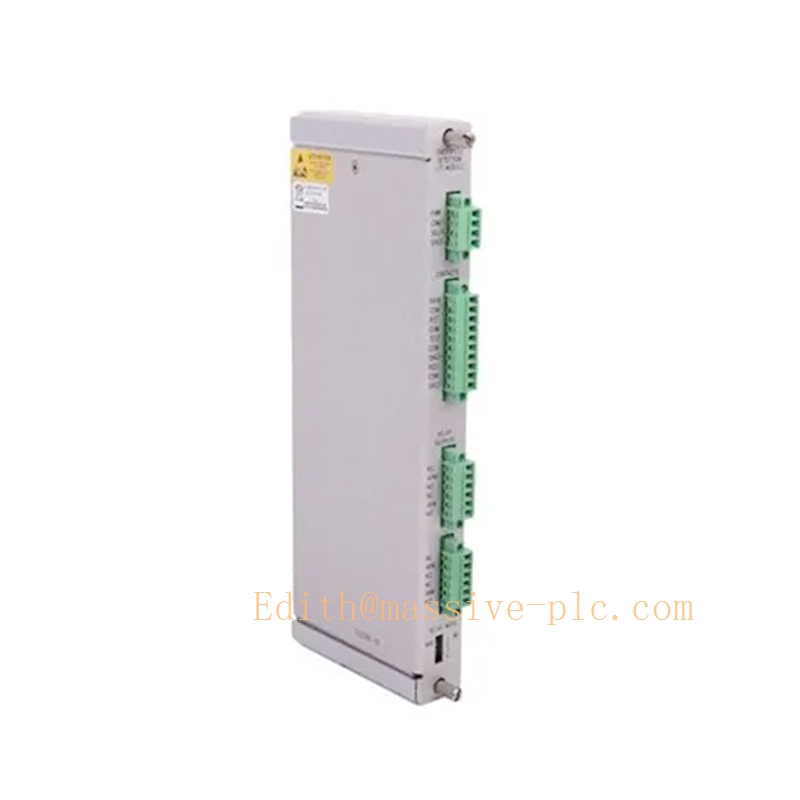

350053 323133-01
Core Technical Parameters
| Parameter Item | Technical Specifications |
| Official Model | 3500/53 Zero Speed Monitor Module |
| Part Number | 323133-01 (Upgraded Industrial Standard Revision) |
| Core Function | Zero-speed standstill precision detection, ultra-low speed creeping monitoring, equipment static interlock control, startup safety prohibition protection, low-speed anomaly alarm |
| Input Signal Type | Low-frequency pulse signals compatible with standard magnetic pickup sensors and proximity probe assemblies |
| Monitoring Speed Range | 0 ~ 1000 RPM ultra-low speed precision monitoring, fully software configurable threshold |
| Detection Sensitivity | Optimized high-sensitivity algorithm, accurate identification of micro-rotation and full static standstill, effective suppression of on-site signal jitter |
| Channel Configuration | Dual physically independent redundant monitoring channels for high-reliability static state judgment |
| Interlock Logic | Configurable multi-level low-speed alarm and zero-speed interlock prohibition logic, flexible startup permission release threshold |
| System Compatibility | 100% compatible with standard 3500 rack backplane bus, fully backward compatible with legacy 3500 system configurations |
| Configuration Software | Bently Nevada 3500 System Official Configuration Software |
| Operating Temperature | -20℃ ~ +60℃ standard industrial operating temperature range |
| Humidity Range | 5%~95% RH, non-condensing |
| Industrial Compliance | API 670 certified, industrial machinery safety interlock protection grade |
| Diagnostic Function | Full-link sensor fault detection, weak signal loss alarm, low-frequency pulse abnormality diagnosis, internal circuit self-test and fault code output |
Main Product Features
3.1 Optimized Ultra-Low Speed Precision Detection
The 3500/53 (323133-01) adopts an upgraded low-frequency pulse sampling and filtering algorithm, specially optimized for industrial equipment static standstill and micro-rotation monitoring scenarios. Compared with early classic versions, it effectively filters on-site electromagnetic clutter and signal jitter, solves the problem of false judgment of equipment static state in complex working conditions, and realizes millisecond-level accurate identification of tiny residual rotation of shutdown equipment. It provides reliable and accurate data support for equipment maintenance safety locking.
3.2 Dual Redundant Independent Monitoring Channels
The module is equipped with two completely physically isolated and electrically independent detection channels. The dual-channel synchronous verification mechanism performs real-time collection and judgment of equipment speed and static state, which can effectively avoid safety risks such as equipment mis-startup caused by single-channel circuit failure, signal attenuation or wiring abnormality. The redundant design greatly improves the operational reliability of the industrial safety interlock loop and meets the basic safety redundancy requirements of key production equipment.
3.3 Flexible and Reliable Safety Interlock Logic
This module supports freely configurable low-speed early warning threshold and zero-speed strict interlock locking logic. It can intelligently distinguish three equipment states: complete static standstill, low-speed creeping operation and normal rotation. It automatically locks the equipment startup authority when the equipment is not completely shut down, and safely releases the startup permission only after accurate zero-speed confirmation. It effectively prevents safety accidents such as equipment collision, bearing damage and personal injury caused by mis-operation startup during equipment maintenance and standby switching.
3.4 Full-Link Intelligent Fault Self-Diagnosis
The 323133-01 revision realizes full-link coverage self-diagnosis from field sensors, signal wiring to internal hardware circuits. It can accurately detect common faults such as sensor disconnection, aging and signal loss, weak pulse distortion, wiring virtual connection and internal circuit abnormality, and output standardized fault codes and operation logs. The real-time uploaded diagnostic data helps maintenance personnel quickly locate faults, eliminate hidden dangers in time, and ensure zero monitoring blind spots in the safety protection system.
3.5 Excellent Industrial Environmental Adaptability
Adopting industrial-grade high-stability components and optimized EMC anti-interference design for low-frequency signals, the module has strong adaptability to complex industrial environments with strong vibration, electromagnetic interference and power fluctuation. It can maintain stable weak signal capture and accurate static state judgment in harsh on-site working conditions, and support 24/7 long-term uninterrupted safe monitoring operation, adapting to long-cycle production and operation requirements of industrial enterprises.
3.6 Plug-and-Play Installation and Low Maintenance Cost
The module adopts standard 3500 rack plug-and-play installation mode, with good compatibility and replaceability. All monitoring parameters, alarm thresholds and interlock logic can be remotely configured and adjusted through official supporting software. It supports real-time data viewing and historical fault query, which is convenient for daily equipment inspection and troubleshooting. It can directly replace old versions of 3500/53 modules without modifying system wiring and program logic, effectively reducing system upgrade and operation and maintenance costs.
Specific Application Scenarios
The Bently Nevada 3500/53 (323133-01) zero speed monitor module is widely used in industrial scenarios requiring strict equipment static confirmation and safety interlock protection, covering thermal power, petrochemical, natural gas and coal chemical industries.
Typical Industrial Application Scenarios:
• Turbine Maintenance Safety Locking: Accurate zero-speed standstill confirmation for steam and gas turbines, locking startup authority to ensure safe maintenance and overhaul operations.
• Process Compressor Startup Interlock: Static state detection and low-speed creeping early warning for large petrochemical and natural gas compressors to prevent mis-startup faults.
• Large Auxiliary Equipment Safety Protection: Zero-speed monitoring and safety interlock for industrial large fans, blowers and water pumps to avoid forced startup damage of incomplete shutdown equipment.
• Low-Speed Equipment Fault Early Warning: Precisely capture abnormal micro-rotation and low-speed creeping of shutdown equipment, realizing early warning of latent mechanical faults.
• 3500 System Module Replacement & Upgrade: Ideal upgraded replacement module for old 133388-01 and 133396-01 versions, used for on-site system performance optimization and maintenance.
Supporting Components
The 3500/53 (323133-01) forms a complete zero-speed safety monitoring system with standard Bently Nevada 3500 series supporting accessories:
• 3500/05 System Rack: Standard system chassis, providing unified mechanical installation and backplane bus communication interface.
• 3500/15 Power Supply Module: Redundant system power supply to ensure stable and uninterrupted operation of the monitoring module.
• 3500/22 Transient Data Interface: Realizing system data upload, remote configuration and upper monitoring platform docking.
• Low-Speed Magnetic Pickup Sensor: Special sensor for collecting zero-speed and ultra-low speed pulse signals of rotating shafts.
• High-Sensitivity Proximity Probe Assembly: Precision probe for capturing weak low-frequency rotation pulse signals.
• Shielded Low-Frequency Signal Cables: Anti-interference shielding cables to ensure stable and distortion-free transmission of weak field signals.
Related Series Models & Version Iteration
The 3500/53 323133-01 is a mid-late optimized upgraded revision of the standard 3500/53 series, with clear iterative replacement relationships with other versions:
• 323133-01 (Optimized Upgraded Version): Stable industrial upgraded revision, with improved signal anti-interference and detection accuracy, mainstream replacement model for old system maintenance and upgrade.
• 133396-01 (Mid Enhanced Version): Early enhanced version with basic upgraded performance, gradually replaced by 323133-01 in on-site renewal projects.
•133388-01 (Basic Classic Version): The earliest basic zero-speed monitoring module, with simple functions and ordinary anti-interference performance, phased out in batches.
• 288062-01 (3500/53M High-End Version): Top-level M-type enhanced module with safety voting function, suitable for high-standard high-safety projects.
• 3500/50 Speed Monitor Module: Matches with 3500/53 module to realize full-range monitoring from static standstill to high-speed operation of equipment.
• 3500/40 / 3500/42 Vibration Monitor Modules: Cooperates with zero-speed data to form multi-parameter comprehensive machinery condition protection system.
