Bently Nevada 3500/50 (136703-01) Speed Monitor Module

Description

Bently Nevada 3500/50 (136703-01) Speed Monitor Module

Product Overview

The Bently Nevada 3500/50 Speed Monitor Module (136703-01) is a high-reliability machinery speed monitoring card designed for the Bently Nevada 3500 Machinery Protection System. It is a core functional module dedicated to real-time rotational speed measurement, overspeed protection, zero-speed standstill detection and dynamic acceleration monitoring for critical industrial rotating equipment. The part number 136703-01 is a reliable mid-generation hardware revision of the 3500/50 series, featuring mature circuit design, stable firmware operation and excellent field compatibility. This version is widely applied in legacy and mid-term constructed 3500 system projects, serving as a standard matching operating module and universal spare part for on-site machinery protection loops.

The module accurately collects frequency pulse signals from magnetic pickup sensors and proximity probe assemblies, converting analog pulse signals into precise RPM digital values. It supports fully configurable alert, danger and trip threshold parameters, realizing automatic alarm and interlock protection for equipment overspeed, under-speed and standstill status. Strictly compliant with API 670 international machinery protection standards, the 3500/50 (136703-01) integrates comprehensive hardware self-diagnosis functions, supports professional software configuration and long-term stable operation in conventional industrial environments. It is widely used in thermal power generation, petrochemical refining, natural gas transmission and coal chemical industries to ensure safe and reliable operation of core rotating machinery.

Core Technical Parameters

Main Product Features

3.1 Mature and Reliable Speed Measurement Performance

The 3500/50 (136703-01) adopts field-verified pulse sampling and frequency conversion algorithms, with stable and reliable measurement performance after long-term industrial operation verification. It supports full-range speed monitoring from complete equipment standstill to high-speed rotation, featuring accurate data output, low sampling error and no long-term data drift. The standardized circuit design effectively adapts to conventional industrial vibration and electromagnetic interference environments, ensuring continuous and stable speed monitoring for core rotating machinery.

3.2 Dual Independent Redundant Monitoring Channels

The module is equipped with two physically isolated and electrically independent monitoring channels, which can realize dual redundant speed signal acquisition for a single rotating device or synchronous speed monitoring of two independent equipment sets. Each channel has independent signal processing, parameter configuration and fault diagnosis logic. The dual-channel redundant design avoids monitoring failure caused by single-channel abnormality, significantly improving the overall reliability of the machinery overspeed protection loop.

3.3 Complete Multi-Dimensional Safety Protection Logic

This module integrates multiple core protection functions including adjustable overspeed alert, critical overspeed trip, zero-speed standstill interlock and acceleration/deceleration anomaly monitoring. It can quickly and accurately capture abnormal operating states such as equipment overspeed runaway, sudden speed drop and abnormal startup, and output standard hardwired trip signals to trigger system interlock shutdown. It effectively prevents major mechanical faults such as blade collision, bearing burnout and equipment overload damage, ensuring safe and stable operation of high-speed rotating equipment.

3.4 Full-Loop Real-Time Fault Self-Diagnosis

The 136703-01 revision supports full-link real-time self-diagnosis covering field sensors, signal wiring and internal hardware circuits. It can accurately identify common faults such as sensor disconnection, signal attenuation, pulse distortion and internal circuit failure, and generate standardized fault codes and operation logs. The diagnostic data can be uploaded to the upper monitoring system in real time, helping maintenance personnel quickly locate faults and eliminate hidden dangers, ensuring full availability of the speed protection system.

3.5 Stable Industrial Environmental Adaptability

Adopting industrial-grade components and standardized EMC anti-interference design, the 136703-01 module has excellent adaptability to conventional industrial scenarios. It can resist on-site electromagnetic interference, mechanical vibration and power fluctuation, maintaining stable signal acquisition and accurate data output in factory workshops and field equipment rooms. It supports 24/7 long-term uninterrupted operation and fully meets the continuous safety monitoring requirements of industrial production equipment.

3.6 Flexible Configuration and Low Operation & Maintenance Cost

All monitoring parameters, alarm thresholds and protection logic of the module can be remotely configured, calibrated and adjusted through the official 3500 system software. It supports real-time data display, historical trend recording and fault log query, facilitating daily equipment condition analysis and rapid troubleshooting. Adopting standard rack plug-and-play installation, the module is easy to install, replace and debug, effectively reducing system operation and maintenance costs.

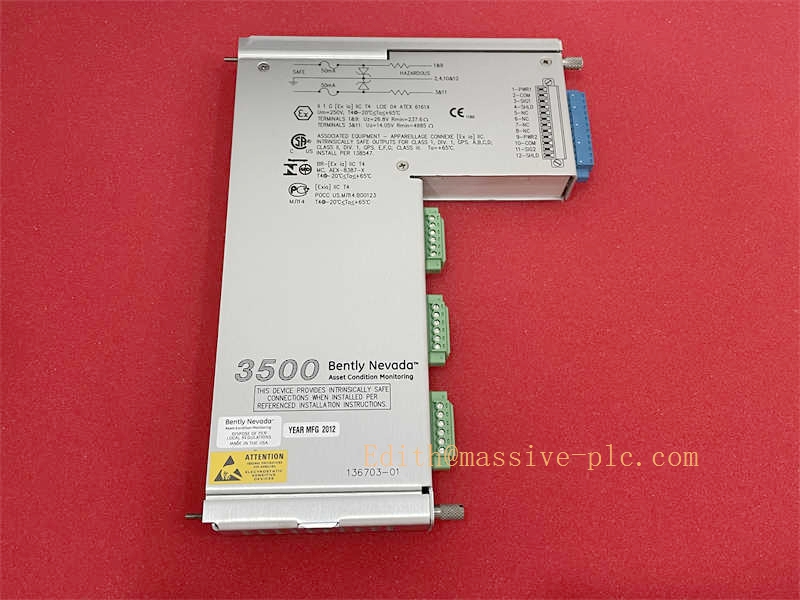

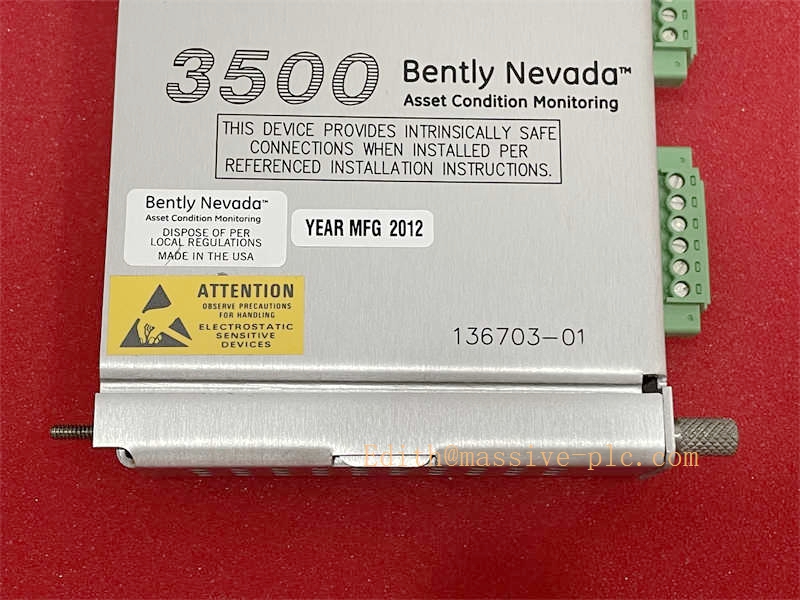

350050 136703-01

Specific Application Scenarios

The Bently Nevada 3500/50 (136703-01) speed monitor module is widely used in industrial machinery safety protection systems, focusing on speed monitoring and overspeed safety protection of core high-speed rotating equipment in thermal power, petrochemical, natural gas and coal chemical industries.

Typical Industrial Application Scenarios:

• Steam & Gas Turbine Safety Protection: Real-time speed tracking and critical overspeed trip protection for power generation turbines to prevent equipment runaway and major mechanical safety accidents.

• Process Compressor Monitoring: Speed feedback detection and zero-speed interlock control for petrochemical and natural gas centrifugal compressors, ensuring standardized safe start-stop and interlock logic execution.

• Large Fan & Pump Equipment Supervision: Abnormal speed alarm and fault monitoring for large auxiliary rotating equipment to avoid overload operation and mechanical damage.

• Equipment Maintenance Safety Interlock: Zero-speed standstill detection to confirm equipment static state, providing reliable safety locking basis for equipment maintenance and personnel operation protection.

• Mid-Generation 3500 System Matching & Replacement: Standard matching module for mid-version 3500 systems, widely used for on-site equipment maintenance and spare part replacement.

Supporting Components

The 3500/50 (136703-01) forms a complete industrial speed monitoring and protection system with standard Bently Nevada 3500 series supporting accessories:

• 3500/05 System Rack: Standard system chassis, providing unified mechanical installation and backplane bus communication interface.

• 3500/15 Power Supply Module: Redundant system power supply unit to ensure stable and uninterrupted operation of the monitoring module.

• 3500/22 Transient Data Interface: Realizing system data upload, remote configuration and docking with upper monitoring platform.

• Magnetic Pickup Speed Sensor: Special field sensor for collecting rotating shaft speed pulse signals.

• Standard Proximity Probe Assembly: High-precision probe for speed and phase signal acquisition of high-speed rotating shafts.

• Shielded Signal Cables & Terminal Boards: Anti-interference wiring accessories to ensure stable and distortion-free signal transmission.

Related Series Models & Version Iteration

The 3500/50 136703-01 is a practical mid-generation standard revision in the 3500 speed monitoring series, with clear iteration and replacement relationships with other versions:

• 136703-01 (Mid-Generation Standard Version): Stable optimized revision with balanced performance and compatibility, suitable for most conventional 3500 system projects and daily spare part replacement.

• 133442-01 / 133388-02 (Early Basic Versions): Early original revisions, gradually replaced by 136703-01 for improved stability and diagnostic performance.

• 125808-05 (Optimized Stable Version): Late mid-generation enhanced revision with stronger anti-interference performance.

• 288062-02 (Latest Enhanced Version): New-generation upgraded revision for high-standard new industrial projects.

• 3500/40 Proximity Monitor Module: Shaft vibration and displacement monitoring module, matched with 3500/50 to form complete turbomachinery condition protection system.

• 3500/42 Vibration Monitor Module: Bearing and casing vibration monitoring unit, cooperating with speed data to realize multi-dimensional equipment fault analysis.

• 3500/53 Zero Speed Monitor: Professional zero-speed enhanced module for ultra-strict static interlock scenarios.

• 3500/60 Temperature Monitor Module: Equipment temperature monitoring module, realizing multi-parameter joint safety protection for rotating machinery.
