Bently Nevada 3500/50 (133442-01) Speed Monitor Module

Description

Bently Nevada 3500/50 (133442-01) Speed Monitor Module

Product Overview

The Bently Nevada 3500/50 Speed Monitor Module (133442-01) is a dedicated high-precision speed and zero-speed monitoring module designed for the Bently Nevada 3500 Machinery Protection System. As a core functional unit for rotating machinery safety monitoring, it is specially developed for speed measurement, overspeed protection, standstill judgment and acceleration condition monitoring of industrial high-speed rotating equipment. The part number 133442-01 is a classic standard hardware revision of the 3500/50 series, featuring mature circuit design, stable firmware operation and excellent field compatibility, serving as a mainstream universal speed monitoring module for early-stage 3500 system projects and conventional equipment protection scenarios.

This module efficiently collects pulse signals from on-site magnetic pickup sensors and proximity probes, converts variable frequency pulse signals into accurate real-time RPM values, and supports flexible configuration of equipment speed alarm and trip thresholds. It provides reliable overspeed interlock protection and zero-speed static detection signals for core equipment such as turbines and compressors. Fully compliant with API 670 international machinery protection standards, the 3500/50 (133442-01) supports full-channel self-diagnosis, professional software configuration and long-term stable operation in conventional industrial environments. It is widely used for new project deployment and old system spare part replacement in petrochemical, natural gas, thermal power and process manufacturing industries.

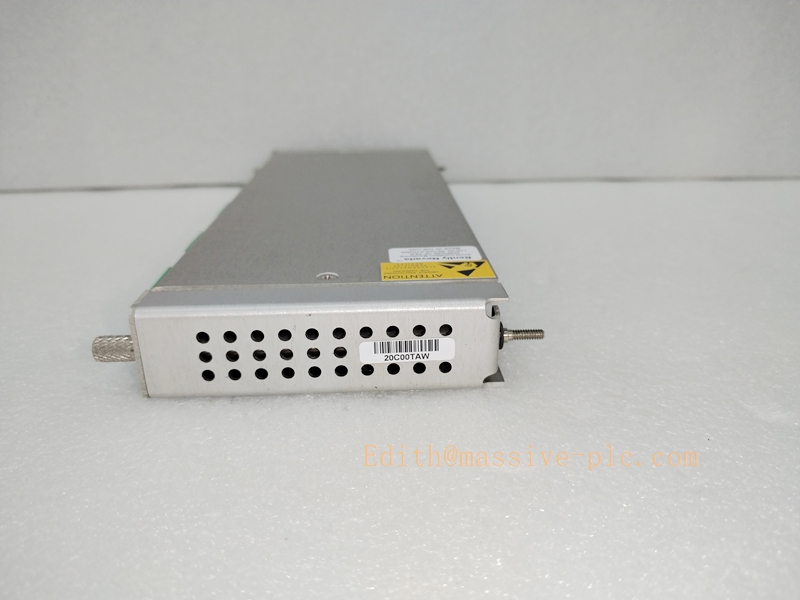

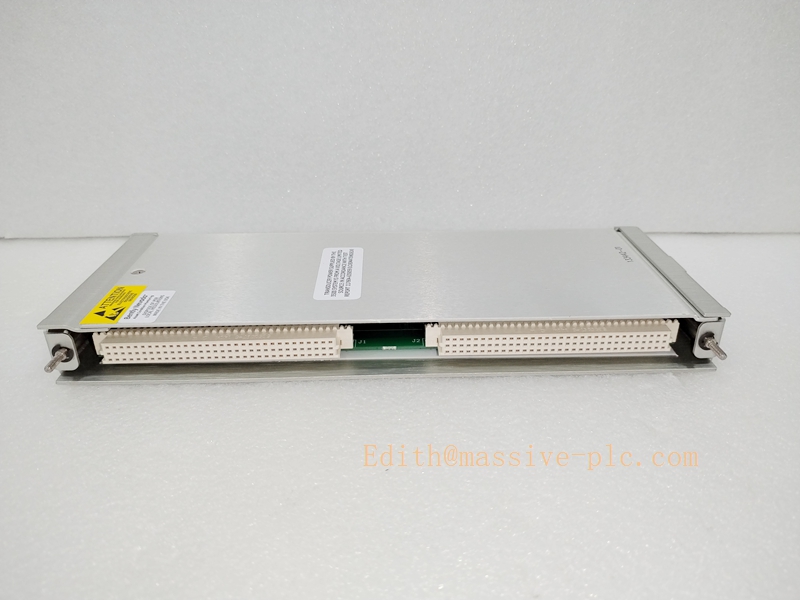

350050 133442-01

Core Technical Parameters

Main Product Features

3.1 Mature and Stable Speed Measurement Performance

The 3500/50 (133442-01) adopts mature and verified pulse sampling and frequency conversion algorithms, with stable and reliable measurement performance after long-term industrial field verification. It supports full-range speed detection from complete equipment standstill to high-speed operation, with accurate data output and low sampling error. The classic circuit design effectively adapts to conventional industrial operating conditions, ensuring continuous and stable speed monitoring for rotating machinery without data jitter or drift.

3.2 Dual Independent Redundant Monitoring Channels

The module is equipped with two physically isolated and electrically independent monitoring channels, which can realize dual redundant speed signal acquisition for a single rotating device or simultaneous speed monitoring of two independent equipment sets. Each channel supports separate parameter configuration, signal processing and fault judgment, forming a dual verification protection mechanism. It effectively avoids monitoring failure caused by single-channel abnormality and improves the overall reliability of machinery speed protection loops.

3.3 Complete Machinery Safety Protection Mechanism

Integrating multiple core protection functions, the 133442-01 module supports adjustable overspeed alert, critical overspeed trip, zero-speed standstill interlock and acceleration/deceleration anomaly monitoring. It can accurately capture abnormal operating states such as equipment overspeed runaway, sudden speed drop and abnormal startup, and output standard hardwired trip signals to trigger system interlock shutdown. This prevents mechanical failures such as blade collision, bearing burnout and equipment overload damage, ensuring safe operation of core rotating equipment.

3.4 Comprehensive Full-Loop Fault Self-Diagnosis

This module supports full-link real-time self-diagnosis covering field sensors, wiring circuits and internal hardware. It can accurately identify common faults including sensor disconnection, signal attenuation, pulse distortion and internal circuit failure, and generate standard fault codes and operation logs. The diagnostic data can be uploaded to the upper monitoring system in real time, helping maintenance personnel quickly locate faults and eliminate hidden dangers, ensuring the integrity and availability of the speed protection system.

3.3 Strong Industrial Environmental Adaptability

Adopting industrial-grade components and standardized EMC anti-interference design, the 133442-01 revision has excellent adaptability to conventional industrial environments. It can resist on-site electromagnetic interference, slight vibration and power fluctuation, ensuring stable signal acquisition and accurate data output in factory workshops and field equipment rooms. It supports 24/7 long-term continuous operation and meets the continuous monitoring requirements of industrial production equipment.

3.6 Simple Configuration and Low Operation Cost

All monitoring parameters, alarm thresholds and protection logic of the module can be remotely configured, calibrated and adjusted through the official 3500 system software. It supports real-time data viewing, historical trend recording and fault log query, facilitating daily equipment condition analysis and troubleshooting. Adopting standard rack plug-and-play installation, the module is easy to install, replace and debug, effectively reducing system operation and maintenance costs.

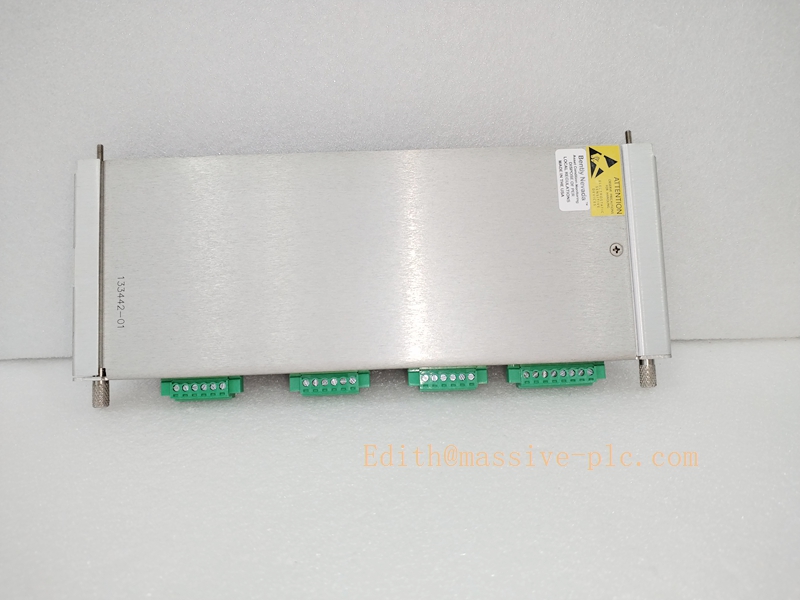

350050 133442-01

Specific Application Scenarios

The Bently Nevada 3500/50 (133442-01) speed monitor module is widely used in industrial machinery safety protection systems, focusing on speed monitoring and overspeed protection of core rotating equipment in thermal power, petrochemical, natural gas and coal chemical industries.

Typical Industrial Application Scenarios:

• Steam & Gas Turbine Protection: Real-time speed monitoring and overspeed trip protection for power generation turbines to prevent runaway faults and major mechanical safety accidents.

• Industrial Compressor Monitoring: Speed feedback detection and zero-speed interlock control for petrochemical and natural gas centrifugal compressors, ensuring safe start-stop and interlock logic execution.

• Large Fan & Pump Equipment Supervision: Abnormal speed alarm and fault monitoring for large auxiliary rotating equipment to avoid overload operation and equipment damage.

• Equipment Maintenance Safety Interlock: Zero-speed standstill detection to confirm equipment static state, providing safety locking basis for equipment maintenance and personnel operation.

• 3500 System Spare Part Replacement: The classic universal revision for old 3500 system maintenance and spare part replacement, perfectly matching legacy system hardware and software.

Supporting Components

The 3500/50 (133442-01) forms a complete industrial speed monitoring and protection system with standard Bently Nevada 3500 series supporting accessories:

• 3500/05 System Rack: Standard system chassis, providing unified mechanical installation and backplane bus communication interface.

• 3500/15 Power Supply Module: Redundant system power supply unit to ensure stable and uninterrupted operation of the monitoring module.

• 3500/22 Transient Data Interface: Realizing system data upload, remote configuration and docking with upper monitoring platform.

• Magnetic Pickup Speed Sensor: Special field sensor for collecting rotating shaft speed pulse signals.

• Standard Proximity Probe Assembly: High-precision probe for speed and phase signal acquisition of high-speed rotating shafts.

• Shielded Signal Cables & Terminal Boards: Anti-interference wiring accessories to ensure stable and distortion-free signal transmission.

Related Series Models & Version Comparison

The 3500/50 133442-01 is a classic standard revision of the 3500 speed monitoring series, with clear iteration and matching relationships with other versions and functional modules:

• 133442-01 (Classic Standard Version): Mature stable revision, widely used in traditional 3500 systems, suitable for conventional industrial monitoring scenarios and old equipment replacement.

• 133388-01 / 133388-02 (Legacy Versions): Early old revisions, gradually replaced by 133442-01 in medium-term system upgrades.

• 288062-02 (Latest Upgraded Version): New-generation enhanced revision with stronger anti-interference and higher stability, used for new high-standard projects.

• 3500/40 Proximity Monitor Module: Shaft vibration and displacement monitoring module, matched with 3500/50 to form complete turbomachinery condition protection system.

• 3500/42 Vibration Monitor Module: Bearing and casing vibration monitoring unit, cooperating with speed data to realize multi-dimensional equipment fault analysis.

• 3500/53 Zero Speed Monitor: Professional zero-speed enhanced module for ultra-strict static interlock and maintenance safety scenarios.

• 3500/60 Temperature Monitor Module: Equipment temperature monitoring module, realizing joint multi-parameter safety protection for rotating machinery.
