Bently Nevada 3500/45 (176449‑04) Position Monitor Mainboard

Description

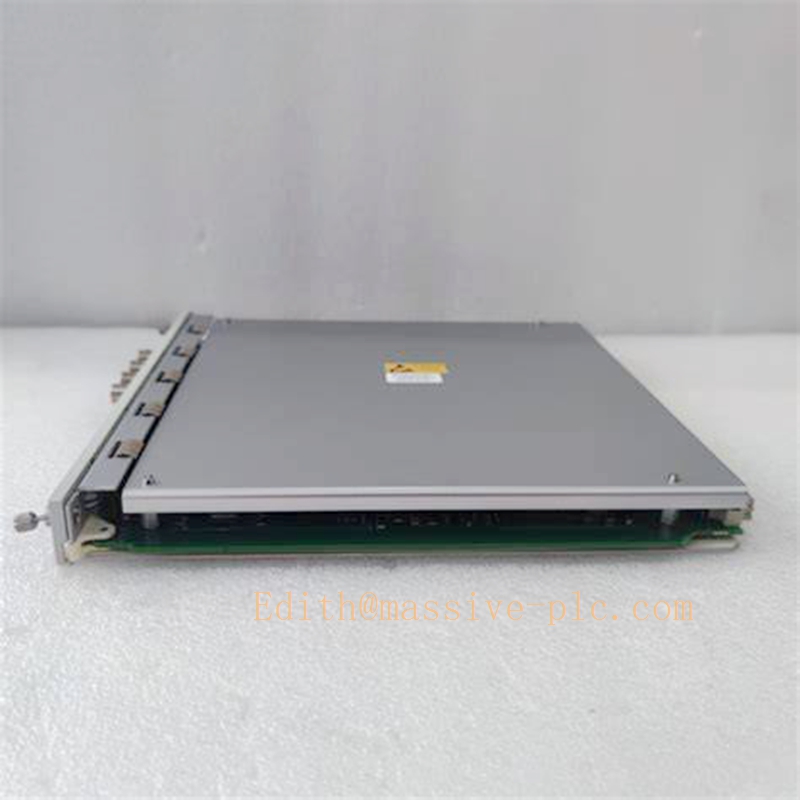

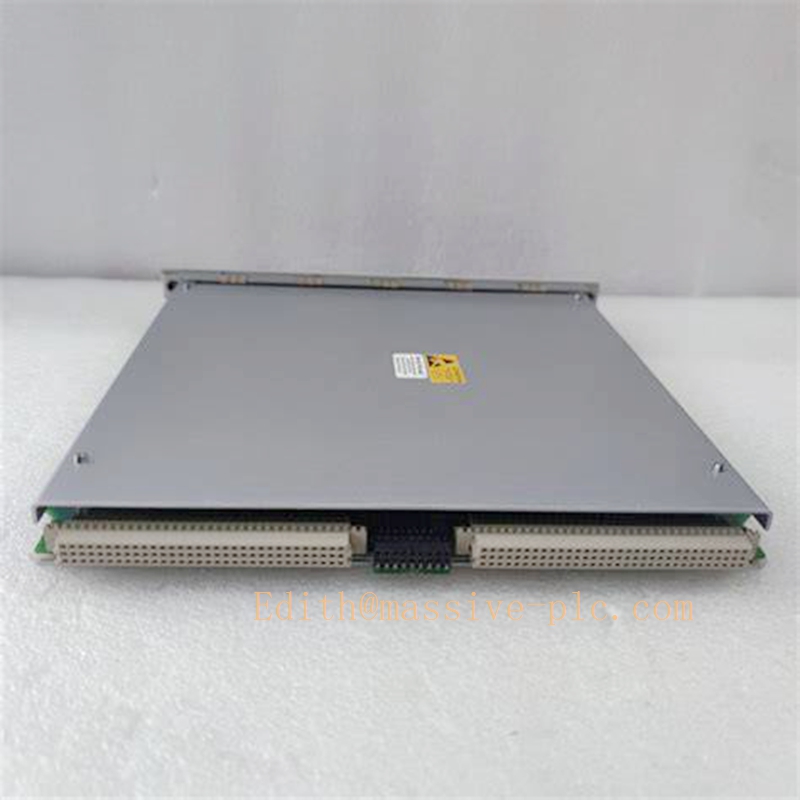

Bently Nevada 3500/45 (176449‑04) Position Monitor Mainboard

350045 176449-04

Product Introduction

176449‑04 is the updated‑revision front‑plug processing mainboard for the Bently Nevada 3500/45 Position Monitor, belonging to the 3500 TSI machinery protection system. It serves as the form‑fit‑function drop‑in replacement for older revision 140072‑04, maintaining full mechanical, software and functional compatibility with no cabinet‑level modification required during upgrade or spare‑part replacement.

This 4‑channel monitor processes signals from eddy‑current proximity probes, Rotary Position Transducers (RPT), AC/DC LVDTs and rotary potentiometers. It performs axial thrust position, differential expansion, case expansion and valve‑stroke position measurement for steam turbines, gas turbines and large rotating machinery, providing alarm output and protection interlock. Compliant with API‑670 and SIL‑2 capable, it delivers critical machinery protection and condition‑monitoring functions. It cannot operate standalone and must mate with matched position‑type rear I/O assembly and 3500‑series rack power supplyBaker Hugh….

Note: This module is dedicated for position‑displacement measurement, not for vibration monitoring. Multimode function is not supported; multimode‑series I/O assemblies (169459‑xx /169715‑xx) are incompatible.

Typical Applications ‑ Thrust bearing axial‑position monitoring and protection for steam / gas turbine units ‑ Rotor‑to‑case differential‑expansion measurement ‑ Turbine casing absolute expansion monitoring ‑ Valve stroke and actuator position acquisition via LVDT / RPT transducers ‑ Over‑position alarm and relay‑based protection interlock ‑ Transmit real‑time position data to DCS, PLC or 3500 display system over rack backplane bus

350045 176449-04

Technical Specifications

Important Remark: Direct drop‑in substitute for 140072‑04. Multimode‑type rear I/O assemblies cannot be used. No on‑board intrinsic‑safety barriers; hazardous‑area sensors require external certified IS barriers.

Key Features

1. Multi‑parameter position‑monitoring algorithm: covers thrust position, differential expansion, casing expansion and valve‑stroke position for heavy‑duty turbine equipment.
2. Differential‑expansion calculation function: computes relative thermal expansion between rotor and casing using dual‑channel input signals.
3. Multi‑transducer compatibility: supports proximity probes, LVDTs and RPT sensors; sensor type, sensitivity and measurement ranges fully configurable by 3500 Rack Configuration Software.
4. Hot‑swap capability: module replacement without shutting down the entire 3500 rack.
5. Dual‑level Alert / Danger alarm outputs with configurable time delay for protection‑relay interlock logic.
6. Comprehensive built‑in diagnostics: transducer open‑circuit / short‑circuit detection, hardware self‑test, time‑stamped event log stored in non‑volatile memory.
7. Front‑panel BNC buffered recorder outputs for on‑site signal debugging and verification.
8. Updated hardware revision, backward‑compatible, direct replacement for legacy 140072‑04 without hardware or software modification.
9. High‑EMI‑immunity industrial hardware design, adapted to harsh power‑plant environments.

350045 176449-04

Adaptive Quality Assurance and Test Protocol (AQAT)

4.1 Factory‑Side Adaptive QA Test

‑ Power‑on self‑diagnostic verification: validate hardware self‑test status and rack backplane‑bus communication. ‑ Channel‑wise signal‑injection test: simulate proximity displacement, LVDT and RPT input signals, verify reading accuracy within tolerance range. ‑ Differential‑expansion function test: simulate dual‑channel displacement inputs to validate calculated differential‑expansion value. ‑ Alarm‑threshold verification: simulate over‑limit input signals, validate Alert / Danger alarm trigger and relay‑output action. ‑ Transducer‑fault simulation: open‑circuit / short‑circuit simulation to confirm fault‑alarm reporting. ‑ Powered temperature‑cycling burn‑in screening to eliminate early‑life failure risk. ‑ Generate formal factory test report prior to shipment.

4.2 Site‑Side Adaptive QA Procedure

‑ Installation Qualification (IQ): verify full mechanical locking between mainboard and matched rear I/O assembly; inspect rack grounding, analog‑power cable separation. For hazardous‑area projects, verify external IS‑barrier configuration. ‑ Operational Qualification (OQ): inject simulation signals at field‑terminals; cross‑validate position readings, differential‑expansion calculation results, alarm‑trigger consistency and DCS data display. ‑ Performance Qualification (PQ): monitor under real turbine operating conditions; compare module readings with reference‑instrument data. ‑ Adaptive retest: execute full‑channel verification after module replacement, cable modification or configuration download; archive test records for audit traceability.

All test documentation shall be retained for asset‑management and audit purposes.

Field Engineer Technical Instructions

5.1 Installation Guidance

‑ Insert 3500/45 (176449‑04) front‑plug module into vacant slot of 3500 rack; fasten front‑panel latches to achieve full mechanical locking with rear‑side I/O assembly. ‑ Select matched rear‑I/O: 140471‑01 (internal screw‑type termination) or 140482‑01 (external ribbon‑cable termination). Multimode‑series I/O assemblies are not compatible. ‑ Route proximity‑probe / LVDT cables separately from high‑voltage power cables, follow maximum transducer‑cable‑length specifications. ‑ For hazardous‑area field‑sensors: install certified external intrinsic‑safety barriers, comply with local explosion‑proof wiring specifications. ‑ Follow site grounding specification: separate analog‑signal grounding from high‑power‑equipment grounding to minimize noise‑coupling interference.

5.2 Commissioning

‑ Complete mechanical installation of mainboard, rear‑I/O assembly and all field‑sensor wiring. ‑ Launch 3500 Rack Configuration Software, select module type 3500/45, configure transducer type, sensitivity, measurement range, Alert / Danger alarm setpoints and delay parameters. ‑ Enable differential‑expansion function if required, assign corresponding channel‑pairs in software. ‑ Download configuration to mainboard and perform module reset to activate parameters. ‑ Check raw measured values; perform alarm‑forcing test, confirm relay‑output action and DCS / HMI display consistency.

5.3 Typical Field Troubleshooting

‑ Transducer‑fault alarm: Inspect field‑cable open‑circuit / short‑circuit faults, terminal‑screw torque, transducer health condition. ‑ Incorrect position / expansion readings: Confirm software‑configured transducer‑sensitivity matches physical sensor; check grounding and EMI interference; inspect cable integrity. ‑ Differential‑expansion calculation error: Verify correct channel‑pair assignment inside configuration software. ‑ Communication loss: Confirm mainboard latches are fully locked; inspect rack backplane health and system‑controller operating status.

Warning: Bypass protection alarms only for short‑duration maintenance work. Restore full‑protection function before turbine unit returns to normal‑operation status.

5.4 Maintenance

‑ Observe front‑panel LED‑status indicators of 3500/45 mainboard during regular site inspection rounds. ‑ No user‑serviceable internal components; do not disassemble module housing. ‑ Keep complete configuration‑backup file for fast hardware replacement during future failure events.
