BENTLY NEVADA 3500/34 XDUCER I/O RECORD TERMINALS ALARM RELAY OUTPUTS 81546-01

Description

81546-01 (ASSY 79748-01) Bently Nevada XDCR I/O Record Terminals & Alarm Relay Outputs Full Specification

Product Description

The Bently Nevada 81546-01 (Assembly Part No. 79748-01) is a dedicated XDCR I/O record terminal and alarm relay output interface board designed for the Bently Nevada 3500 machinery protection system. Serving as the physical signal termination and relay output expansion accessory for 3500/34 TMR relay modules, this terminal board standardizes field wiring connection for transducer (XDCR) input signals, machinery condition recording points, and system alarm/trip relay outputs. It bridges the gap between rack-mounted safety modules and on-site field devices, enabling centralized, standardized, and maintainable signal termination.

Engineered for heavy-duty continuous industrial operation, the 81546-01 board integrates precision signal terminal blocks and hermetic alarm relay output circuits. It supports reliable termination of vibration, displacement, and expansion transducer signals, while providing isolated dry contact outputs for system alarm and trip interlocks. Optimized for power, petrochemical, and oil & gas machinery protection scenarios, it ensures stable signal recording, accurate relay output execution, and excellent electromagnetic compatibility in harsh industrial environments, fully complying with API 670 machinery protection specifications.

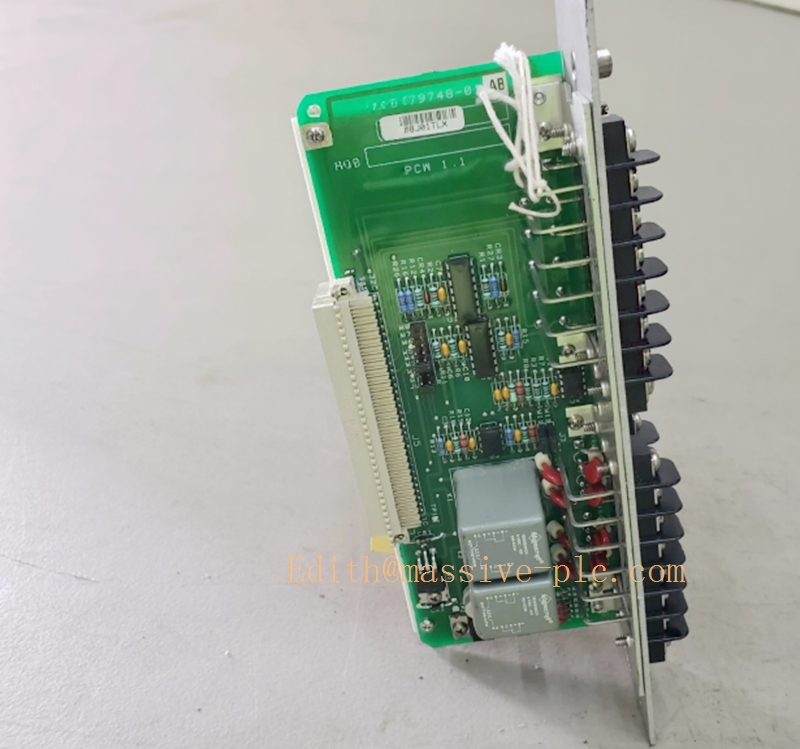

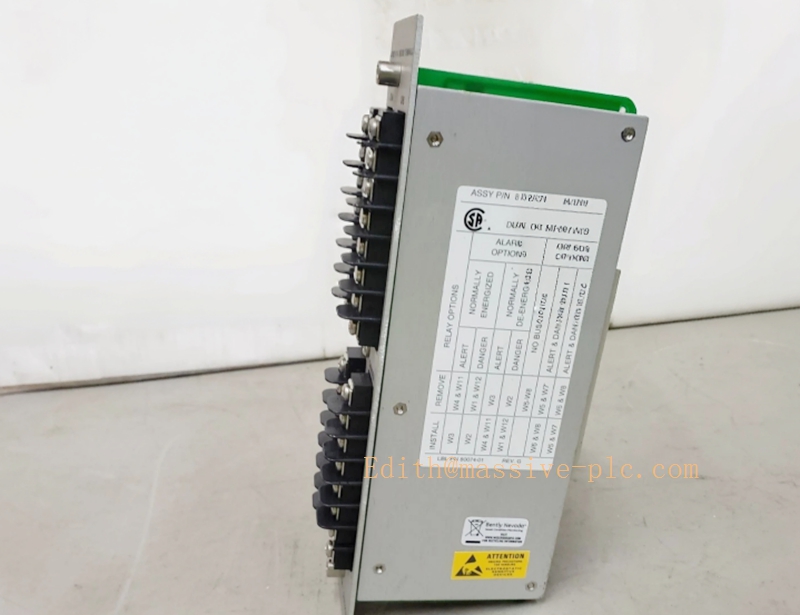

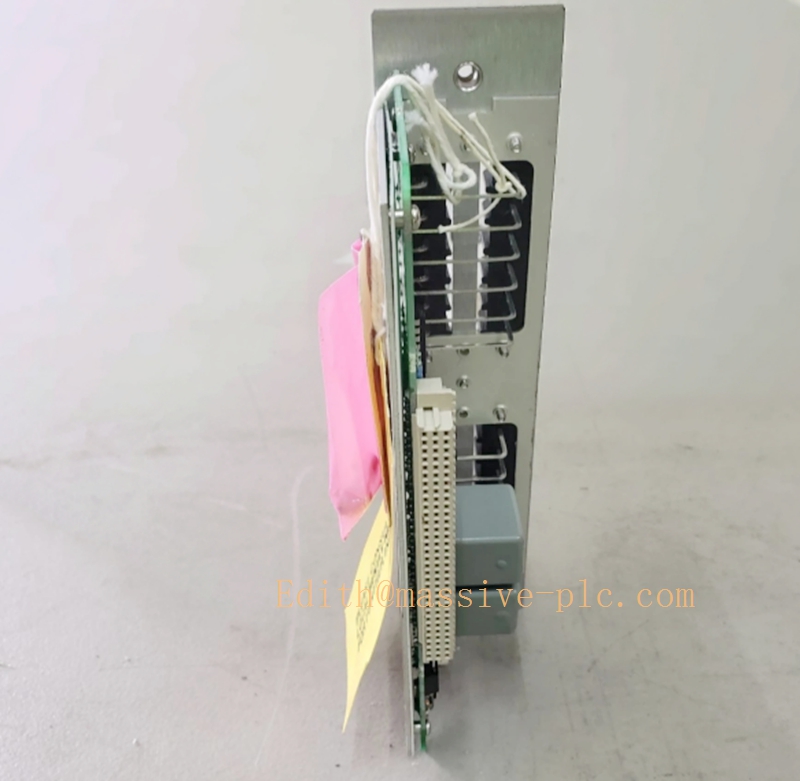

3500/34 81546-01

Core Technical Specifications

Key Features & Competitive Advantages

3.1 Core Features

• Integrated XDCR I/O & Relay Output Design: Combines transducer signal termination, machinery operating data recording interface, and alarm relay output functions in a single board, realizing one-stop signal access and protection output management for 3500 system.
• Hermetic Sealed Relay Configuration: Adopts industrial hermetic dual relays with stable contact performance, effectively resisting dust, humidity and oxidation, ensuring long-term reliable action of alarm and trip signals.
• Standardized Centralized Termination: Equipped with standardized screw terminal blocks for all field XDCR signals and relay loop circuits, simplifying scattered field wiring and facilitating unified circuit inspection and maintenance.
• Perfect Matching with 3500/34 Module: Custom-tailored for 3500/34 TMR relay output modules, achieving seamless signal docking, consistent logic synchronization and accurate protection output execution.
• Multi-Parameter Signal Compatibility: Supports termination and transmission of vibration, shaft displacement, differential expansion and other core machinery monitoring signals, covering full-condition monitoring scenarios of rotating equipment.
• Industrial-Grade Anti-Interference Performance: Optimized circuit layout and shielding design suppress on-site EMI interference, ensuring no signal drift or relay misoperation in high-noise industrial environments.

3.2 Product Advantages

• High System Matching Accuracy: Dedicated accessory for 3500 relay protection system, avoiding signal mismatch and logic disorder caused by non-standard terminal accessories, ensuring 100% system protection integrity.
• Superior Long-Term Operational Stability: Hermetic sealed relay structure and anti-corrosion circuit design eliminate contact aging and signal failure risks, adapting to 24/7 continuous industrial operation.
• Greatly Simplified On-Site O&M: Centralized terminal design sorts out messy field wiring, reducing wiring errors, shortening system debugging cycle, and lowering daily maintenance difficulty.
• Low Failure & False-Trip Rate: Precision circuit processing and stable relay performance ensure accurate response of alarm and trip signals, avoiding nuisance trips and protection missing faults.
• Strong Retrofit Compatibility: Fully compatible with all legacy and new 3500 rack systems, serving as a standard replacement accessory for old terminal boards in system renovation and spare part renewal projects.

Typical Application Fields

The 81546-01 XDCR I/O record terminal and relay output board is a core supporting accessory for 3500 machinery safety protection systems, widely used in high-reliability industrial rotating equipment monitoring scenarios:

• Thermal & Gas Power Plants: Signal termination and alarm relay output for turbine, generator and auxiliary fan vibration and displacement monitoring systems.
• Petrochemical & Refinery Facilities: Field signal access and safety interlock output for large compressors, process pumps and high-speed rotating process equipment.
• Oil & Gas Onshore/Offshore Projects: Standardized wiring and protection signal execution for machinery safety monitoring systems in harsh offshore and field environments.
• Metallurgy & Heavy Industry: Signal recording and alarm output matching for large rolling mills and industrial high-power rotating equipment protection systems.
• SIL Safety Critical Systems: Provides stable and reliable terminal guarantee for high-integrity safety protection loops requiring zero signal failure.
• 3500 System Upgrade & Maintenance: Standard universal spare terminal board for daily maintenance, fault replacement and system function upgrade of existing 3500 protection systems.

Technical Pitfalls to Avoid

• Mismatched Module Combination: The 81546-01 is exclusively matched with 3500/34 relay modules. Mismatching with other 3500 series monitor modules will cause signal docking failure and abnormal relay output.
• Non-Standard Wiring Termination: Confusing XDCR signal terminals and relay output terminals will lead to signal short circuit, data recording failure or protection logic reversal.
• Overload Relay Contact Usage: Exceeding the rated voltage and current of relay contacts will cause contact ablation, adhesion and permanent failure, resulting in invalid alarm and trip output.
• Poor Shielding & Grounding: Unstandardized shielding grounding of XDCR signal cables will introduce EMI interference, causing monitoring signal drift and intermittent relay misoperation.
• Ignoring Terminal Tightness Inspection: Loose terminal wiring caused by long-term equipment vibration will lead to intermittent signal disconnection, data loss and protection loop instability.
• Harsh Environment Over-Service: Long-term operation in humid, dusty and corrosive environments without cabinet protection will accelerate terminal oxidation and circuit aging.
• Blind Cross-Model Replacement: Replacing with non-original terminal boards of different specifications will cause pin definition mismatch and destroy the original system protection logic.

Related Product Recommendations

• Bently Nevada 3500/34 TMR Relay Output Module: Core matching host module, cooperating with 81546-01 terminal board to complete alarm and trip protection output functions.
• Bently Nevada 3500/33 Vibration Monitor Module: Front-end signal acquisition module, providing monitoring data source for XDCR signal termination and recording of 81546-01 board.
• Bently Nevada 3500/20 Rack Interface Module: System communication scheduling unit, ensuring synchronous and stable data transmission between rack modules and terminal board.
• Bently Nevada 3500/15 Power Supply Module: Redundant power supply unit providing stable working power for terminal board and relay output loops.
• 3300 Series XDCR Proximity & Velocity Sensors: Field transducer devices, providing original vibration and displacement signals for terminal board termination and recording.
• Shielded Twisted-Pair Signal Cables: Special anti-interference wiring accessories to ensure stable transmission of XDCR signals and avoid external noise interference.

Installation Guidelines

• Standard Cabinet Installation: Install the 81546-01 terminal board in a sealed, dust-proof and temperature-controlled industrial cabinet, avoiding direct contact with corrosive gas, oil pollution and strong mechanical vibration.
• Strict Terminal Classification Wiring: Distinguish XDCR input signal terminals and alarm relay output terminals strictly during wiring; separate weak signal cables and strong electric control cables to prevent cross-interference.
• Standard Shielding Grounding: Implement single-point standardized grounding for all signal cable shielding layers to eliminate ground loop interference and ensure accurate signal collection.
• Reliable Wiring Fixation: Fasten all terminal screws tightly after wiring to prevent loose contacts caused by long-term equipment vibration, ensuring stable signal and loop connection.
• Pre-Operation Functional Verification: After installation, complete signal continuity test, relay action simulation and logic verification to confirm that data recording and alarm/trip output functions are normal.

Daily Maintenance Guidelines

• Routine Terminal Inspection: Regularly check terminal block tightness, wire aging status and board surface cleanliness; clean dust and oil stains quarterly to ensure unobstructed signal transmission.
• Periodic Relay Function Test: Conduct regular simulation tests on alarm and trip relay output functions to verify sensitive and accurate contact action without jitter or stagnation.
• Signal Accuracy Calibration: Regularly calibrate XDCR signal recording accuracy to prevent terminal oxidation and circuit drift from causing monitoring data deviation.
• Environment Maintenance: Keep the installation cabinet dry and ventilated, avoid humid condensation and high-temperature over-limit operation to delay circuit and relay aging.
• Spare Parts Management: Store standby 81546-01 boards in constant-temperature dry environment; perform regular power-on tests to ensure complete functional availability for emergency replacement.
