Bently Nevada 3500/33 (149986‑01) 16‑Channel Relay Control Module

Description

Bently Nevada 3500/33 (149986‑01) 16‑Channel Relay Control Module

Product Description

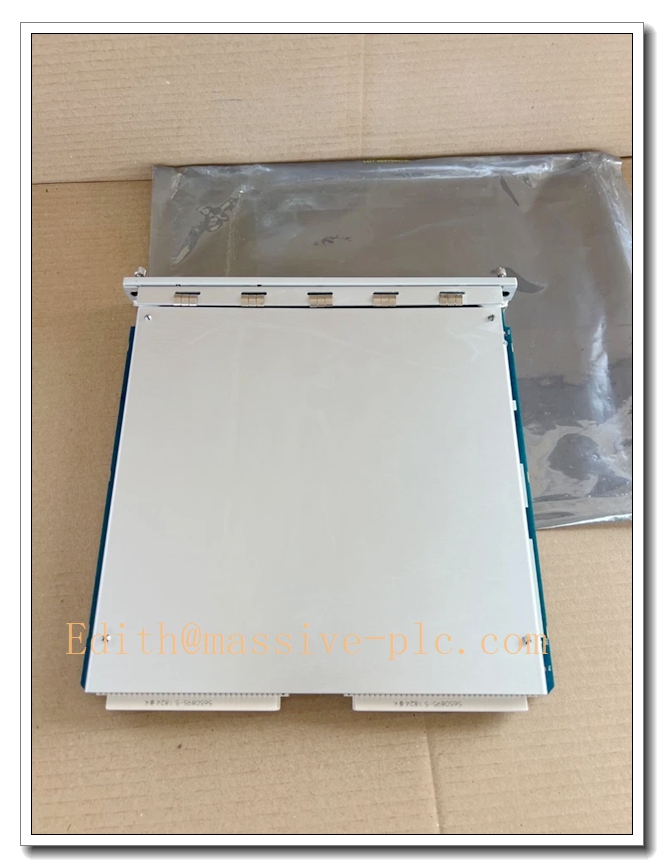

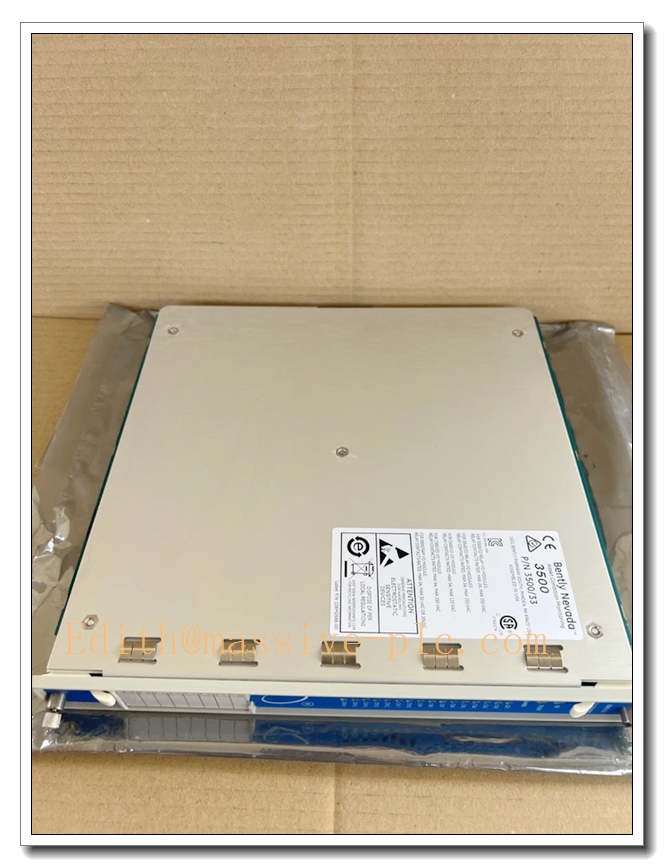

The 149986‑01 is the front‑plane control board for the Bently Nevada 3500/33 16‑channel relay module within the 3500 machinery‑protection platform本特利. It must work paired with the matching rear I/O output assembly 149992‑01 to form a complete relay unit. This module receives alarm and status signals from other monitor modules over the 3500 rack backplane bus, executes user‑defined boolean voting logic, and drives dry‑contact SPDT relay outputs. It serves as the hardware interface between the 3500 monitoring rack and external plant systems, including annunciator panels, DCS, PLC, emergency shutdown circuits and local alarm indicators, delivering alarm notification and machinery‑trip interlock functions for critical rotating assets.

149986‑01

Technical Specifications

Main Features and Advantages

Key Features

1. Sixteen‑channel SPDT dry‑contact relay outputs, supporting flexible channel pairing to realize virtual DPDT contact behaviour for high‑reliability trip circuits.
2. Four‑group hardware‑selectable energization modes: each group can be set to normally‑energized or normally‑de‑energized for different safety‑circuit design requirements.
3. Powerful programmable voting logic: each relay can be triggered by any combination of Alert, Danger, hardware fault and bypass signals coming from all monitor modules in the same rack. AND‑logic and OR‑logic are fully supported.

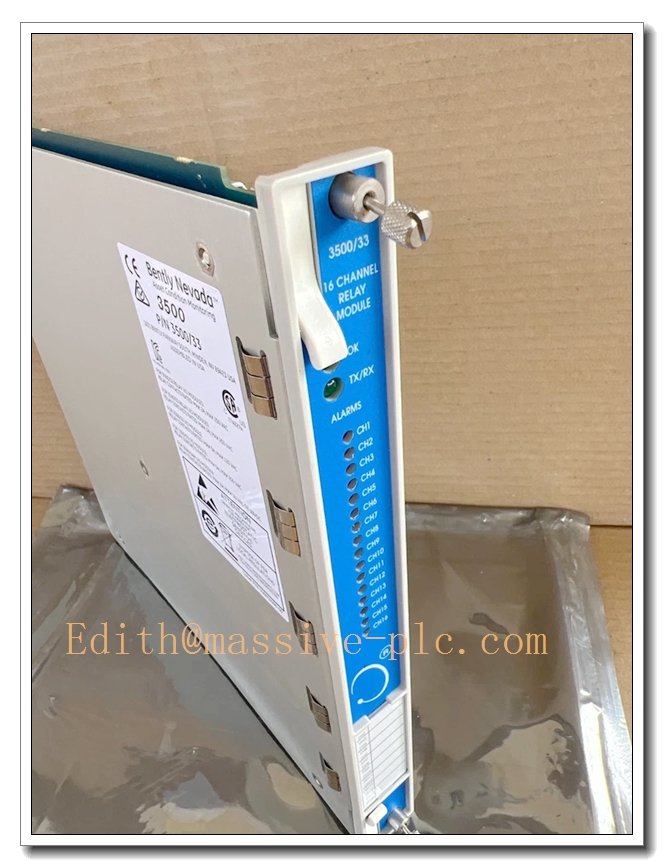

4. Hot‑swap capability: front‑plane module can be replaced without powering down the whole 3500 rack. Front‑panel LED indicators display module health, relay status and fault information for rapid on‑site diagnostics.
5. High‑voltage galvanic isolation between relay field contacts and rack internal backplane bus, preventing ground‑loop noise and isolating plant‑side fault energy from the monitoring system.
6. Multiple 3500/33 modules can be deployed within one rack to expand relay output capacity for large‑scale multi‑machine protection systems.
7. Seamless interoperability with all 3500 series monitor modules (vibration, temperature, process‑variable monitors).

Core Advantages

• Consolidates large‑volume alarm and trip‑contact outputs within the 3500 rack, eliminating external auxiliary relay cabinets and reducing overall system footprint and hardware cost.
• Supports both warning‑annunciation and safety‑trip‑circuit applications, complying with API 670 turbo‑machinery protection standards.
• Flexible logic configuration adapts to various plant safety‑design philosophies, covering de‑energized‑to‑trip and energized‑to‑trip schemes.
• Hot‑swap maintainability minimizes plant downtime during module repair or replacement.
• Electrical isolation protects the sensitive TSI monitoring electronics from field‑side surge and short‑circuit risks.

Application Fields

• Oil & Gas: centrifugal compressors, gas turbines, steam turbines; relay outputs for ESD shutdown, bearing‑vibration alarm and annunciator‑panel signalling.
• Power Generation: thermal‑power and combined‑cycle power plants; turbine‑generator safety interlock, bearing‑condition alarm and fault‑status transmission to DCS systems.
• Petrochemical: turbo‑expanders, large process pumps, blowers and gearboxes; machinery‑protection alarm and trip‑logic execution.
• Heavy Industry: steel, cement and mining facilities for large‑size critical rotating‑machinery alarm interlock.
• General industrial rotating equipment: converting digital monitor‑system status into hard‑wired dry‑contact signals for safety instrumented systems and local alarm devices.

Related Product Recommendations

1. 149992‑01: Matching rear relay‑output I/O assembly, must be paired with 149986‑01 for complete 3500/33 function本特利.
2. 3500/32M: 4‑channel relay monitor module, for high‑priority direct safety‑trip loops with fewer contact requirements.
3. 3500 system rack accessories: 3500/05 rack chassis, 3500/15 redundant power supply, 3500/92 communication gateway.
4. Companion monitor modules: 3500/42M vibration monitor, 3500/61 temperature monitor, 3500/62 process‑variable monitor, providing alarm source signals driving the 3500/33 relays.

Installation and Maintenance

Installation

1. Assemble 149986‑01 front control module with matched 149992‑01 rear I/O assembly, insert the full unit into a full‑height slot located to the right of the TDI module in the 3500 rack, tighten the front‑panel locking screws.

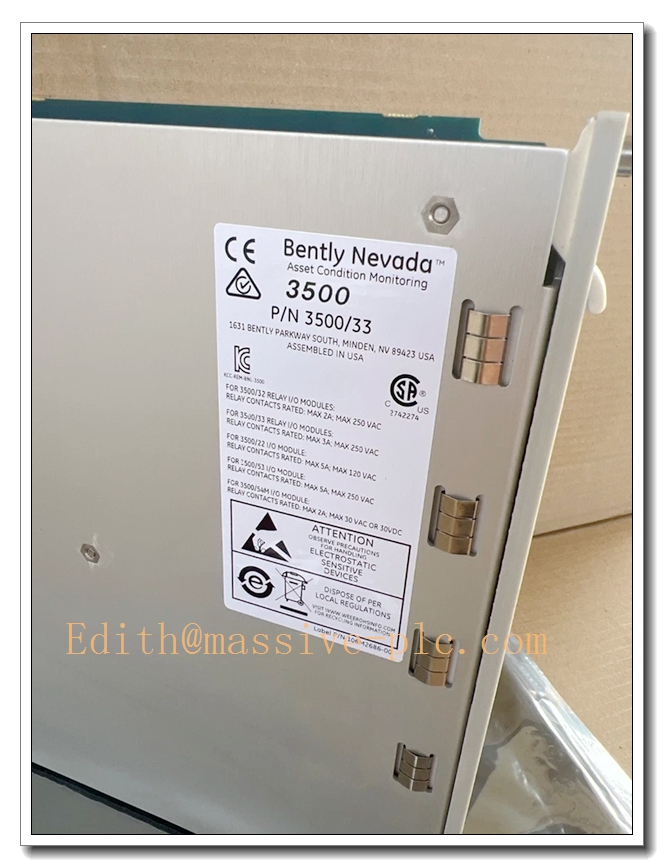

2. Wire external field circuits (annunciators, trip solenoids, DCS discrete inputs) to terminals on the 149992‑01 rear assembly. Strictly observe relay contact current‑and‑voltage rating limits; do not overload relay contacts.
3. Set hardware DIP switches on rear assembly to select normally‑energized / normally‑de‑energized mode for each four‑channel group according to project safety‑design requirements.
4. Launch 3500 Rack Configuration Software, define voting‑logic conditions for each relay channel, assign trigger sources from corresponding monitor‑module alarm status, download configuration to rack backplane.
5. Verify front‑panel LED status: solid OK light indicates normal module operation. Perform full‑function relay simulation test to validate alarm‑trigger and trip‑contact performance before system commissioning.

Maintenance

1. Hot‑swap replacement is supported: set related alarm channels to bypass status before extracting the module assembly; insert a complete matched set of new 149986‑01 + 149992‑01; reload configuration parameters if needed; rack power‑off is not required.
2. Periodically inspect rear‑assembly wiring terminals for looseness, corrosion or oxidation; check contact load conditions to avoid over‑current damage to relay contacts.
3. Routinely monitor front‑panel LED indicators; investigate fault and abnormal relay‑status indications promptly.
4. Maintain rack ventilation; ensure operating temperature and humidity stay within rated specifications.
5. Conduct periodic functional test: simulate monitor‑module alarm conditions to verify correct relay‑actuation behaviour.
6. For defective hardware, return complete front‑rear assembly to authorized service channels; do not disassemble internal circuit boards on‑site.
