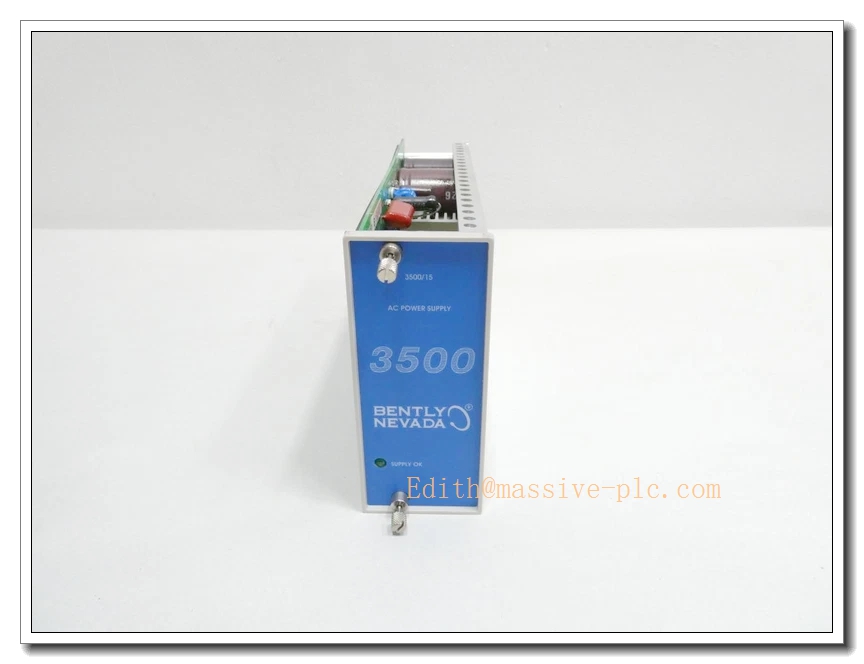

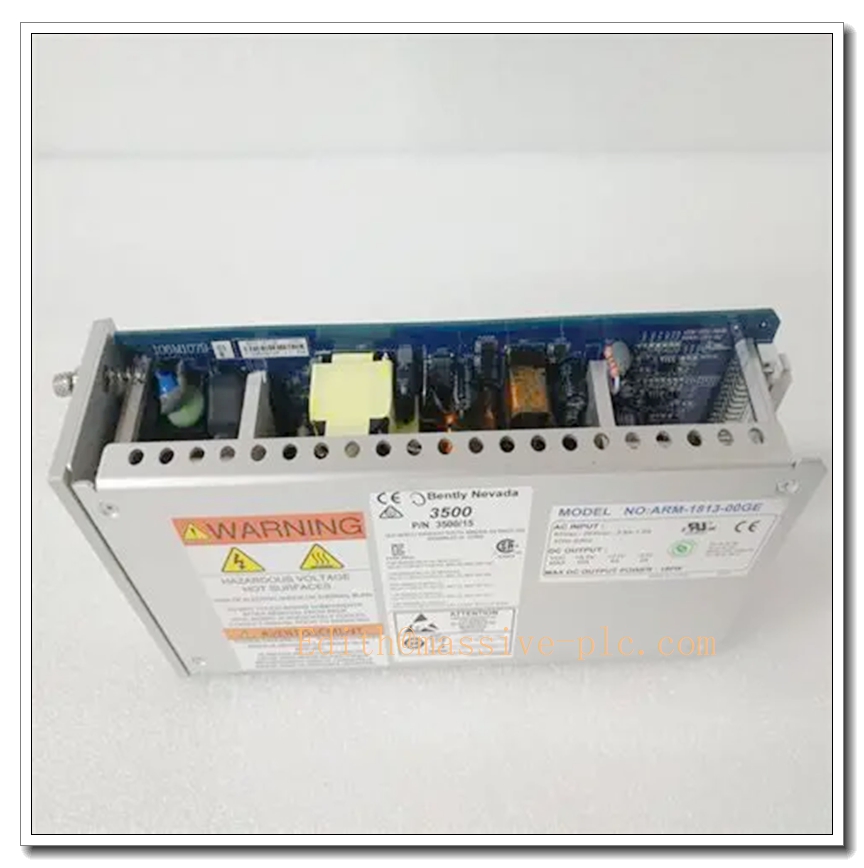

Bently‑Nevada 3500/15 127610‑99 AC Power Supply Main Module
Product Description
The 127610‑99 is a legacy half‑height main power‑supply board for the Bently‑Nevada 3500/15 power‑supply subsystem within the 3500 machinery‑protection rack. It is a variant of 127610‑01 high‑voltage AC main board, intended for aftermarket / service‑spare configurations. It must be mechanically coupled with rear‑mounted PIM daughter‑board 125840‑01 (High‑Voltage AC Power Input Module) to form a complete functional power‑supply assembly本特利（B…. This main board converts filtered high‑voltage AC input into multiple regulated DC power rails to feed the 3500 rack backplane for all monitor, communication and RIM modules. It cannot operate as standalone hardware. Original OEM manufacturing has been discontinued; it is available only as replacement spare for existing 3500 TSI installations.
127610-99
Technical Specifications
| Item | Specification |
|---|---|
| Part Number | 127610‑99 (AC power main board, service spare variant) |
| Matching Rear PIM Board | 125840‑01 (High‑Voltage AC Power Input Module) |
| Manufacturer | Bently‑Nevada (Baker Hughes) |
| Form Factor | Half‑height front‑panel module, installs in dedicated far‑left rack power slot |
| AC Input via PIM | 175‑264 VAC RMS, 47‑63 Hz |
| Maximum Total Output Power | 150 W for full‑rack loading |
| Backplane DC Outputs | +5 VDC, ±12 VDC, +24 VDC |
| Redundancy Support | 1+1 hot‑swap redundant architecture; single unit capable of powering complete rack |
| Hold‑up Time | 60 ms typical under full‑load condition |
| Internal Protection | Over‑voltage, over‑current, short‑circuit, over‑temperature, under‑voltage lockout |
| Diagnostic Indicator | Front‑panel “SUPPLY‑OK” LED; power‑fault status reported to rack RIM module |
| Operating Temperature | ‑30 °C ~ +65 °C (‑22 °F ~ +150 °F) |
| Storage Temperature | ‑40 °C ~ +85 °C (‑40 °F ~ +185 °F) |
| Relative Humidity | 5‑95 % RH, non‑condensing |
| Dimension | 120.7 mm × 50.8 mm × 251.5 mm (4.75 in × 2.0 in × 9.9 in) |
| Weight | 0.82 kg (1.81 lbs) |
| Product Status | Discontinued OEM production, aftermarket service spare only |
Assembly pairing note: 127610‑99(main board) + 125840‑01(PIM) = complete high‑voltage AC power‑supply unit Functionally interchangeable with standard 127610‑01 main board for spare‑part replacement purposes.
Key Features & Benefits
- High‑voltage AC power conversion: Designed for industrial 175‑264 VAC mains power, delivering stable multi‑rail regulated DC power for the entire 3500 rack backplane.
- 1+1 hot‑swap redundancy capability: Two complete power‑supply assemblies may run in parallel hot‑backup mode. Mixed AC‑DC redundant configuration within one rack is permitted. When redundant, one module can be hot‑swapped without interrupting machinery‑protection functions.
- Comprehensive fault protection suite: Built‑in over‑voltage, short‑circuit and over‑temperature protection prevents damage to downstream monitoring modules during plant power‑grid disturbances.
- System‑wide power‑fault diagnostics: Front‑panel SUPPLY‑OK local status indication; power‑failure diagnostic events are transmitted to RIM for centralized alarming and event‑log storage.
- Drop‑in backward compatibility: Form‑fit and function compatible with legacy 3500 rack hardware, existing monitor modules and system firmware revisions; no rack cabinet modification required during spare replacement.
- Robust industrial mechanical design: Half‑height rack‑native construction, optimized for continuous 24‑hour operation in power‑plant and petrochemical control‑cabinet environments.
Application Fields
- Machinery‑protection racks for steam turbines, gas turbines and centrifugal compressors in combined‑cycle power‑generation plants supplied with high‑voltage AC mains.
- Petrochemical refineries and natural‑gas processing facilities for critical rotating‑equipment TSI vibration‑monitoring cabinets.
- Heavy‑industry rotating‑machinery condition‑monitoring systems fed from 175‑264 VAC industrial power sources.
- Spare‑part replacement and hardware retrofit for legacy 3500 installations requiring high‑voltage AC power supply.
127610-99
Related Recommended Products
- 125840‑01: Matching rear high‑voltage AC PIM input module (mandatory mating part)
- 01720025: Replacement spare fuse for AC‑type PIM modules
- 127610‑01: Standard OEM high‑voltage AC main board (functional equivalent)
- 3500/20 (125744‑01): TMR Rack Interface Module for rack‑level communication and diagnostics
- 3500/25: Keyphasor timing‑reference module for shaft‑speed and phase‑angle measurement
- 3500/40M: Proximity and vibration monitor module for shaft‑vibration and thrust‑position protection
Installation and Maintenance
Installation
- Complete mechanical assembly first: firmly mount the 125840‑01 PIM onto the rear‑side connector of the 127610‑99 main power‑supply board before inserting into rack.
- Insert assembled power‑supply unit into the designated half‑height power slot located on the far‑left side of the 3500 rack.
- Wire site 175‑264 VAC field power to screw‑terminal block of 125840‑01; strictly comply with grounding and wiring specifications described in official Bently‑Nevada installation manual.
- For redundant configuration, install a second fully assembled power‑supply unit into the adjacent left‑side power slot; mixed AC‑DC redundancy is supported.
- After power‑on, inspect front‑panel “SUPPLY‑OK” LED status; verify power‑supply health status by 3500 rack configuration software.
Important Note: 127610‑99 cannot work as standalone hardware. Never apply AC power without proper mechanical connection to the matching 125840‑01 PIM.
Maintenance
- Perform periodic visual inspection: check PIM screw terminals and module housing for signs of over‑heating, dust accumulation or loose wiring connections.
- If PIM input fuse blows, locate and resolve root‑cause field‑power fault before installing replacement fuse PN 01720025. Never use over‑rated fuses.
- Hot‑swap maintenance is allowed for redundant‑power racks: defective full power‑supply assembly may be replaced without rack shutdown, on condition that the second healthy power‑supply remains operational.
- Avoid mechanical shock and conductive contamination to circuit boards during module handling and replacement.
- Refer to official 3500‑series power‑supply operation‑and‑maintenance manual (document 129767‑01) for complete fault‑isolation and troubleshooting guidance.
