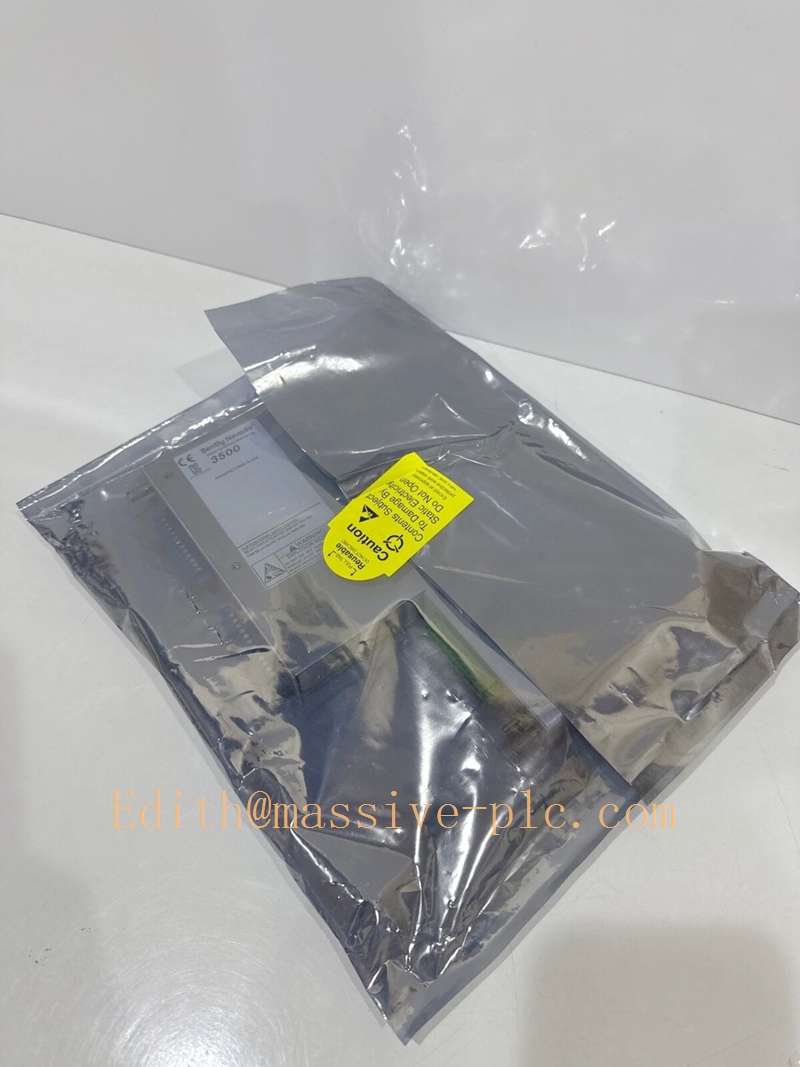

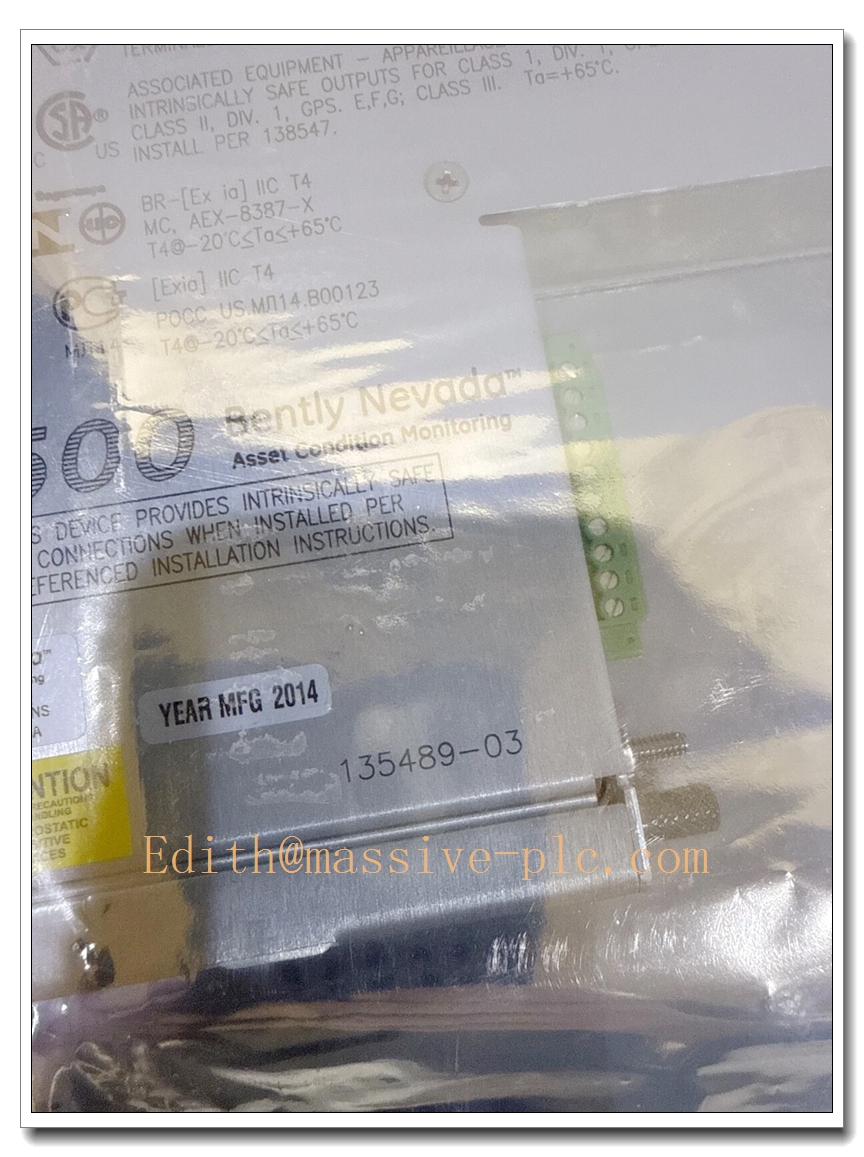

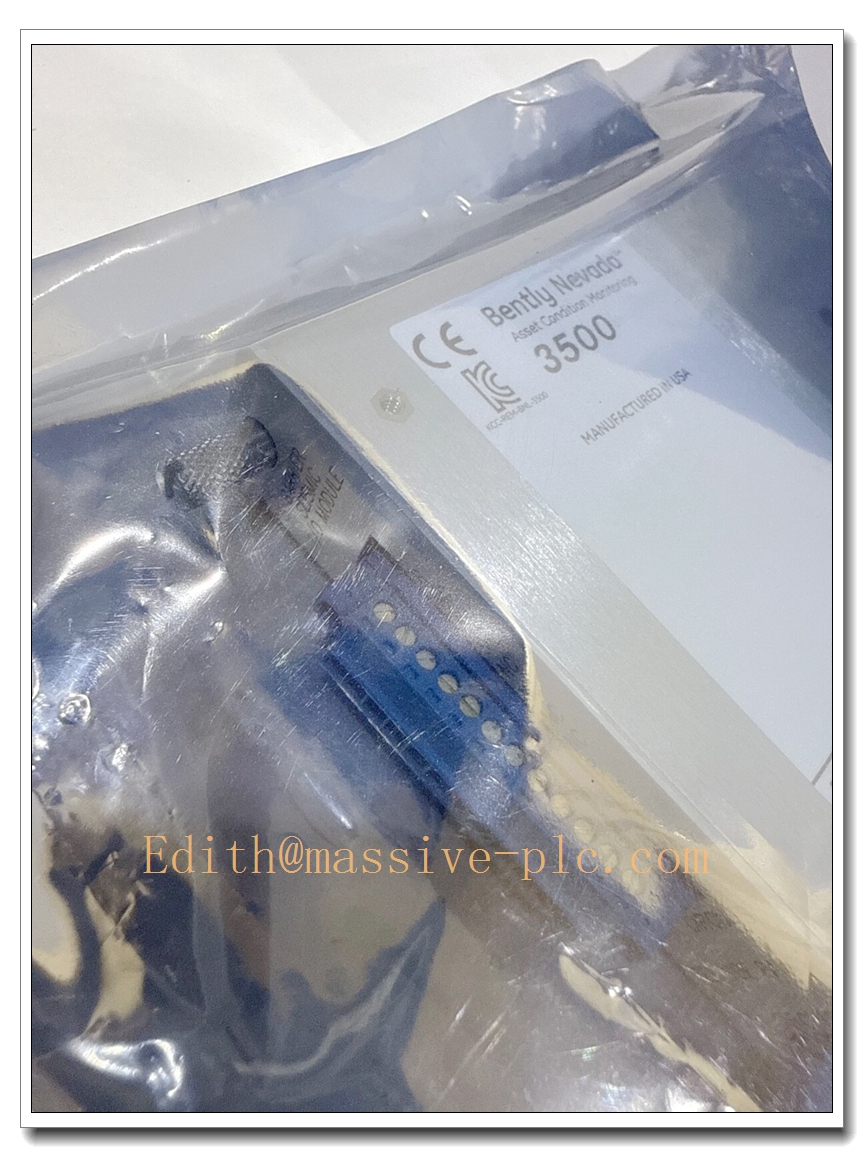

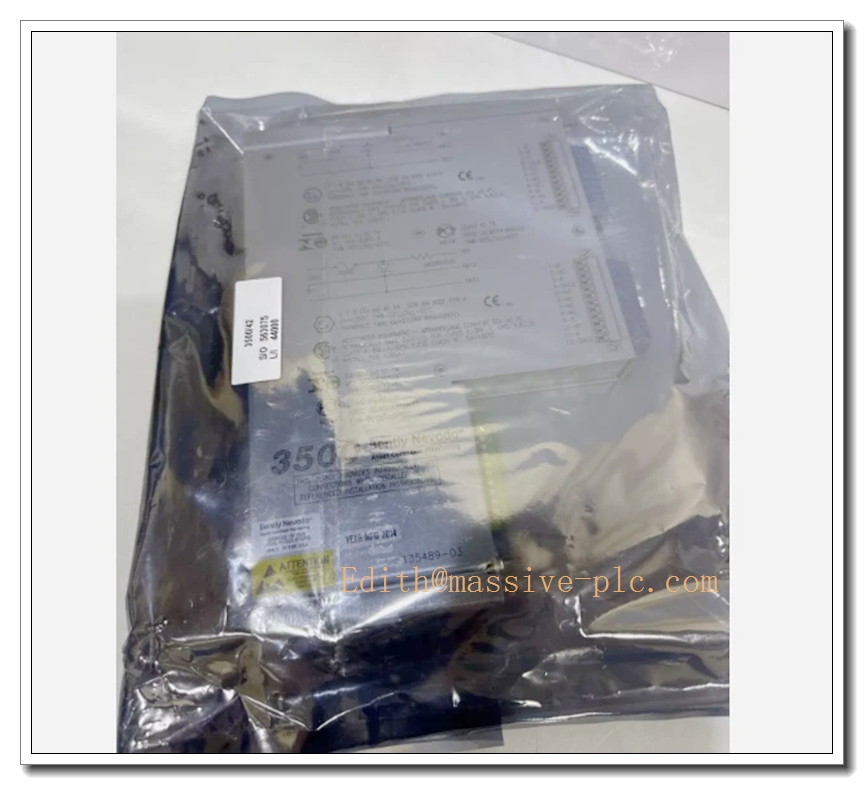

Bently‑Nevada 3500/04 135489‑03 Internal‑Barrier I/O Module (4‑Channel Velomitor‑Optimized, Internal Terminations)
Product Description
The 135489‑03 is a rear‑mounted 4‑channel internal intrinsically‑safe barrier I/O daughter‑board belonging to the 3500/04 internal barrier subsystem, exclusively designed for pairing with front‑side 3500/42M Proximitor/Seismic Monitor main board. Optimized primarily for Velomitor seismic transducers, it integrates intrinsic‑safety energy‑limiting circuits and built‑in internal screw‑terminal field wiring terminations. This module provides certified intrinsically‑safe electrical interfaces for velocity sensors, accelerometers and proximity probes installed in hazardous classified areas, eliminating the requirement for external Zener safety barriers. It draws power and digital communication from the 3500 rack backplane, supplies sensor excitation, limits fault energy entering explosive‑risk zones, and conditions transducer return signals for processing by the 3500/42M main monitor board. It cannot function independently; mandatory mating components include the 3500/42M main monitor and 138257‑01 barrier earthing module. Original OEM manufacturing is discontinued; it is available only as aftermarket replacement spare part for legacy hazardous‑area TSI installations.
135489‑03
Technical Specifications
| Item | Specification |
|---|---|
| Part Number | 135489‑03, 3500/04 Internal‑Barrier I/O Module, Internal Terminations |
| Matching Front Monitor Board | 3500/42M Proximitor / Seismic Monitor |
| Mandatory Earthing Module | 138257‑01 Internal Barrier Earthing I/O Module |
| Channel Count | 4 measurement channels, optimized for Velomitor seismic transducers; also supports proximity probes and accelerometers |
| Field Termination | Integrated built‑in screw terminal block (internal termination) |
| Intrinsic‑Safety Parameters | Uo=26.78 V, Io=90.17 mA, Po=842.89 mW; certified for Class I Div 2 / ATEX hazardous‑area signal loops |
| Backplane Interface | Rear‑side plug‑in daughter‑board connector, power & data from 3500 rack backplane |
| Typical Power Consumption | 7.7 W |
| Form Factor | Full‑height rear‑mount plug‑in daughter‑board |
| Operating Temperature | 0 °C ~ +65 °C (32 °F ~ +149 °F) |
| Storage Temperature | ‑40 °C ~ +85 °C (‑40 °F ~ +185 °F) |
| Relative Humidity | 5‑95 % RH, non‑condensing |
| Dimension | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) |
| Weight | 0.46 kg (1.01 lbs) |
| Product Status | Discontinued OEM production, aftermarket spare‑part only |
Variant note:
- 135489‑02: Mixed proximity / seismic general‑purpose internal‑barrier I/O for 3500/42M
- 135489‑03: Velomitor‑focused internal‑barrier I/O for 3500/42M
- 135489‑04: Internal‑barrier I/O for 3500/40M proximity‑only monitor
Key Features & Benefits
- Velomitor‑optimized intrinsic‑safety interface: Tuned for Bently‑Nevada Velomitor velocity transducers, while retaining compatibility with proximity probes and accelerometers; ideal for casing absolute‑vibration measurement in hazardous‑zone locations.
- Integrated internal termination design: Field‑wiring screw terminals built directly onto the rear module; removes requirement for separate external termination hardware, reduces cabinet wiring complexity and installation cost for hazardous‑area loops.
- Certified system‑level intrinsic safety: Forms complete ATEX / Class I Div 2 certified intrinsically‑safe loops together with matched Bently‑Nevada field transducers and the mandatory 138257‑01 earthing module; safety certification will be invalid without correct earthing connection.
- Mixed‑module rack coexistence: Internal‑barrier I/O modules and standard non‑barrier I/O modules can co‑exist within a single 3500 rack, supporting mixed safe‑area and hazardous‑area sensor points in one machinery‑protection cabinet.
- Hot‑swap capable rear‑side construction: Supports powered‑on hot‑swap replacement; other monitor‑channel protection functions remain active during module exchange, subject to continuous barrier‑earthing continuity.
- Drop‑in backward compatibility: Fully compatible with legacy 3500/42M main boards, rack firmware, RIM and power‑supply assemblies, straightforward spare‑part replacement for existing 3500‑series internal‑barrier systems.
135489‑03
Application Fields
- Machinery‑protection racks for steam turbines, gas turbines, centrifugal compressors in petrochemical refineries and natural‑gas processing plants, where casing‑mounted Velomitor seismic sensors are installed within ATEX / Class I Div 2 hazardous classified zones.
- Combined‑cycle power‑generation facilities requiring intrinsically‑safe casing‑vibration monitoring for turbine and compressor casings located inside explosive‑risk compartments.
- Rotating‑equipment TSI cabinets performing shaft radial‑vibration, thrust‑position and casing absolute‑vibration measurements with field sensors deployed in hazardous areas.
- Spare‑part replacement and retrofit for legacy 3500 racks equipped with 3500/42M monitors, requiring Velomitor‑optimized internal‑barrier signal interfaces.
Related Recommended Products
- 3500/42M Main Monitor Board: Front‑side main processing board (mandatory matching hardware for 135489‑03)
- 138257‑01: Internal‑Barrier Earthing I/O Module, mandatory safety‑ground reference for all internal‑barrier loops
- 135489‑02: General‑purpose mixed‑sensor internal‑barrier I/O variant for 3500/42M
- 135489‑04: Internal‑barrier I/O module for 3500/40M proximity‑only monitor
- 3500/20 (125744‑01): TMR Rack Interface Module for rack‑level communication, event logging and diagnostics
- 3500/25: Keyphasor timing‑reference module for shaft‑speed and phase‑angle measurement
- 3500/15 series: Rack power‑supply assemblies for 3500 machinery‑protection rack
- Velomitor series: Compatible velocity seismic transducers for hazardous‑area deployment
Installation and Maintenance
Installation
- Verify that 138257‑01 barrier earthing module has been properly fitted and rack protective‑earth connection is securely terminated before installing 135489‑03. Improper earthing invalidates intrinsic‑safety certification.
- Insert 135489‑03 into the corresponding rear‑slot directly behind the 3500/42M front‑monitor board; ensure full connector engagement with rack backplane.
- Wire hazardous‑area field transducers directly onto the built‑in screw terminals of 135489‑03. Strictly respect maximum allowable cable capacitance and inductance limits defined within official 3500 internal‑barrier manual for intrinsically‑safe‑loop compliance.
- Complete rack configuration via 3500 Rack Configuration Software; select corresponding sensor‑type parameters (Velomitor / proximity / accelerometer) for each monitor channel and enable internal‑barrier function.
- After power‑on, verify module health status and inspect rack event log for barrier‑fault or ground‑loop diagnostic alarms.
Important Note: 135489‑03 cannot operate as standalone hardware. It must be used together with both 3500/42M main monitor board and 138257‑01 earthing module to maintain hazardous‑area safety certification.
Maintenance
- Perform periodic visual inspection: check rear‑module terminals, connectors and earthing bus for corrosion, dust accumulation or loose wiring connections.
- Regularly review rack event log for barrier‑fault, ground‑fault or loop‑fault diagnostics; resolve field‑cable‑insulation or transducer faults immediately when alarms appear.
- Hot‑swap replacement is permitted with rack powered‑on; re‑verify protective‑earth continuity and clear fault alarms after module exchange.
- Avoid mechanical shock, moisture and conductive contamination to rear‑side printed‑circuit assembly during module handling and replacement.
- Refer to official document 141495 (3500 Internal‑Barrier System Manual) for full hazardous‑area installation constraints, loop‑parameter limits and fault‑troubleshooting guidance.
