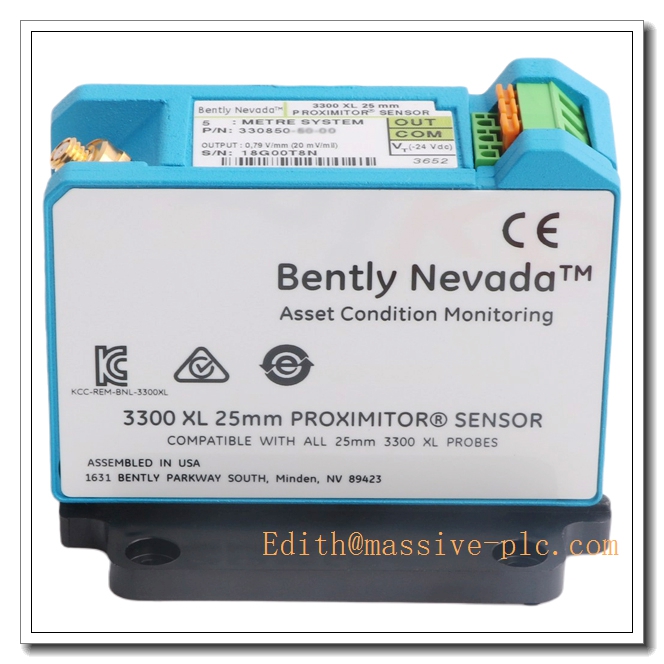

Bently Nevada 330850‑90‑00 3300‑XL 25 mm Proximitor Sensor (9 m Total System Length, Non‑Hazardous‑Area)

Description

Bently Nevada 330850‑90‑00

3300‑XL 25 mm Proximitor Sensor (9 m Total System Length, Non‑Hazardous‑Area)

Product Overview

The 330850‑90‑00 is a 25 mm Proximitor Sensor belonging to Bently Nevada 3300‑XL legacy eddy‑current proximity transducer family. It serves as signal‑conditioning unit for the 25 mm proximity probe system, supplying high‑frequency excitation to the probe and converting target gap displacement into proportional DC gap‑voltage output. Designed for heavy‑duty large‑shaft rotating‑machinery protection, it delivers extended linear measuring range for large radial vibration swing and huge axial thrust travel. This unit complies with API‑670 machinery‑protection standards. Suffix‑00 means no intrinsic‑safety agency certifications, intended for non‑explosive general‑purpose industrial installation.

Critical Compatibility Warning

• This proximitor is exclusively matched with 3300‑XL 25 mm proximity probe and 9 m total calibrated transducer loop (probe + extension cable). It cannot work with 8 mm, 11 mm NSv ClickLoc series or other size transducer assemblies.
• The total physical transducer loop length must strictly follow factory‑matched 9 m configuration. Any field‑splicing or length modification will invalidate calibrated sensitivity and cause measurement error.
• It adopts SpringLoc tool‑free terminal wiring; do not over‑torque terminal contacts. Internal circuits are factory calibrated; housing shall not be opened on‑site.

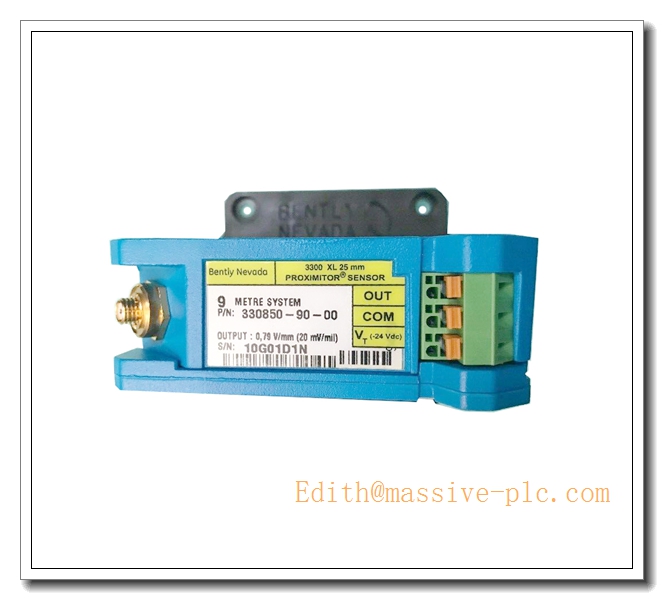

330850-90-00

Part Number Decoding

• 330850：Base model, 3300‑XL 25 mm Proximitor Sensor
• ‑90：Total calibrated transducer system length: 9.0 meters
• ‑00：Certification option: No ATEX / IECEx / CSA hazardous‑area approvals

Key Specifications

Main Features

• 25 mm large‑range proximitor solution, offering much wider linear range than conventional 8 mm /11 mm systems, suitable for large thrust‑travel and high‑vibration‑amplitude heavy‑duty rotors.
• 9‑meter factory‑calibrated total system length, for field sites where probes are remotely located far away from instrument cabinets.
• Dual‑mode mounting: supports traditional panel‑mount and standard DIN‑rail cabinet installation, flexible for different monitoring cabinet layout demands.
• SpringLoc tool‑free push‑in terminal design, accelerates field wiring and reduces bad‑contact failure risk.
• Enhanced RFI / EMI interference‑resistance performance, satisfies CE electromagnetic‑compatibility requirements for industrial environments.
• Built‑in transducer fault diagnosis for cable break, short‑circuit and connection abnormality alarm.
• API‑670 compliant output signal, interoperable with Bently Nevada 3500 monitoring rack or third‑party data‑acquisition instruments.

Typical Application Scenarios

• Radial vibration and large‑stroke axial thrust‑position monitoring for large‑scale steam turbines, heavy‑duty centrifugal compressors, process reciprocating compressors and industrial heavy‑duty gas turbines with big‑diameter rotors.
• Measurement of differential expansion and rod‑drop position for large turbomachinery.
• Keyphasor phase‑reference signal acquisition for rotational‑speed and vibration‑phase calculation when matched with 25 mm probe facing shaft notch or keyway.
• Power‑plant and heavy‑industry non‑hazardous‑zone machinery‑protection monitoring cabinets with long transducer‑cable routing requirement.
• Spare‑part replacement for existing 3300‑XL 25 mm 9‑meter proximity‑measurement loops.

Related & Recommended Alternative Models

Compatible Components & Accessories

1. Transducer Loops: 3300‑XL 25 mm proximity probe + factory‑matched 9 m extension‑cable assembly
2. Host Monitoring System: Bently Nevada 3500‑series monitor modules, vibration data‑acquisition devices
3. Mechanical Accessories: Panel‑mount brackets, DIN‑rail clips, cabinet terminal blocks, cable glands, strain‑relief clamps
4. Installation Consumables: Shielded signal wiring, anti‑oxidation contact grease
5. Calibration Tool: 25 mm static gap calibration fixture

Installation and Configuration Guide

Warning: Installation must be performed by qualified instrument technicians. Refer to original Bently Nevada 3300‑XL 25 mm transducer‑system manual as primary technical reference. This model carries no hazardous‑area certifications and shall not be deployed in explosive classified zones.

1. Pre‑installation Preparation
   • Confirm full transducer set: 25 mm probe + factory‑matched 9 m extension cable + 330850‑90‑00 proximitor. Do not mix components from different system‑length configurations.
   • Inspect probe, extension‑cable jacket and connector for cracking, scratch or contamination.
2. Mechanical Mounting
   • Select either panel‑mount or DIN‑rail installation method. Keep sufficient ventilation clearance around proximitor unit. Avoid mounting adjacent to high‑power contactors or frequency converters to minimize EMI noise interference.
3. Wiring & Terminal Connection
   • Operate SpringLoc push‑in terminals correctly: depress spring lever, insert stripped wire conductor, release lever to lock wire firmly. Do not apply excessive mechanical force to terminal structures.
   • Wire ‑24 VDC power supply and gap‑voltage output signal strictly per official wiring diagram.
   • Route transducer cable separately from high‑voltage power cables, maintain isolation distance for noise suppression. Implement reliable cable strain‑relief fixation.
4. System Commissioning
   • Complete whole transducer‑loop wiring, power‑up proximitor and upper‑level monitoring rack.
   • Read DC gap‑voltage output to verify probe installation gap. Perform static‑gap calibration test with dedicated 25 mm calibration fixture to validate system sensitivity.
   • Confirm transducer fault diagnostic status shows normal. Configure vibration and thrust alarm / trip thresholds according to site machinery specification.
5. Maintenance & Troubleshooting
   • During unit overhaul period, inspect mounting fastening status, SpringLoc terminal locking condition, cable jacket integrity.
   • Common faults: gap‑voltage drift, persistent transducer fault alarm. Possible root causes: mismatched system‑length components, loose terminal connection, cable damage, defective probe target surface.
   • Proximitor internal circuits are factory‑calibrated; do not open housing. Replace complete unit upon failure. Field splicing of calibrated transducer cables is strictly prohibited.

Supplementary Remark

330850‑90‑00 is Bently Nevada 3300‑XL legacy 25 mm proximity proximitor sensor for 9‑meter total calibrated transducer loop, designed for large‑shaft heavy‑duty rotating‑machinery vibration and thrust monitoring under non‑explosive industrial environments. It features wide linear measuring range, dual‑purpose mounting and SpringLoc tool‑free terminal wiring. It is not compatible with 8 mm, 11 mm or NSv ClickLoc‑interface transducer assemblies. Before commissioning, double‑check component matching for 25 mm / 9‑m system, target‑size requirement, cable routing and grounding specification versus project BOM and official technical manual.
