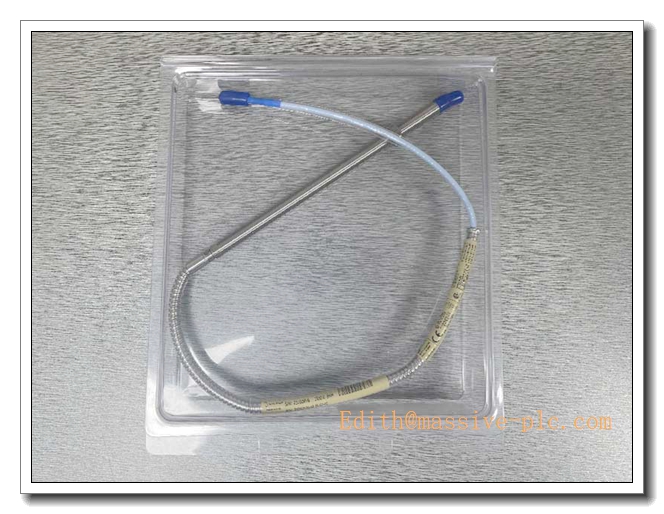

Bently Nevada 330102‑00‑68‑05‑02‑05 3300‑XL 8 mm NSv Eddy‑Current Proximity Probe Assembly (Front‑Mount, Multi‑Hazardous‑Area Certifications)

Description

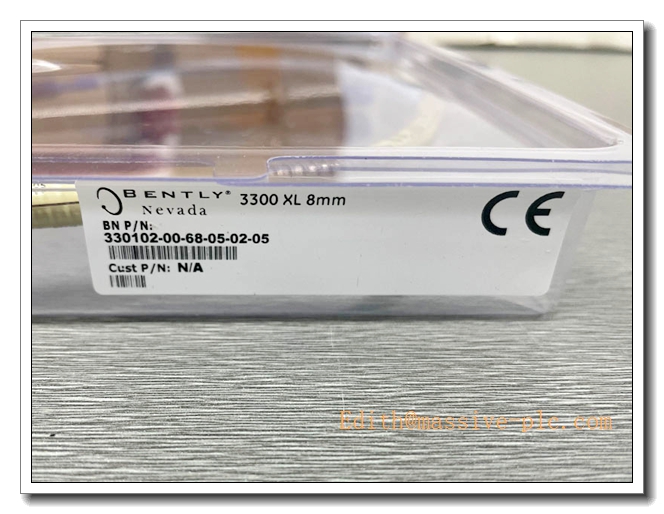

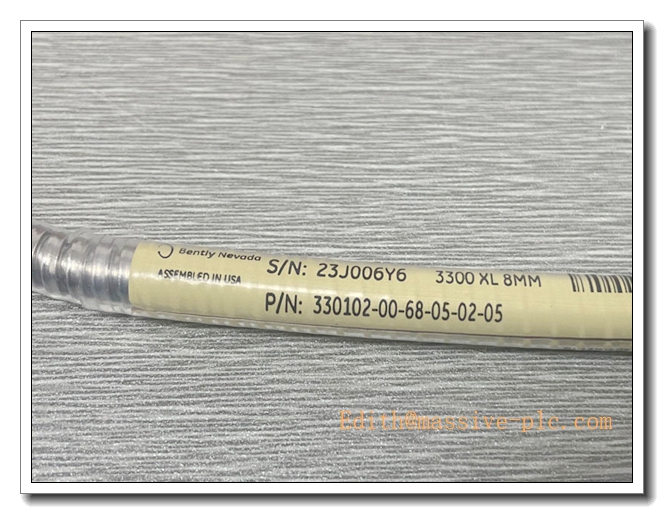

Bently Nevada 330102‑00‑68‑05‑02‑05

3300‑XL 8 mm NSv Eddy‑Current Proximity Probe Assembly (Front‑Mount, Multi‑Hazardous‑Area Certifications)

Product Overview

The 330102‑00‑68‑05‑02‑05 is a front‑mount eddy‑current proximity probe within the Bently Nevada 3300‑XL 8 mm NSv transducer series. It converts shaft‑to‑probe tip clearance into proportional analog voltage output for non‑contact measurement of shaft‑relative radial vibration, static thrust position, and Keyphasor rotational speed / phase reference. Designed for direct installation on bearing housings of rotating machinery, this unit complies with API‑670 turbomachinery protection standards. The final suffix ‑05 provides multi‑agency ATEX, IECEx and CSA intrinsic‑safety approvals for installation within explosive classified hazardous areas.

Critical Compatibility Warning

• Belongs to the 3300‑XL NSv ClickLoc transducer ecosystem. Not compatible with legacy Microdot‑based 3300‑XL hardware (330130 /129716 series). Must pair exclusively with NSv‑type ClickLoc extension cables (330930‑xx‑xx‑xx‑xx), NSv‑qualified proximitor modules or NSv‑loop powered 990 transmitters.
• Total calibrated transducer length = probe integral pigtail length (0.5 m) + selected NSv extension cable length. The sum must strictly match the calibrated length setting configured on the paired proximitor / transmitter. Mismatched total length will introduce scale‑factor deviation and measurement inaccuracy.
• Termination: Miniature ClickLoc quick‑lock coaxial connector. Do not cut, splice or modify the factory‑molded probe pigtail assembly. Always verify intrinsic‑safety markings on the physical hardware label prior to hazardous‑area deployment.

Part Number Decoding

• 330102：Base model, 3300‑XL 8 mm front‑mount NSv proximity probe
• ‑00：Mounting configuration: no external thread (smooth‑body press‑in / sleeve‑mount housing style)
• ‑68：Overall probe housing length: 68 mm
• ‑05：Integral non‑armored pigtail cable length: 0.5 meter
• ‑02：Connector interface: Miniature ClickLoc coaxial connector
• ‑05：Agency certification option: ATEX / IECEx / CSA multi‑hazardous‑area intrinsic‑safety approvals

330102-00-68-05-02-05

Key Specifications

Main Features

• Thread‑less smooth‑body front‑mount design: Installed via dedicated sleeve housing, compact 68 mm housing length for space‑limited bearing‑housing mounting positions.
• 0.5 m factory‑calibrated non‑armored integral pigtail with Miniature ClickLoc connector: Combines with 330930 series NSv extension cables to achieve required total transducer loop length.
• Miniature ClickLoc quick‑lock interface: Vibration‑resistant audible click‑in locking, gold‑plated contacts resist oil‑mist corrosion for long‑term continuous turbomachinery operation.
• Multi‑agency hazardous‑area intrinsic‑safety certifications (‑05 suffix): Qualified for petrochemical, refinery and oil‑gas explosive classified zone applications.
• Stable linearity and wide temperature tolerance: Withstands oil‑mist, humidity and machinery vibration, meets API‑670 protection requirements for critical rotating assets.
• Full interoperability within 3300‑XL NSv ClickLoc transducer family.

Typical Application Scenarios

• Shaft‑relative radial‑vibration and axial thrust‑position monitoring for steam turbines, gas turbines, centrifugal compressors with sleeve‑mount probe housings
• Keyphasor phase reference and shaft rotational‑speed measurement for fluid‑film‑bearing rotating equipment
• Refinery, petrochemical and power‑plant projects requiring ATEX / IECEx / CSA certified NSv proximity transducers
• New‑system integration with Bently Nevada 3500 rack NSv‑compatible monitor input channels
• Spare‑part replacement for existing smooth‑body sleeve‑mount NSv proximity measurement loops

Related & Recommended Alternative Models

Compatible Components & Accessories

1. NSv Extension Cables: 330930‑xx‑xx‑xx‑xx series ClickLoc extension cables
2. Monitoring Hardware: NSv‑type proximitor modules, 990‑series NSv transmitters, Bently Nevada 3500 rack NSv‑compatible monitor channels
3. Mechanical Accessories: Matching smooth‑body sleeve‑mount probe housing assembly, 43501‑02‑04‑02 low‑pressure cable‑seal assembly, 43574‑04 multi‑hole grommet
4. Installation Consumables: Cable clamps for strain‑relief, high‑temperature cable ties, anti‑seize compound for sleeve housing threads
5. Calibration Tool: 8 mm NSv static gap calibration fixture

Installation and Configuration Guide

Warning: Installation must be performed by qualified instrument technicians. Always refer to original Bently Nevada 3300‑XL NSv transducer‑system manual as primary reference. Verify intrinsic‑safety marking before deployment in explosive classified hazardous zones.

1. Pre‑installation Total‑Length Calculation
   • Calculate total NSv transducer length = probe integral pigtail (0.5 m) + selected NSv extension‑cable length.
   • Confirm total length strictly matches calibrated‑length requirement of paired NSv proximitor or 990‑NSv transmitter. Length mismatch will produce scale‑factor error.
2. Sleeve‑Mount Mechanical Installation
   • Mount the dedicated smooth‑body probe sleeve housing onto machine bearing housing per drawing requirements.
   • Insert probe into sleeve housing; adjust probe‑to‑shaft working gap to target value, then secure probe with sleeve‑housing locking hardware to specified torque.
   • Confirm probe tip maintains safe clearance and will not collide with rotating shaft surface during operation.
3. Cable Routing & ClickLoc Connector Mating
   • Route NSv transducer cable separately from high‑power AC, VFD and contactor wiring to minimize EMI noise interference.
   • Respect minimum static bending radius requirement; avoid sharp kinks. Never pull cable assembly via ClickLoc connector body.
   • Align ClickLoc connector key‑slot, push in and twist clockwise until audible “click” for finger‑tight locking. Wrench tightening is prohibited.
   • Install strain‑relief clamps near connector joint. Where cable penetrates machine casing, fit approved cable‑seal fitting.
4. System Commissioning
   • Complete full NSv transducer‑loop assembly and power‑up proximitor / monitoring rack.
   • Read static gap voltage to verify mechanical gap setting. Perform static‑gap calibration test with 8 mm NSv calibration fixture to validate system scale‑factor.
   • Clear Not‑OK fault status; configure alarm and trip thresholds according to project machinery specification.
5. Maintenance & Troubleshooting
   • During machinery turnaround, inspect probe fixation inside sleeve housing, check ClickLoc connector for oil contamination / corrosion; inspect outer jacket for abrasion or cracking.
   • Gap‑voltage drift, high noise or persistent Not‑OK faults may result from loose ClickLoc lock, gap shift, cable damage or incorrect total transducer‑loop length.
   • Replace full factory probe assembly upon pigtail or probe tip damage; field‑splicing of integral probe cable is strictly prohibited.

Supplementary Remark

330102‑00‑68‑05‑02‑05 is a compact 68 mm smooth‑body sleeve‑mount 3300‑XL 8 mm NSv eddy‑current proximity probe with 0.5 m integral pigtail, miniature ClickLoc connector and ATEX/IECEx/CSA multi‑hazardous‑area intrinsic‑safety certifications. It requires a dedicated sleeve‑mount housing for mechanical installation and only works within NSv ClickLoc transducer ecosystem, incompatible with legacy Microdot‑interface hardware. Before commissioning, cross‑check sleeve‑housing requirement, total transducer‑loop length, ClickLoc interface and hazardous‑area certification against project BOM and mechanical drawings.
