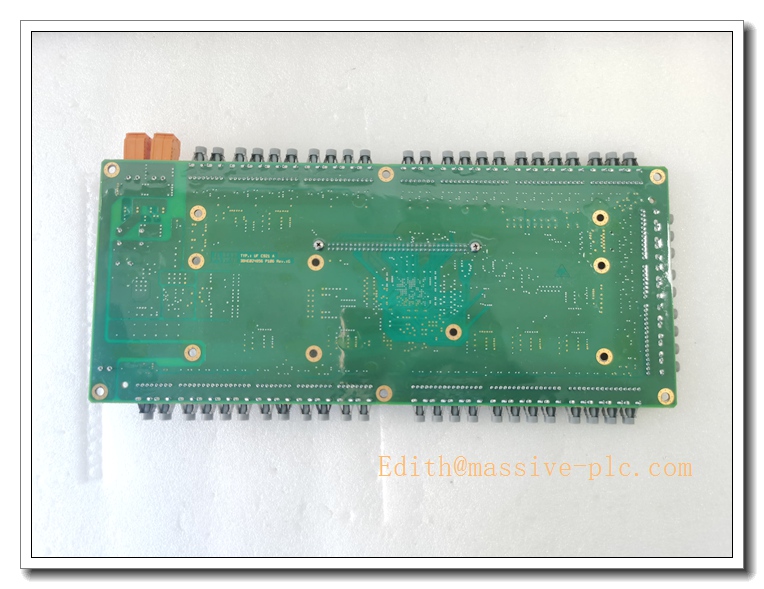

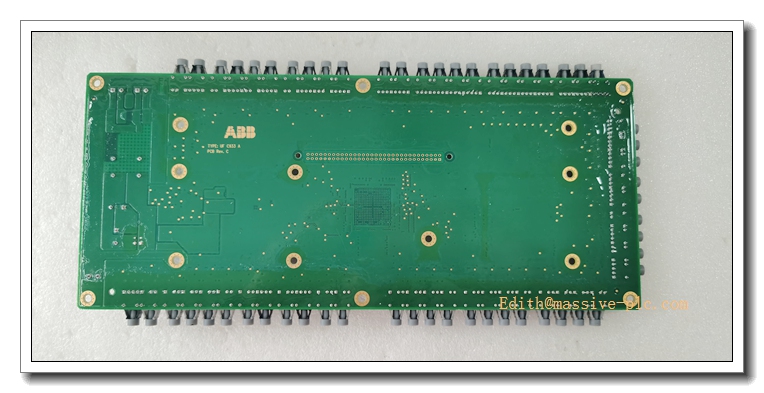

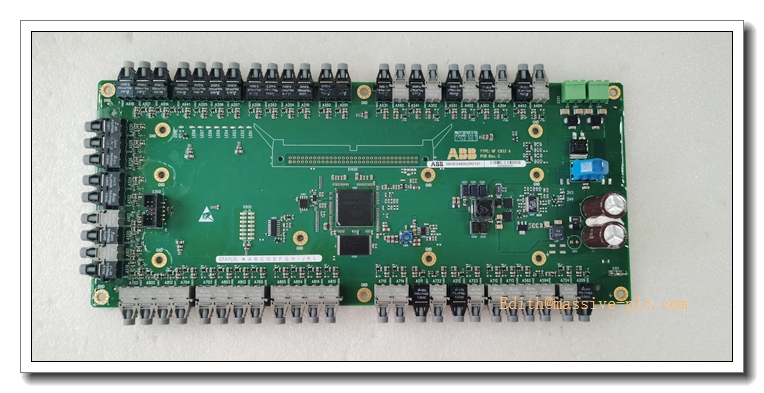

ABB UFC933A101 3BHE048062R0101 Universal Field Controller Module

Description

ABB UFC933A101 3BHE048062R0101 Universal Field Controller Module

Product Core Introduction

The UFC933A101 (3BHE048062R0101) is a high-performance universal field controller module developed by ABB for the AC800PEC / System 800xA and UNITROL excitation control ecosystem. It delivers deterministic real-time control, local signal acquisition and processing for power electronics and power plant automation systems. The module integrates mixed analog/digital I/O and multi-channel communication interfaces, executing closed-loop control algorithms, interlock logic and fault diagnostics. It serves as a field control node between the main rack controller and on-site transducers & actuators, widely deployed in generator excitation, medium voltage converters and heavy-duty industrial drive control cabinets, maintaining stable operation under strong EMC interference environments.

UFC933A101 3BHE048062R0101

Main Technical Specifications

• Part No: 3BHE048062R0101
• Model: UFC933A101
• Type: Universal Field Controller Module
• Processor: 32-bit RISC real-time CPU
• Supply Voltage: 24 VDC (19.2 ~ 30 VDC)
• Max Power Consumption: 10 W
• I/O Configuration: Mixed digital & analog input/output channels
• Communication: Modulebus backplane, Ethernet, serial interface
• Programming Standard: IEC 61131-3
• Operating Temperature: -20 ℃ ~ +70 ℃
• Storage Temperature: -40 ℃ ~ +85 ℃
• Humidity: 5%~95% RH, non-condensing
• Protection Class: IP20 (mounted inside control cabinet)
• Certifications: CE, cULus, SIL2 capable
• Weight: Approx. 0.5 kg

Recommended same-series ABB models

1. UFC912A101 (3BHE039426R0101) – EOI Emitter Output Interface Board
2. UFC911A101 – EOI optical interface board
3. XVC724BE102 (3BHE009017R0102) – Fiber Optic Interface Board
4. PCD231B (3BHE025541R0101) – Excitation control board
5. PCD232A (3BHE022293R0101) – PEC800 control module
6. GFD233A (3BHE022294R0101) – Feedback signal board
7. GDC801B101 (3BHE051592R0101) – Gate drive digital output board
8. DKTFM418B (3BHB015651P0001) – IGCT Gate Driver Board
9. SPBRC410 – PEC rack controller

Quality Control Test SOP

1. Visual Inspection: Inspect PCB, solder joints, connectors, component and marking; verify no scratches, burn marks or corrosion.
2. Continuity & Insulation Test: Check backplane connector continuity and isolation resistance of I/O circuits.
3. Power-on Burn-in Test: Supply 24VDC for 4 hours under rated ambient temperature, monitor CPU temperature and LED status.
4. I/O Channel Function Test: Input standard analog and digital signals, validate sampling accuracy and output response.
5. Program Execution Test: Download control project, verify deterministic scan cycle and logic execution.
6. Communication Interface Test: Connect to PEC800 rack to validate Modulebus and Ethernet data transmission.
7. EMC Immunity Test: IEC61000 series ESD, EFT and surge immunity test.
8. Fault Diagnosis Function Test: Simulate I/O short and open circuit to verify onboard diagnostic alarm.
9. Serial number registration and ESD shielding packaging.

New Module Installation

WARNING: Cut off all rack power and wear ESD wristband before handling.

1. Disconnect cabinet main power and 24VDC auxiliary supply.
2. Unlock retention clips and extract the old UFC933A101 from the rack slot carefully.
3. Align edge connector with backplane slot, insert new module fully and lock the clips.
4. Wire field I/O cables strictly according to cabinet schematic. Separate power cables and signal cables to reduce interference.
5. Double check wiring polarity, eliminate short circuit risk.
6. Restore power supply, download matching firmware and control application.
7. Perform offline I/O calibration and logic verification before online commissioning.

Note: Hot swap is not supported for PEC800 / UNITROL excitation racks.

Application Scenarios & Features

Application Scenarios

• UNITROL generator excitation control cabinets for thermal & hydro power plants
• ABB ACS6000 / PCS6000 medium voltage high-power converters
• Metallurgy rolling mill and mine hoist large drives
• SVC / STATCOM reactive power compensation systems
• AC800PEC / System800xA control racks for power electronics

Key Features

✅ Real-time RISC controller for fast local closed-loop control and interlock ✅ Integrated mixed analog & digital I/O for on-site signal acquisition ✅ Multi-color LED indicators for power, run, communication and fault diagnosis ✅ Modulebus backplane communication for seamless integration with PEC800 rack ✅ Rugged board design, wide temperature range and high EMI immunity ✅ Standard slide-in rack design for convenient spare replacement and maintenance

FAQ

Q1: Controller fault LED lights up after power-up? A: Check 24VDC input voltage first. Disconnect field I/O wiring and power on standalone. If alarm remains, check firmware compatibility or board hardware failure.

Q2: Loss of communication with main PEC controller? A: Inspect backplane seating. Verify module address setting and firmware revision match. Check for backplane bus damage.

Q3: Can UFC933A101 replace UFC912A101 directly? A: No, they have different hardware functions and channel definitions. Not plug-and-play interchangeable. Must confirm part number, hardware revision and system configuration before replacement.

Q4: Storage requirements for spare controller module? A: Store inside ESD shielding bag, dry temperature-controlled warehouse, avoid condensation, heavy vibration and dust.

Q5: What happens if UFC933A101 fails during generator operation? A: Loss of local control and signal processing will trigger system interlock protection, which may lead to excitation trip and generator de-excitation.
