ABB UFC912A101 3BHE039426R0101 EOI Emitter Output Interface Board

Description

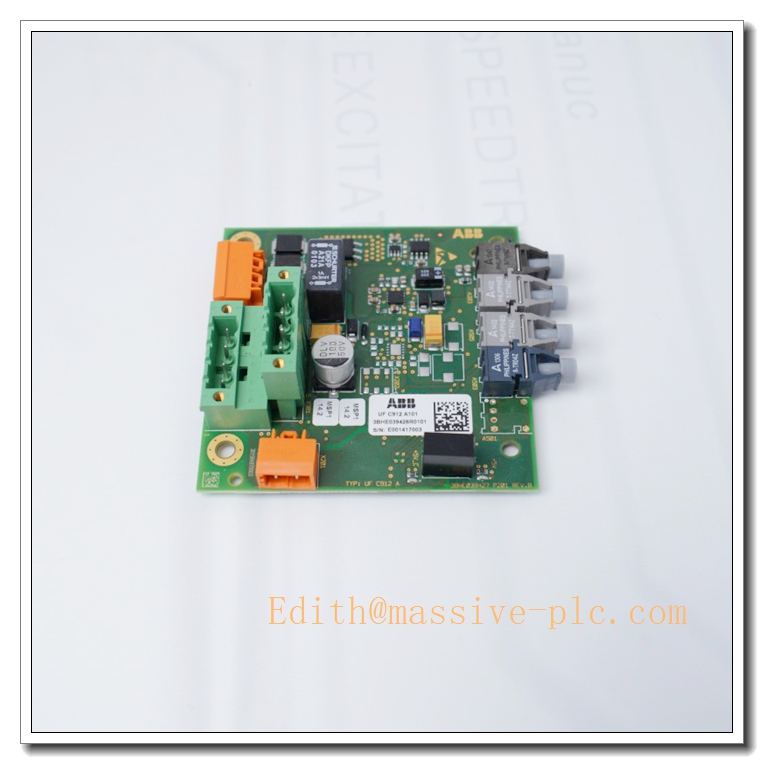

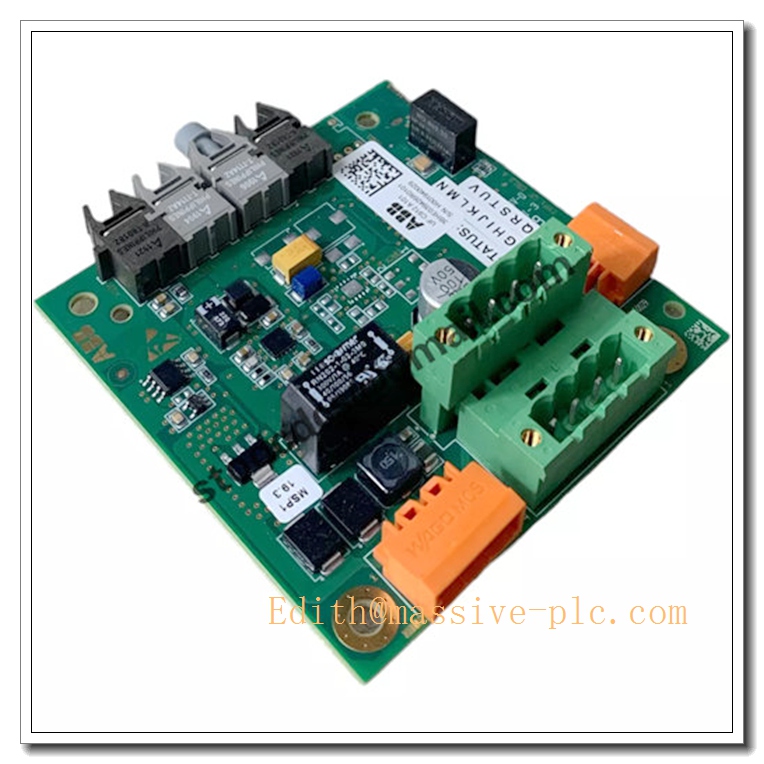

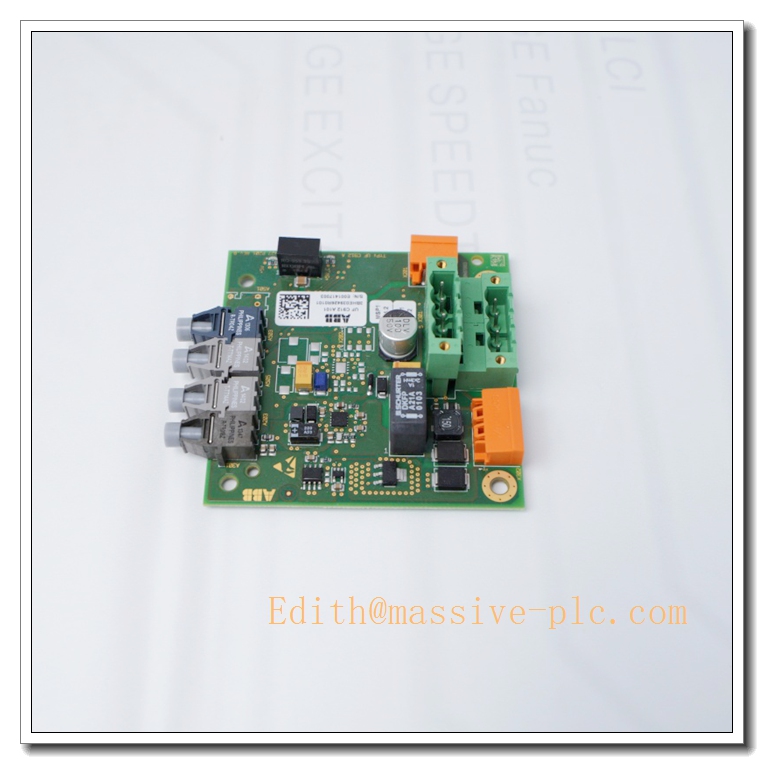

ABB UFC912A101 3BHE039426R0101 EOI Emitter Output Interface Board

Product Core Introduction

The UFC912A101 (3BHE039426R0101) is an Emitter Output Interface (EOI) board developed for ABB UNITROL 6000 excitation systems and ACS6000 medium voltage converters under the AC800PEC platform. It acts as a high-speed isolated signal interface between the main controller and power semiconductor devices (IGCT/IGBT). The board transmits gate trigger pulses, feedback signals and protection interlock signals, with high voltage optical isolation to separate low-voltage control circuits and high-power power circuits. It provides real-time hardware protection against overcurrent, short-circuit and device saturation, widely used in power station generator excitation and high-power medium voltage drive cabinets.

ABB UF C912A101 3BHE039426R0101

Main Technical Specifications

• Part No: 3BHE039426R0101
• Model: UFC912A101
• Type: EOI Emitter Output Interface Board
• Supply Voltage: 24 VDC (18 ~ 32 VDC)
• Max Power Consumption: 15 W
• Channels: 8 configurable hybrid digital / analog output channels
• Isolation: 4kV opto-isolation between control side and power side
• Interface: Fiber optic communication + backplane Modulebus
• Analog Output Resolution: 12-bit
• Typical I/O update cycle: 10ms; fast protection response <1ms
• Operating Temperature: -20 ℃ ~ +60 ℃
• Storage Temperature: -40 ℃ ~ +70 ℃
• Humidity: 5%~95% RH, non-condensing
• Protection Class: IP20 (installed inside control cabinet)
• Certifications: CE, cULus

Recommended same-series ABB models

1. UFC911A101 – EOI interface board (lower channel variant)
2. PCD231B (3BHE025541R0101) – Excitation control board
3. PCD232A (3BHE022293R0101) – PEC800 main control module
4. GFD233A (3BHE022294R0101) – Feedback signal acquisition board
5. GDC801B101 (3BHE051592R0101) – Gate drive digital output board
6. SPBRC410 – PEC rack controller

Quality Control Test SOP

1. Visual Inspection: Check PCB tracks, soldering joints, optical ports, connectors and label; confirm no scratch, corrosion or component damage.
2. Insulation & Hi-pot Test: Verify 4kV isolation between primary and secondary isolated circuits, check for leakage current.
3. Continuity Test: Backplane connector continuity and channel open/short test.
4. Power-on Burn-in Test: 24VDC power supply for 4 hours at rated ambient temperature, monitor board temperature and LED status.
5. Channel Function Test: Trigger each of the 8 channels, verify output waveform, analog resolution and fiber communication quality.
6. Hardware Protection Test: Simulate short-circuit and overcurrent fault; confirm fast interlock and latch protection.
7. Modulebus & Fiber Communication Test: Connect to PEC800 controller to validate stable real-time data transmission.
8. EMC Immunity Test: IEC61000 ESD, EFT and surge test.
9. Final serial number record and anti-static packaging.

New Module Installation

WARNING: Cut off all rack power and wear ESD wristband before handling.

1. Disconnect system main power and auxiliary 24VDC supply.
2. Unlock the retaining clips, extract the old UFC912A101 board smoothly from the rack slot.
3. Align the backplane edge connector, insert the new module fully into the slot and lock the clips.
4. Connect optical fiber cables and field signal wiring strictly according to the cabinet wiring diagram. Do not bend fiber beyond minimum bending radius.
5. Double-check wiring and fiber connection, confirm no short circuit on terminals.
6. Restore power, download matching firmware for UNITROL6000 / ACS6000 system.
7. Perform offline channel test and protection function verification before online commissioning.

Note: Not hot-swappable in excitation and medium voltage converter racks.

ABB UF C912A101 3BHE039426R0101

Application Scenarios & Features

Application Scenarios

• UNITROL 6000 generator excitation control systems (hydro / thermal power plant)
• ABB ACS6000 medium voltage high-power converters
• Metallurgy rolling mill large drives
• Renewable energy high-power power conversion systems
• AC800PEC / PEC800 control cabinets

Key Features

✅ High-speed optical isolation, 4kV isolation rating to isolate high & low voltage circuits ✅ 8 configurable hybrid DO/AO channels for pulse and analog feedback ✅ Hardware fast protection for IGCT/IGBT, sub-millisecond fault interlock ✅ Multi-color LED status indication for power, running and fault diagnosis ✅ Fiber-optic communication for strong anti-interference in heavy EMC environment ✅ Modular rack design for fast spare replacement and easy maintenance

FAQ

Q1: Module fault LED lights up immediately after power-up? A: Check 24VDC input first. Confirm fiber connection is intact and not damaged. Remove field wiring, power on standalone; if alarm persists, the board hardware may be defective.

Q2: Fiber communication loss alarm? A: Inspect fiber end face for dust or scratch; check fiber bending radius. Confirm fiber transmitter/receiver port matches the controller port definition.

Q3: Can UFC912A101 replace UFC911A101 directly? A: Not plug-and-play interchangeable. Must check hardware revision, firmware version and system configuration parameters before replacement.

Q4: What is the storage requirement for spare EOI board? A: Store in ESD shielding bag, dry warehouse with temperature controlled -10 ~ +40°C, avoid vibration and condensation.

Q5: Will the excitation system trip if this board fails? A: Yes. EOI is critical signal transmission link; board fault will trigger excitation system protection and generator de-excitation.
