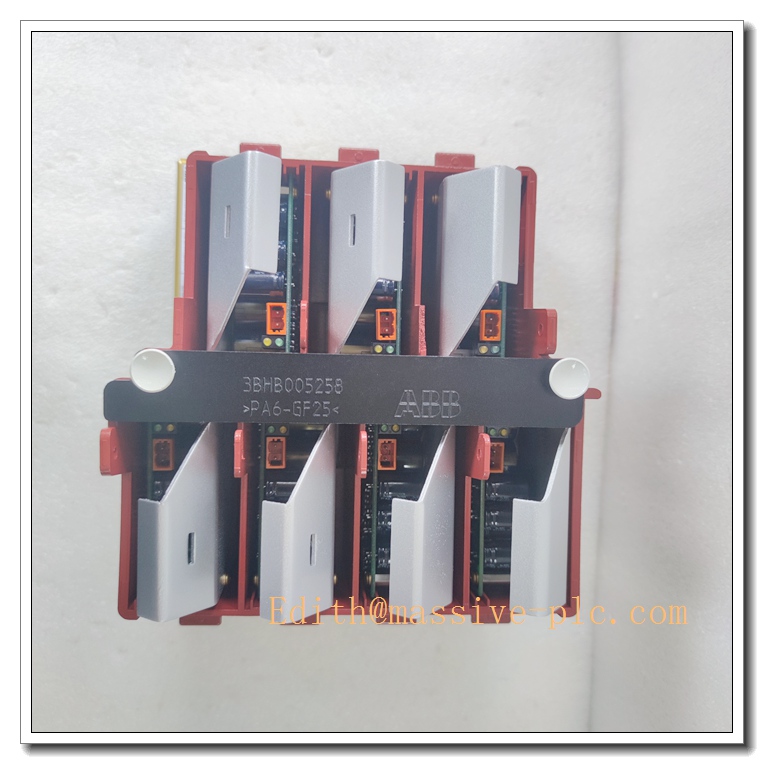

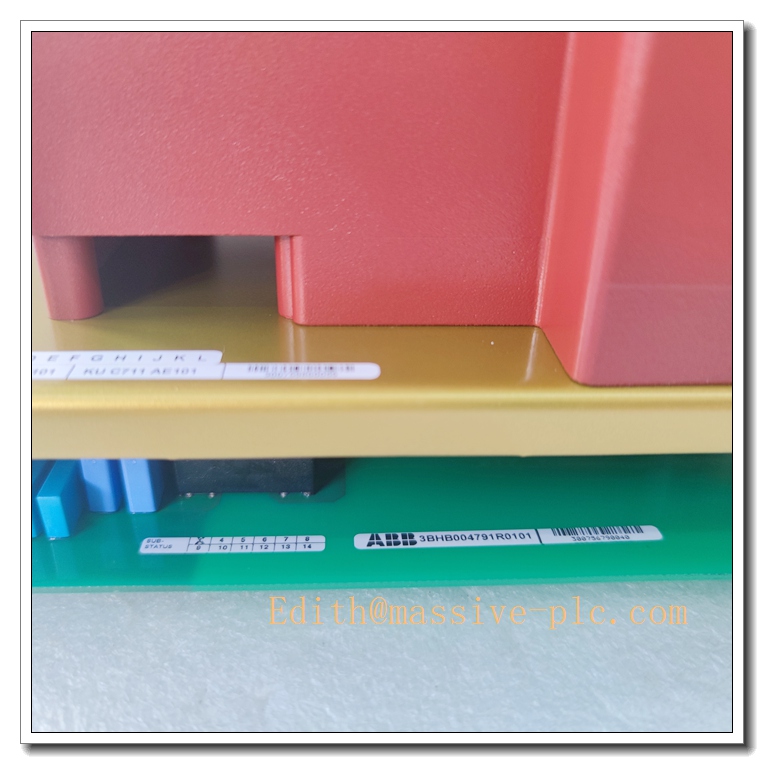

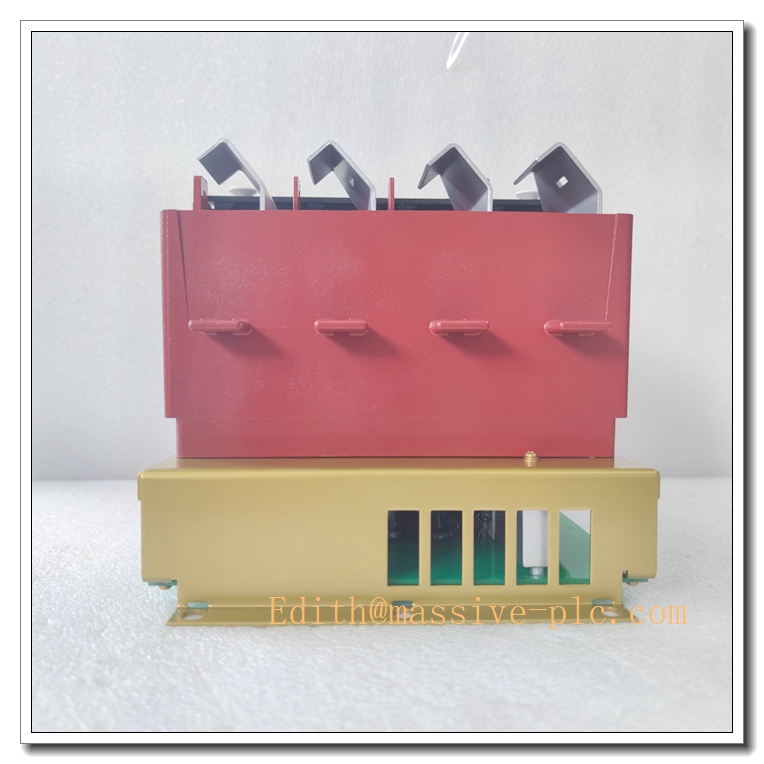

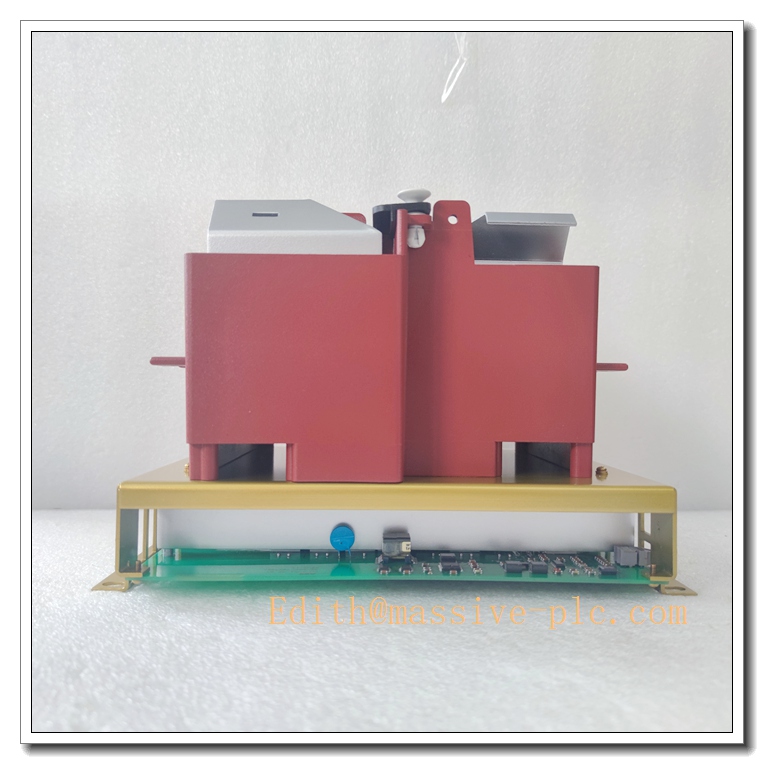

ABB KUC711AE101 3BHB004661R0101 GUSP Gate Unit Power Supply, ACS1000 Medium Voltage Drive Gate Drive Power Module, Power Electronics Inverter Spare Part

Description

ABB KUC711AE101 3BHB004661R0101 GUSP Gate Unit Power Supply, ACS1000 Medium Voltage Drive Gate Drive Power Module, Power Electronics Inverter Spare Part

Product Application

KUC711AE101 (GUSP = Gate Unit Power Supply) is a dedicated gate drive power supply unit for ABB ACS1000 medium voltage variable frequency drive. It provides isolated, stable power supply for IGCT gate drive units, and handles gate signal transmission, monitoring and fault detection for power semiconductor devices.

• Large medium voltage motor drive system in power plant auxiliary equipment
• Petrochemical plant large compressor and pump medium voltage VFD cabinet
• Mining large conveyor and crusher medium voltage drive control
• Metallurgy large fan and mill medium voltage variable speed system
• Water & wastewater large pump medium voltage drive retrofit
• ACS1000 MV drive maintenance and spare replacement
• IGCT power unit gate power supply and fault supervision

KUC711AE101 3BHB004661R0101

Specifications

• Part Number: KUC711AE101, 3BHB004661R0101
• Brand: ABB
• Product Type: GUSP Gate Unit Power Supply Module
• Compatible System: ABB ACS1000 Medium Voltage Drive
• Mounting: Cabinet chassis mounting inside MV drive power cell
• Dimension: 330 × 210 × 230 mm
• Weight: Approx. 4.58 kg
• Input power: 24VDC system auxiliary supply
• Rated output current: 4A
• Efficiency: Up to 90%
• Protection Class: IP20 (cabinet installation only)
• Condition: Original new / refurbished spare available
• Compliance: CE, IEC 61800, IEC industrial power electronics standard

Parameters

• Function: Isolated power supply for IGCT gate units + gate signal supervision
• Built-in logic: 32-bit RISC processor for gate unit status monitoring and fault reporting
• Fault detection: Gate drive power loss, short circuit, abnormal gate signal monitoring
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +70°C
• Relative Humidity: 5%~95% RH, non-condensing
• Shock & Vibration: Comply with IEC 60068 industrial vibration standard
• Status Indicator: Front LED indicators for power, gate unit health and fault alarm
• Interface: Signal connectors to IGCT gate units and drive control board

Key Features

1. Specialized GUSP gate power module for ABB ACS1000 medium voltage drive, supplies isolated power to IGCT gate drivers
2. Integrated RISC logic chip, real-time monitoring gate unit working status and fault diagnosis
3. High efficiency power conversion, stable gate driving power under heavy load fluctuation
4. Comprehensive fault detection, quickly trigger drive protection and trip when gate circuit abnormality occurs
5. Robust mechanical structure, designed for high vibration and high electromagnetic interference MV drive cabinet environment
6. Modular assembly structure, convenient for on-site disassembly and replacement
7. Complete monitoring feedback to drive main controller, improves medium voltage drive safety and reliability
8. Factory tested high voltage power electronic spare, critical component for ACS1000 inverter power cell

KUC711AE101 3BHB004661R0101

ABB Same Series Related Models (≥6)

1. KUC711AE101 3BHB004661R0101
2. KUC720AE
3. KUC711AE
4. KUC711BE
5. 3BHB004661R0001
6. KUC711CE
7. KUC711DE

Maintenance

• Routine inspection: Check LED status, connector tightness and dust accumulation every 6–12 months
• Clean module surface with dry compressed air; liquid solvent cleaning is strictly prohibited
• ESD protection must be adopted during disassembly, anti-static wristband required
• If gate drive fault alarm occurs, power off and inspect power output circuit and IGCT gate cable connection
• Do not energize the module if PCB corrosion, burn marks or condensation are found
• We support function testing, refurbishment and spare replacement service for this KUC711AE101 gate power supply module

Installation

1. Cut off all high voltage and auxiliary 24VDC power supply of medium voltage drive, confirm zero voltage and implement lockout-tagout procedure.
2. Wear anti-static wristband and insulating gloves for high voltage equipment maintenance.
3. Open MV drive power cell cabinet door, release the fixing fasteners of old KUC711AE101 module.
4. Disconnect gate signal cables and 24VDC power wires one by one, mark all cables for reconnection.
5. Install new module and fasten mounting bolts.
6. Reconnect 24VDC power and IGCT gate unit signal cables strictly according to marking.
7. Restore auxiliary power supply, perform module self-test and gate circuit continuity check.
8. Carry out low voltage commissioning, verify gate drive power and fault alarm function before high voltage power-on test.
