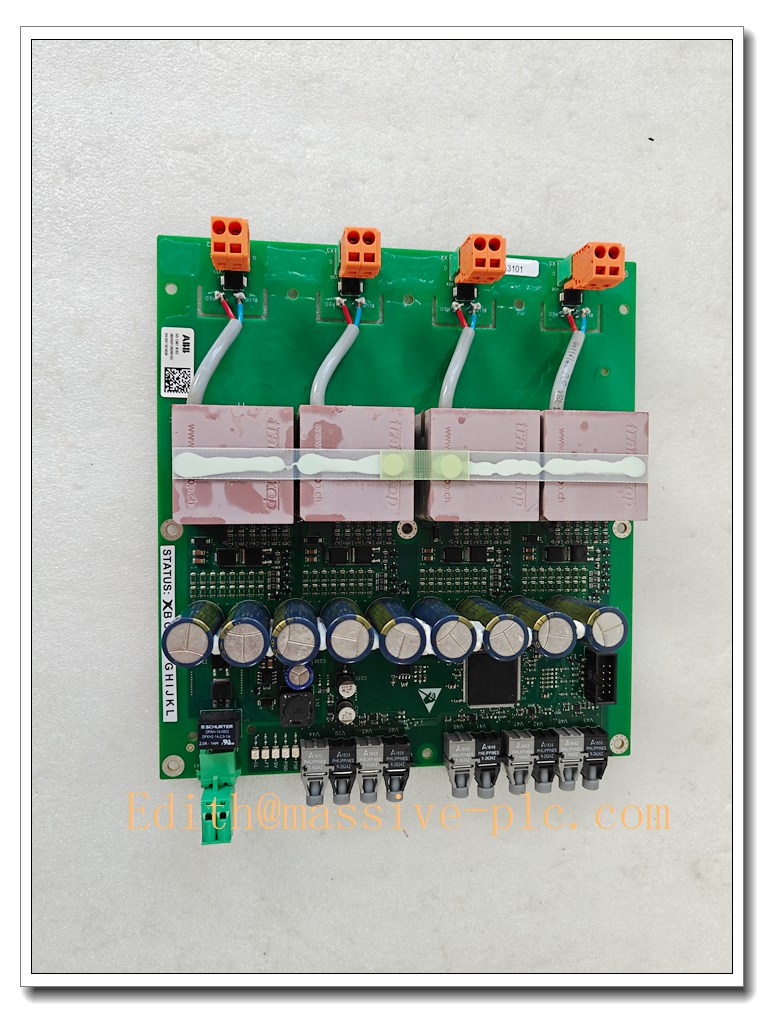

ABB GDC801B101 3BHE051592R0101 Digital Output Control Board - Image 4

ABB GDC801B101 3BHE051592R0101 Digital Output Control Board

  1. PCD231B (3BHE025541R0101) – Excitation control board
  2. PCD232A (3BHE022293R0101) – PEC800 control module
  3. GFD233A (3BHE022294R0101) – Feedback signal board
  4. SPBRC410 – Controller unit for PEC series
  5. GDC801B series variants for gate drive
Request Quote
Category: Brand:

Description

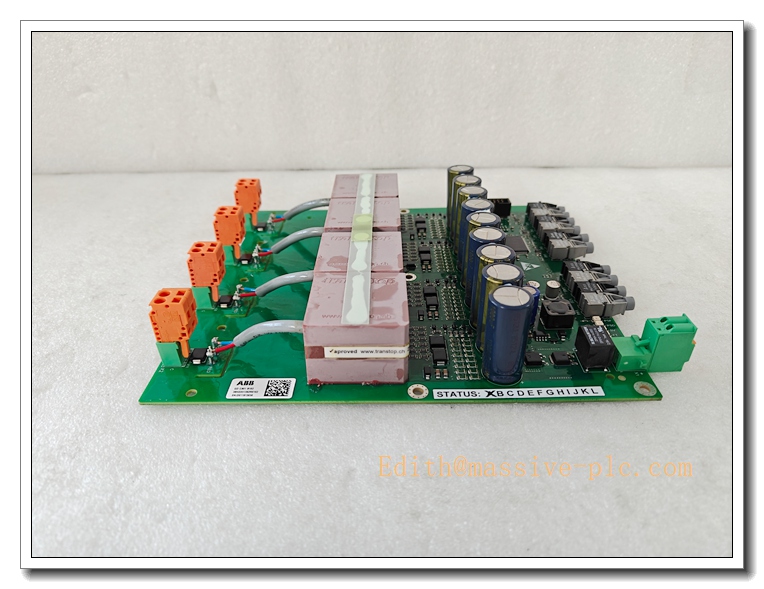

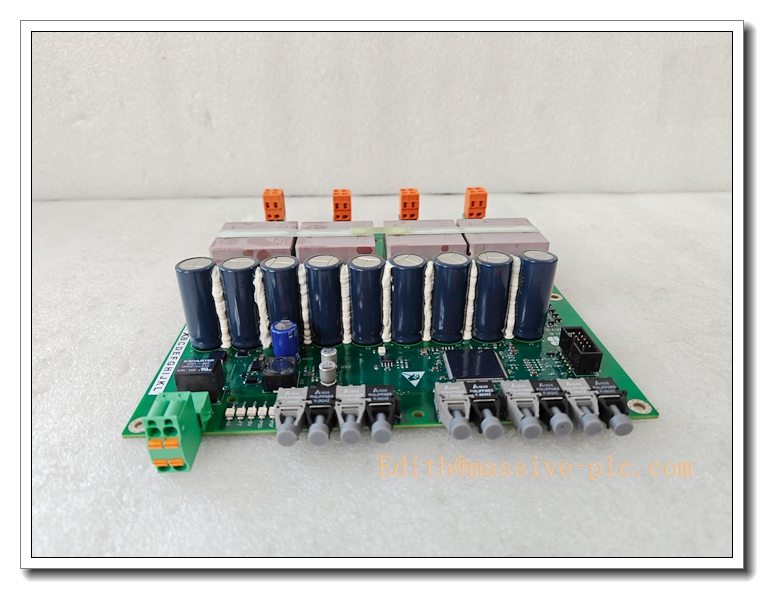

ABB GDC801B101 3BHE051592R0101 Digital Output Control Board



Product Core Introduction

The GDC801B101 (3BHE051592R0101) is an ABB high-performance digital output control board for industrial drive & power control systems. It serves as the signal drive and interface unit to transmit control pulses and digital command signals for power semiconductor devices, widely used in ABB PEC800 / AC 800PEC excitation & converter control systems. It features high-speed signal transmission, channel short-circuit & over-temperature protection, group galvanic isolation and rugged industrial PCB construction for harsh power plant and heavy industry environments.

GDC801B102 3BHE051592R0102

Main Technical Specifications

  • Part No: 3BHE051592R0101
  • Type: GDC801B101 Gate Drive / Digital Output Board
  • Supply Voltage: 24 VDC (19.2 ~ 30 VDC)
  • Output Type: Sourcing digital outputs, current-limited
  • Channel: 16 digital output channels, divided into 2 isolated groups (8 ch per group)
  • Single channel continuous output: 0.5A
  • Isolation: Group-wise isolation from ground
  • Protection: Short-circuit protection, over-temperature, overvoltage protection
  • Max field cable length: 600 m
  • Power dissipation: Typ. 2.1 W
  • Modulebus current consumption: 80 mA @ +5V
  • Operating temperature: -20 ℃ ~ +60 ℃
  • Storage temperature: -40 ℃ ~ +85 ℃
  • Enclosure rating: IP20 (for board assembly inside cabinet)
  • Certifications: CE, cULus



Recommended same-series ABB models

  1. PCD231B (3BHE025541R0101) – Excitation control board
  2. PCD232A (3BHE022293R0101) – PEC800 control module
  3. GFD233A (3BHE022294R0101) – Feedback signal board
  4. SPBRC410 – Controller unit for PEC series
  5. GDC801B series variants for gate drive



Quality Control Test SOP

  1. Visual Inspection: PCB trace, solder joint, capacitor, connector and label integrity check, no scratch or corrosion.
  2. Continuity & Isolation Test: Check group isolation between channels, short circuit detection.
  3. Power-on Burn-in Test: 24VDC powered for 4h under rated ambient temperature; monitor temperature and output status.
  4. Channel Function Test: Trigger each DO channel one by one, verify output level and current limiting response.
  5. Protection Test: Simulate short-circuit at output terminal, confirm module triggers protection and recovers after fault removal.
  6. Communication Interface Test: Verify stable Modulebus communication with PEC800 controller.
  7. EMC Conformance Test: ESD, fast transient burst and radiated immunity test per IEC 61000 series.
  8. Final packaging & serial number recording.

GDC801B102 3BHE051592R0102

New Module Installation

Power OFF & ESD protection mandatory before operation

  1. Disconnect all system power, wear anti-static wristband.
  2. Remove cabinet cover and extract the old board by unlocking the retention clips.
  3. Align the GDC801B101 edge connector with the backplane slot, insert smoothly until fully seated.
  4. Lock fixing clips, connect field wiring to the terminal block following wiring diagram.
  5. Double-check wiring polarity, ensure no short circuit between output channels.
  6. Close cabinet, restore power, download firmware and perform channel commissioning.
  7. Run offline signal test to validate all 16 output channels before putting online.

Note: Not hot-swappable in most PEC800 power converter configurations.



Application Scenarios & Features

Application Scenarios

  • Generator excitation control systems in thermal / hydro power plants
  • Medium voltage variable frequency converters
  • Renewable energy converter control (wind / solar)
  • Heavy industry high-power drive control, metallurgy rolling mill drives
  • ABB AC800PEC / PEC800 series control cabinets

Key Features

✅ High-speed gate pulse drive for power semiconductors ✅ 2 groups of isolated channels to reduce cross-interference ✅ Built-in hardware protection for short-circuit and overtemperature ✅ Rugged PCB design, vibration resistance for power station cabinet ✅ Seamless integration with ABB PEC800 controller family ✅ Compact board layout, easy maintenance and spare replacement



FAQ

Q1: Module status LED alarm after power up? A: Check 24VDC supply voltage first. If voltage normal, inspect terminal wiring for short circuit. Remove field cables and power on again; if alarm disappears, fault comes from field load side.

Q2: Individual output channel no response? A: Verify channel configuration in control software. Check for overcurrent trip history; the channel may be latched protected. Power cycle to reset and test.

Q3: Is GDC801B101 interchangeable with other GDC series boards? A: Not fully interchangeable. Must match firmware version and hardware revision of host controller. Confirm part number 3BHE051592R0101 before replacement.

Q4: What is the typical service life and spare storage requirement? A: Designed for 10+ years cabinet service life. Store in dry, temperature-controlled warehouse with anti-static packaging, avoid humidity and dust.

Q5: Can I replace the board without stopping the whole generator? A: No. For excitation system, cabinet power must be cut off before board replacement. Hot swap is not supported.
