ABB GDC801A (3BHE024747R0101) Medium‑Voltage Drive Control Board
Product Overview
GDC801A, part number 3BHE024747R0101, is a core digital control board manufactured by ABB for medium‑voltage drive systems. It serves as the signal processing and logic coordination unit inside ABB ACS2000 / ACS5000 medium‑voltage converters, responsible for IGCT device driving signal distribution, feedback signal acquisition, system protection and internal module communication. This PCB is widely used for original equipment assembly and field retrofit & spare‑part replacement for ABB medium‑voltage variable‑frequency drives.

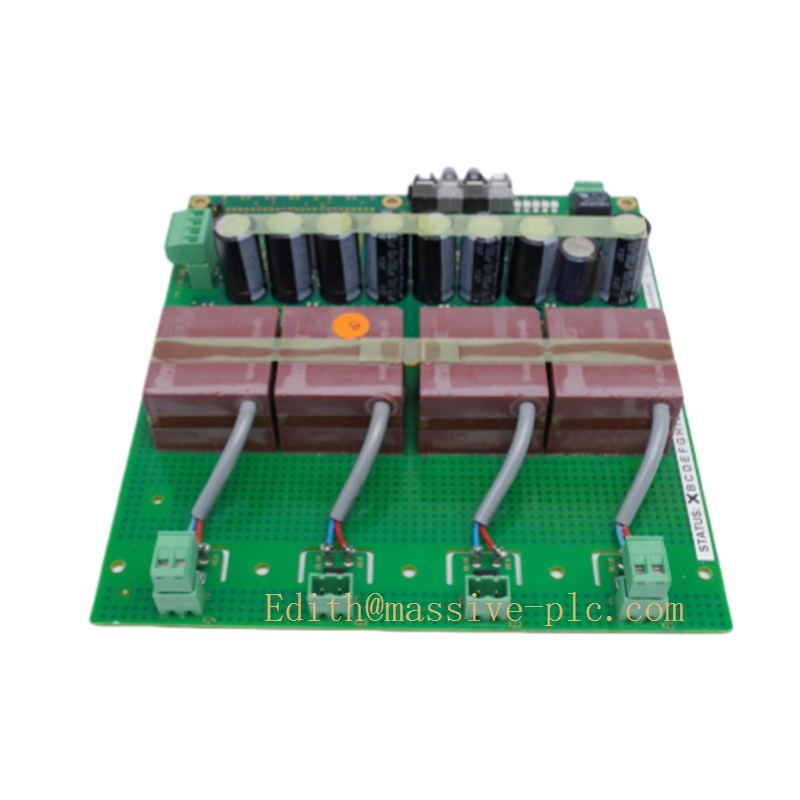

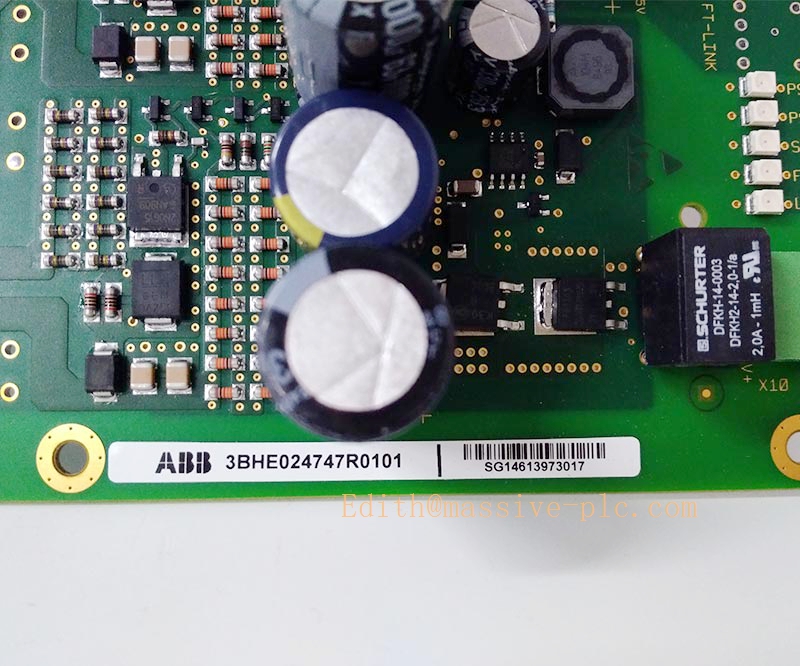

3BHE024747R0101 GDC801A
Key Specifications
| Item | Parameter |
|---|---|
| Part Number | 3BHE024747R0101; Type: GDC801A |
| Manufacturer | ABB |
| Product Category | Medium‑voltage drive control logic board |
| Compatible Drive Series | ACS2000, ACS5000 medium‑voltage converter systems |
| Control Power Supply | 24 V DC (±10%) |
| Operating Temperature | -20 °C ~ +60 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Protection Class | IP20 (rack‑mount inside drive cabinet); conformal coated PCB for industrial harsh environment |
| Isolation Voltage | 2500 V AC channel‑to‑channel isolation |
| Communication | Internal high‑speed parallel bus for drive internal modules; interface for status feedback to main controller |
| Weight | Approx. 1.8 kg |
| Mounting | Plug‑in rack slot installation inside MV drive cabinet |
Main Applications
- ABB ACS2000 medium‑voltage variable frequency drive for fan, pump and compressor
- ABB ACS5000 medium‑voltage drive for large‑capacity motor speed regulation
- Heavy‑industry motor control: mining, cement, metallurgy, water treatment, power plant auxiliary equipment
- On‑site maintenance, spare‑parts replacement and system retrofitting of existing ABB medium‑voltage drive units
- Large‑scale industrial variable‑speed projects requiring high‑reliability medium‑voltage power conversion
Related Series Models
- GDC801A 3BHE024747R0101 Standard control board for ACS2000 / ACS5000
- GDC802A 3BHE024748Rxxxx Enhanced variant for higher‑power MV drive
- GDC803A 3BHE024749Rxxxx Special‑version for customized medium‑voltage converter configurations

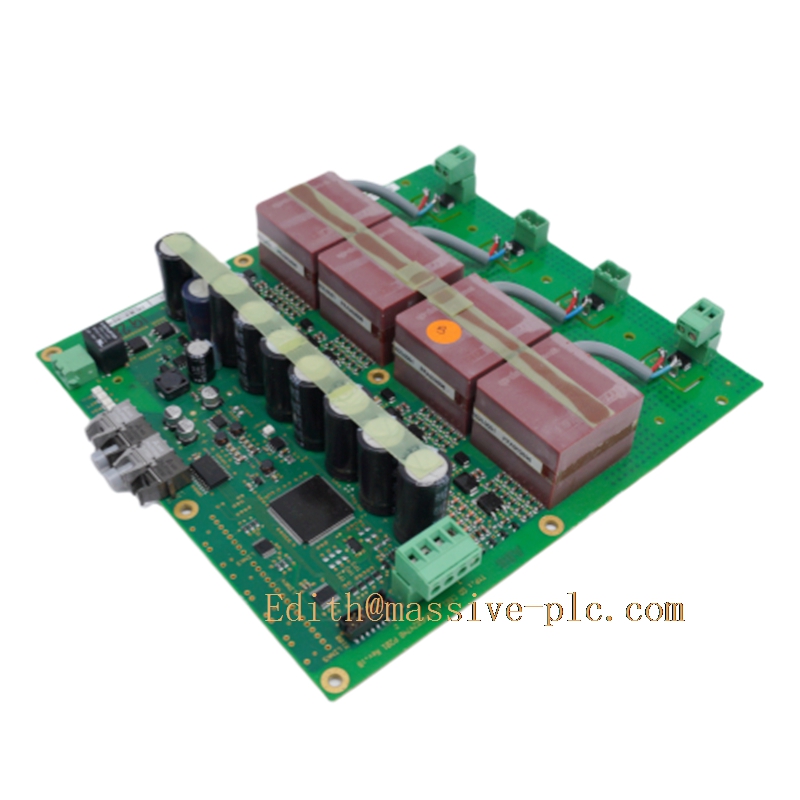

3BHE024747R0101 GDC801A
Core Features
- Centralized signal coordination: Collect multi‑point feedback signals from power units, voltage and current sensors inside the medium‑voltage drive, distribute timing and trigger commands for IGCT power devices.
- Comprehensive hardware protection: Integrates over‑voltage, over‑current, over‑temperature and short‑circuit detection logic; triggers rapid system shutdown to protect power semiconductors once fault occurs.
- Industrial conformal‑coated PCB: Anti‑dust, anti‑humidity and anti‑corrosion coating adapts to heavy‑duty workshop environment, improves long‑term operational stability.
- Plug‑in rack‑mount design: Convenient for on‑site replacement, reduces drive downtime during maintenance.
- High‑voltage isolation design: Reinforced isolation between low‑voltage control circuit and high‑voltage power circuit to enhance operator and equipment safety.
- Fault diagnosis capability: Captures drive running status and fault codes, transmits diagnostic data to main control unit for troubleshooting.
Main Functions
- Receive operation commands from the main drive controller, generate and distribute synchronized trigger signals for IGCT power modules.
- Acquire real‑time analog & digital feedback signals including bus voltage, output current, power unit temperature.
- Execute multi‑level hardware and software protection for the medium‑voltage converter system.
- Realize internal high‑speed data exchange between different functional boards inside the drive cabinet.
- Record fault events and status parameters, support drive fault diagnosis and post‑failure analysis.
- Work cooperatively with other power and interface boards to complete closed‑loop speed & torque regulation for high‑power AC motors.
