Description

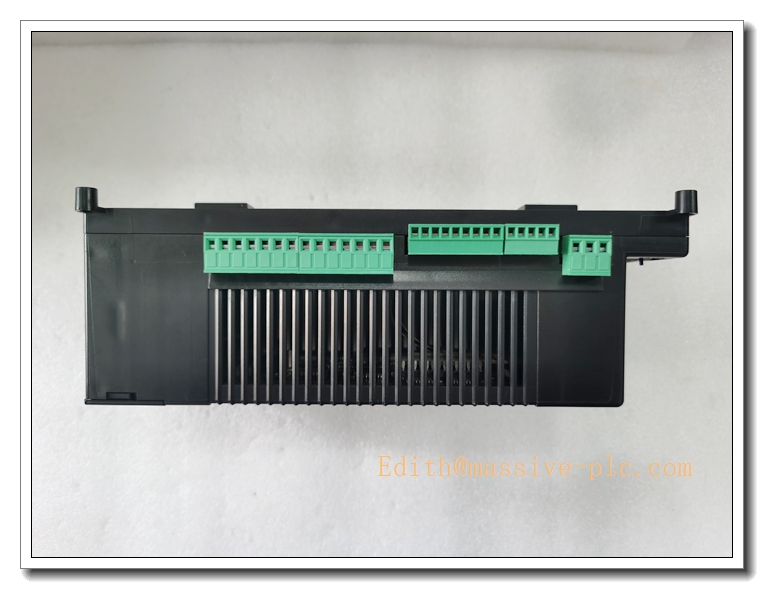

ABB CS3107KT92 Procontic CS31 CPU Control Unit, 07KT92 Programmable Controller Module, Distributed Automation PLC Spare Part
2. Product Application
CS3107KT92 is the core CPU unit of ABB Procontic CS31 decentralized automation system. It performs logic control, PID calculation, signal acquisition and data communication between field I/O and upper monitoring system.
- Power plant auxiliary equipment control
- Petrochemical process monitoring and interlock control
- Metallurgy plant furnace and rolling line automation
- Cement production line process control
- Water & wastewater treatment automation system
- Building automation and industrial machine control
- Retrofit and spare replacement for old ABB CS31 control system

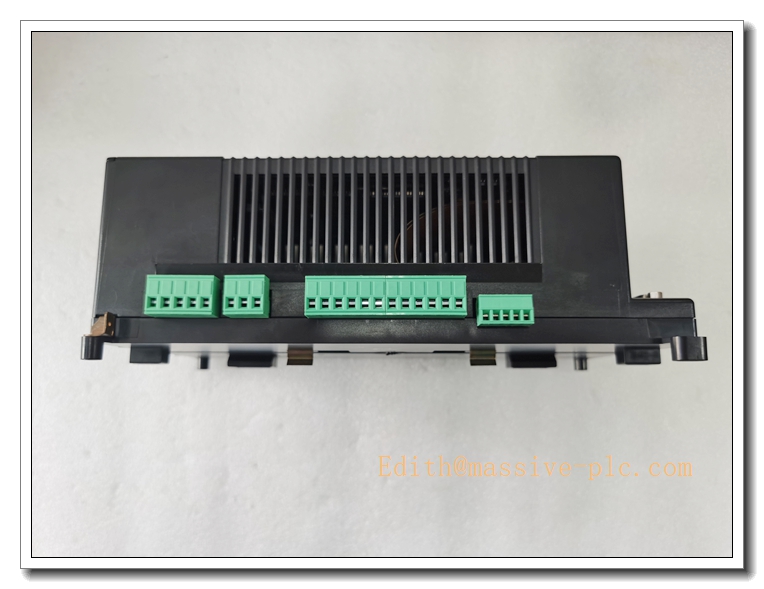

CS3107KT92
3. Specifi
cations
- Part Number: CS3107KT92 (Alias: 07KT92, GJR5250500R0262)
- Brand: ABB
- Series: Procontic CS31
- Product Type: CPU Control Unit / Programmable Controller
- Mounting: DIN rail mounting inside control cabinet
- Protection Class: IP20
- Power Supply: 24VDC
- Weight: Approx. 1.2 kg
- Condition: Original new / refurbished spare available
- Compliance: CE, IEC industrial control standard
4. Parameters
- Built-in I/O: 12 × 24VDC digital inputs, 8 × 24VDC / 0.5A transistor outputs; 4 × 12-bit analog inputs, 2 × 12-bit analog outputs
- Memory: 14K FLASH EPROM
- Communication: 2 × programmable RS232 ports, CS31 system bus
- Control function: Ladder logic programming, PID closed-loop regulation
- Operating temperature: -20°C ~ +60°C
- Storage temperature: -40°C ~ +70°C
- Relative humidity: 5%~95% RH, non-condensing
- Status indicator: Front panel LED for power, run, fault and communication status
5. Key Features
- Integrated CPU with built-in digital & analog I/O, compact distributed control solution
- Support PID control and ladder logic programming for flexible process automation
- Dual RS232 serial ports and CS31 system bus for multi-node distributed networking
- DIN rail mount design, easy deployment in cabinet for decentralized field control
- Real-time fault diagnosis via front LED indicators, simplify troubleshooting
- Stable operation under industrial vibration and electromagnetic interference environment
- Ideal replacement spare part for legacy ABB Procontic CS31 automation systems
6. ABB Same Series Related Models (≥6)
- CS3107KT92 (07KT92)
- 07KT93
- 07KT94
- 07KT95
- 07AI91
- 07AO91
- 07DI92
7. Maintenance
- Routine inspection: Check module LED status, terminal tightness and bus connector condition every 6–12 months
- Clean dust on module housing with dry compressed air; liquid solvent cleaning is forbidden
- ESD protection must be applied during disassembly, anti-static wristband required
- If communication failure occurs, check CS31 bus cable, terminal connection and station address
- Do not energize if condensation or corrosion is found on terminals and PCB
- We support function testing, refurbishment and spare replacement service for this CS31 CPU unit

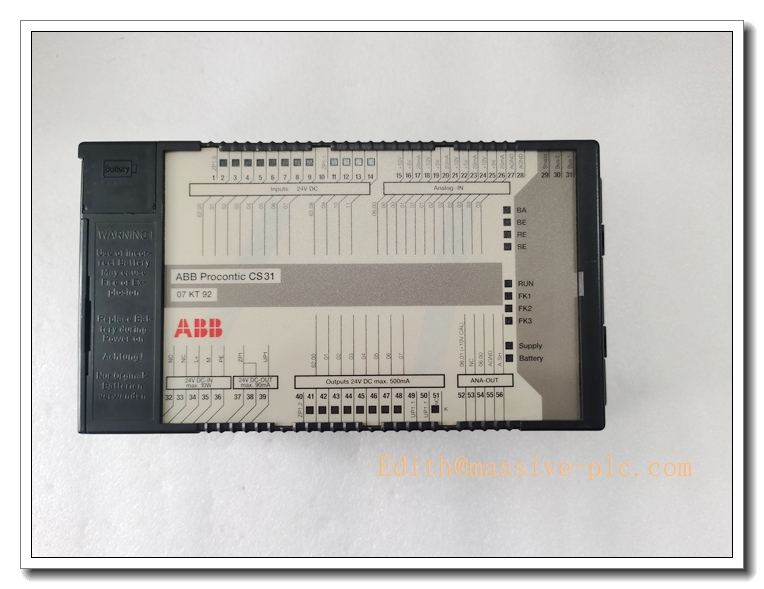

CS3107KT92
8. Installation
- Cut off the 24VDC power supply of control cabinet and confirm zero voltage before operation.
- Wear anti-static wristband to prevent electrostatic damage to internal electronic components.
- Clip CS3107KT92 module onto DIN rail inside cabinet and lock the mounting buckle.
- Wire 24VDC power, digital/analog field signals and CS31 bus cable to corresponding terminals.
- Check wiring polarity and tightness to avoid short circuit.
- Connect RS232 programming cable, download control program and set station parameters.
- Restore power supply, check RUN LED status, verify bus communication with remote I/O modules.
- Conduct field signal test, run no-load commissioning and validate control & interlock logic.
