Description

ABB CI867K01 3BSE043660R1 Modbus TCP Communication Interface Kit, AC800M 800xA Ethernet Communication Module, Industrial Process Control Spare Part



Product Application

CI867K01 is a complete communication kit including CI867 module and TP867 baseplate for ABB AC800M / 800xA DCS system. It implements Modbus TCP communication between AC800M controller and third-party Modbus TCP devices, such as transmitters, VFDs, meters and remote PLCs. It exchanges real-time process data, alarm signals and setpoint values.

  • Power plant auxiliary control system Modbus TCP device integration
  • Petrochemical plant multi-brand instrument and variable drive data collection
  • Oil & gas pipeline station control network interconnection
  • Metallurgy rolling mill and furnace third-party equipment communication
  • Cement plant kiln auxiliary equipment data acquisition
  • Water & wastewater treatment plant instrument communication retrofit
  • Legacy ABB AC800M system spare replacement and network expansion

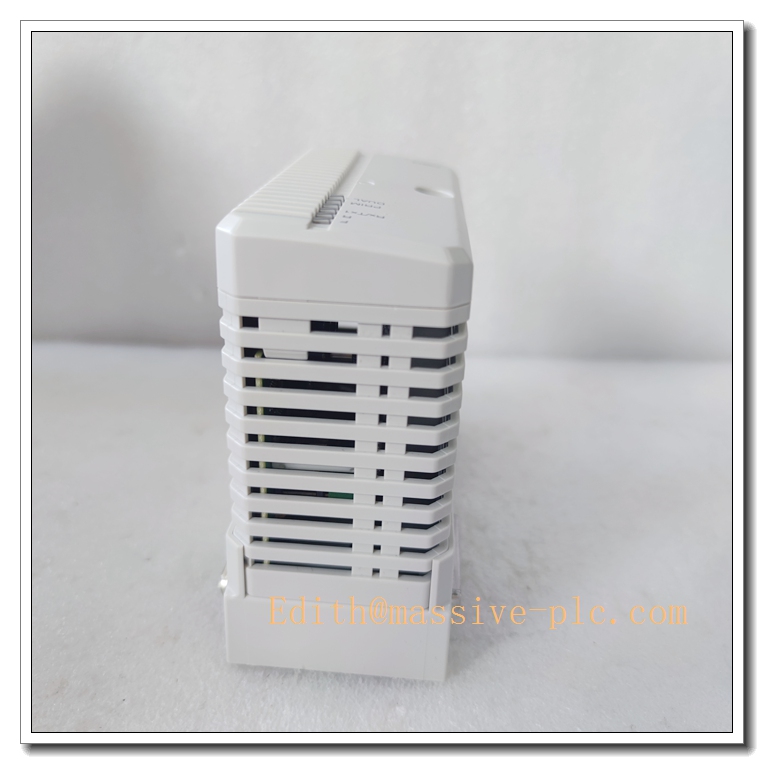

CI867K01 3BSE043660R1

Specifications

  • Part Number: CI867K01, 3BSE043660R1
  • Brand: ABB
  • Product Type: Modbus TCP Communication Interface Kit (CI867 + TP867 Baseplate)
  • Compatible System: ABB AC800M, 800xA System

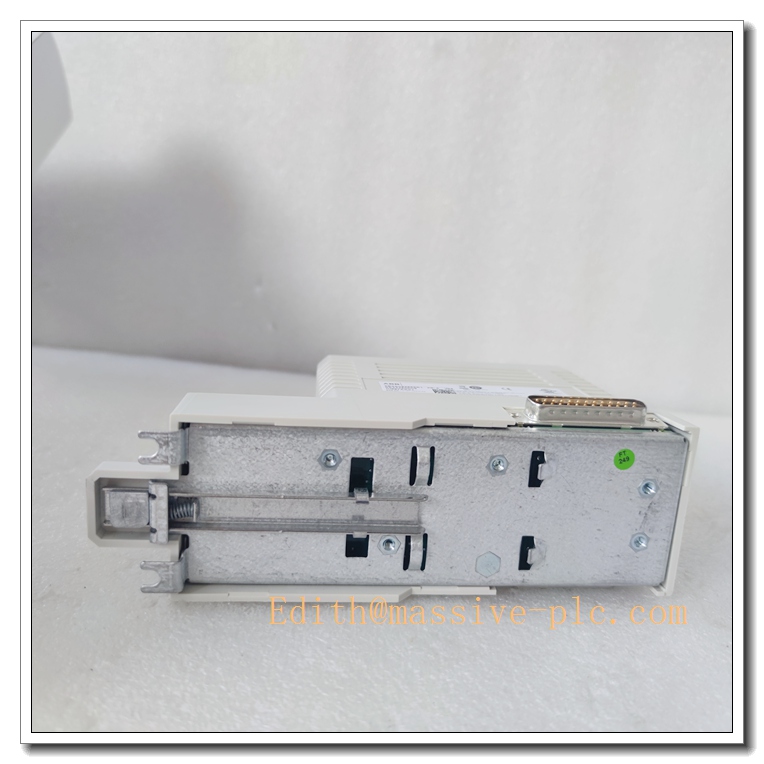

  • Mounting: Rack slot mounting on CEX bus backplate
  • Dimension: 127.5 × 186 × 59 mm
  • Weight: Approx. 0.7 kg
  • Power supply: 24VDC supplied via TP867 baseplate
  • Power consumption: Max 8W

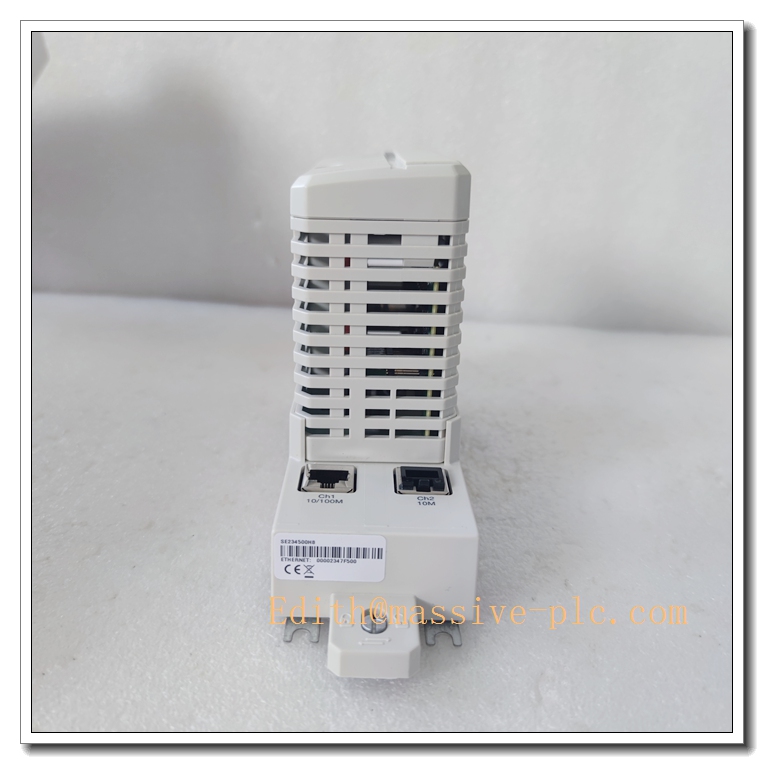

  • Ethernet Ports: Dual RJ45, Ch1:10/100Mbps, Ch2:10Mbps
  • Max modules on CEX bus: Up to 12 modules per controller
  • Condition: Original new / refurbished spare available
  • Compliance: CE, IEC EMC standard



Parameters

  • Communication Protocol: Modbus TCP (Master / Slave configurable)
  • Hot Swap: Supported
  • Operating Temperature: 0°C ~ +55°C
  • Storage Temperature: -40°C ~ +70°C
  • Relative Humidity: 5%~95% RH, non-condensing
  • Pollution Degree: Degree 2

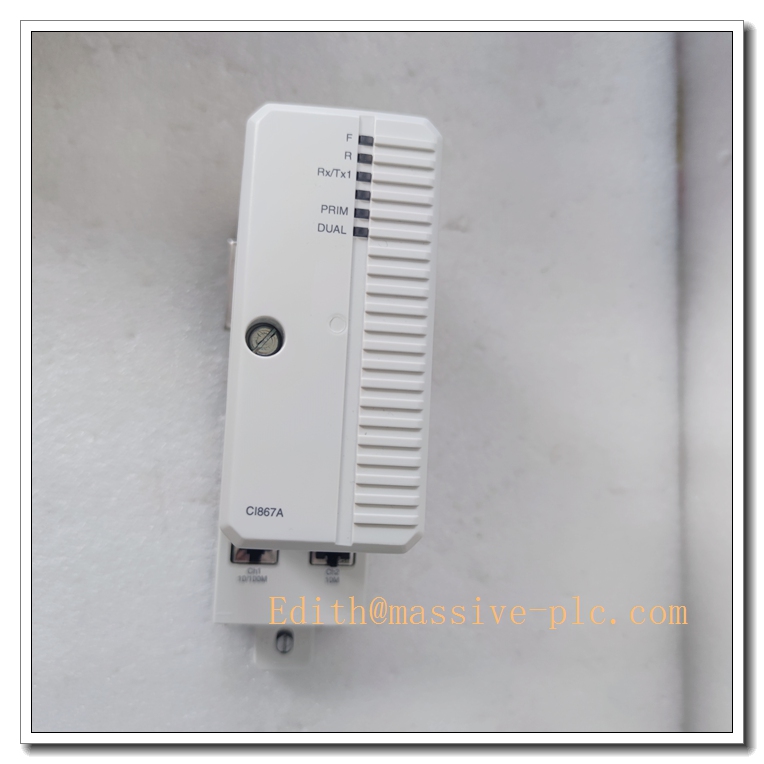

  • Status Indicator: Front panel LED indicators for power, run, bus fault and Ethernet communication status
  • Diagnostic: Module self-test, Ethernet link fault, Modbus communication timeout detection



Key Features

  1. Complete Modbus TCP communication kit, consists of CI867 communication board and TP867 baseplate
  2. Dual Ethernet RJ45 ports, flexible network topology for connection to Modbus TCP field devices
  3. Supports Modbus TCP master or slave mode, easy integration with third-party industrial equipment
  4. Hot-swap capable, module replacement without full DCS system shutdown
  5. Connects to AC800M controller via CEX bus, high-speed data exchange with CPU
  6. Front LED diagnostic indicators for fast troubleshooting of network and communication faults
  7. Compact standard rack design, saves cabinet installation space
  8. Configured via Compact Control Builder software, seamless integrated with 800xA control system

CI867K01 3BSE043660R1

ABB Same Series Related Models (≥6)

  1. CI867K01 3BSE043660R1
  2. CI854AK01 3BSE020508R1
  3. CI857K01 3BSE018108R1
  4. CI860K01 3BSE030220R1
  5. CI861 3BSE013252R1
  6. CI862K01 3BSE027070R1
  7. CI865K01



Maintenance

  • Routine inspection: Check module LED status, CEX bus connector and Ethernet cable connection every 6–12 months
  • Clean module surface with dry compressed air; liquid solvent cleaning is strictly prohibited
  • ESD protection must be adopted during disassembly, anti-static wristband required
  • If Modbus communication timeout or link loss occurs, check Ethernet wiring, IP address configuration and slave device status
  • Do not energize the module if PCB corrosion, burn marks or condensation are found
  • We support function testing, refurbishment and spare replacement service for this CI867K01 communication kit



Installation

  1. Hot-swap replacement can be performed following system safety procedure or cut off cabinet power supply.
  2. Wear anti-static wristband to prevent electrostatic damage to PCB and communication chips.
  3. Install TP867 baseplate into rack slot, insert CI867 module and lock fastening latch.
  4. Connect shielded Ethernet cables to RJ45 ports, properly ground cable shielding.
  5. Configure Modbus TCP mode, IP address, slave station and data mapping parameters via Compact Control Builder.
  6. Check all wiring and confirm no loose connections.
  7. Restore power supply, verify CEX bus communication.
  8. Test data read/write with Modbus TCP field devices, confirm stable data exchange and complete commissioning.
