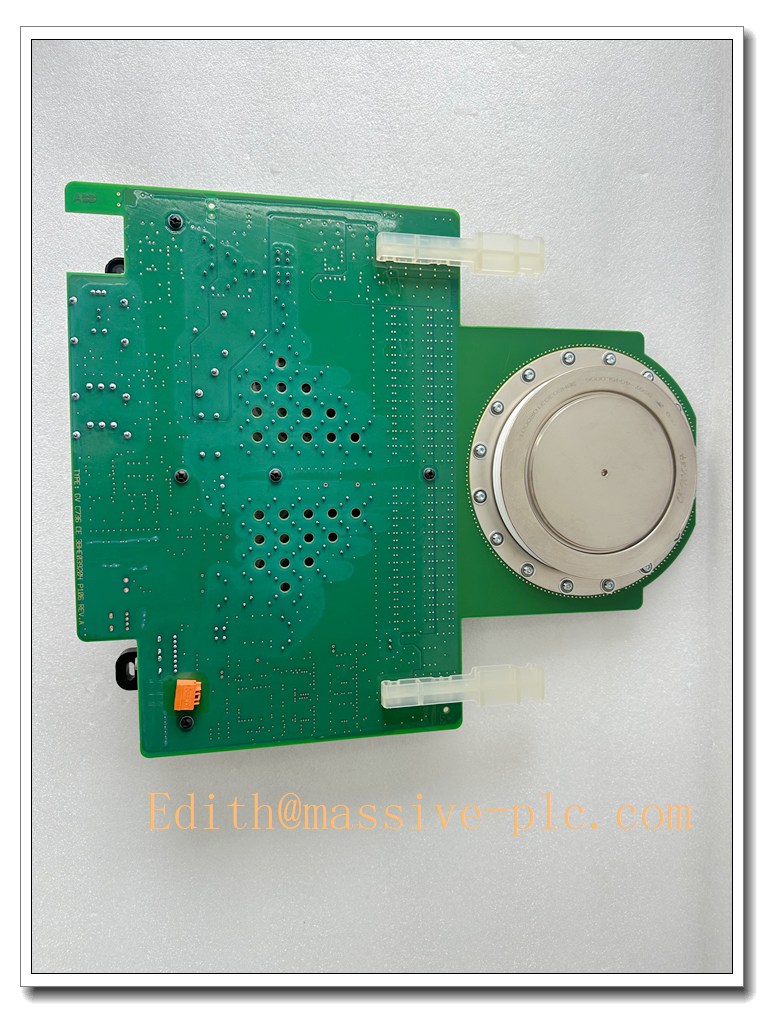

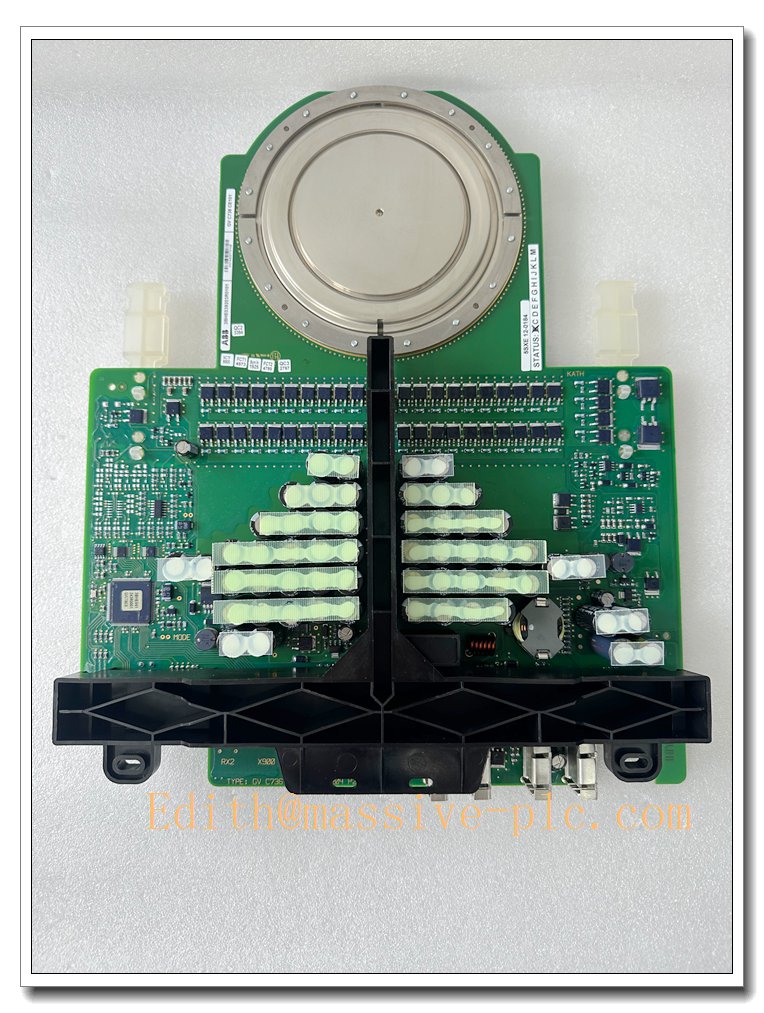

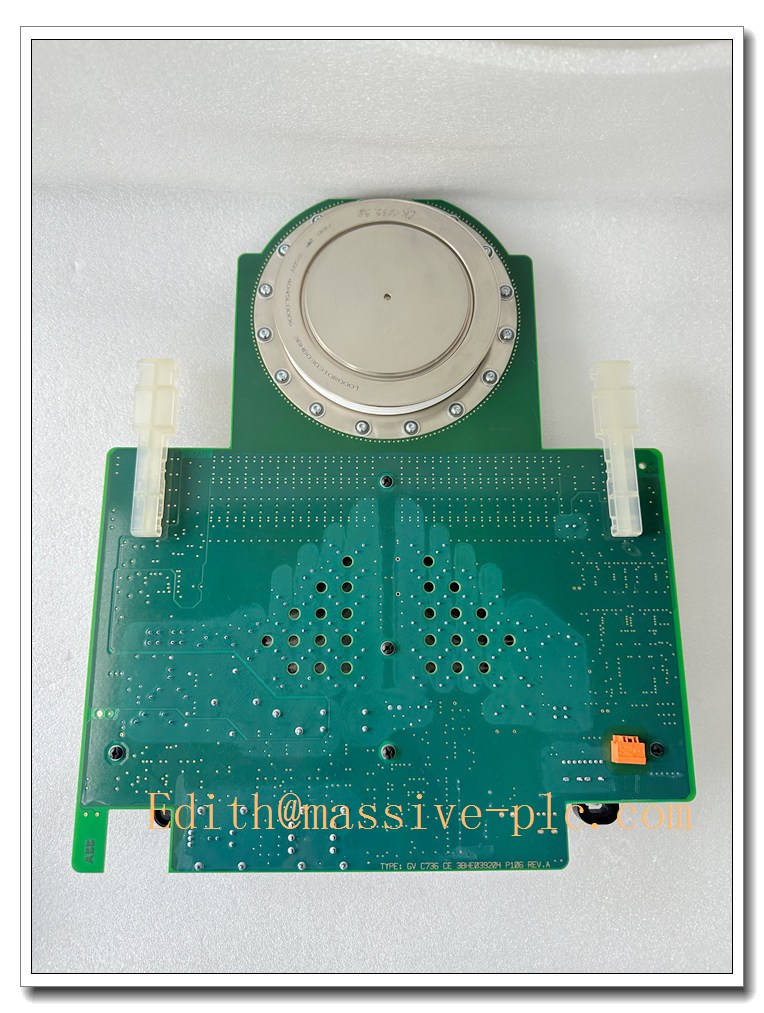

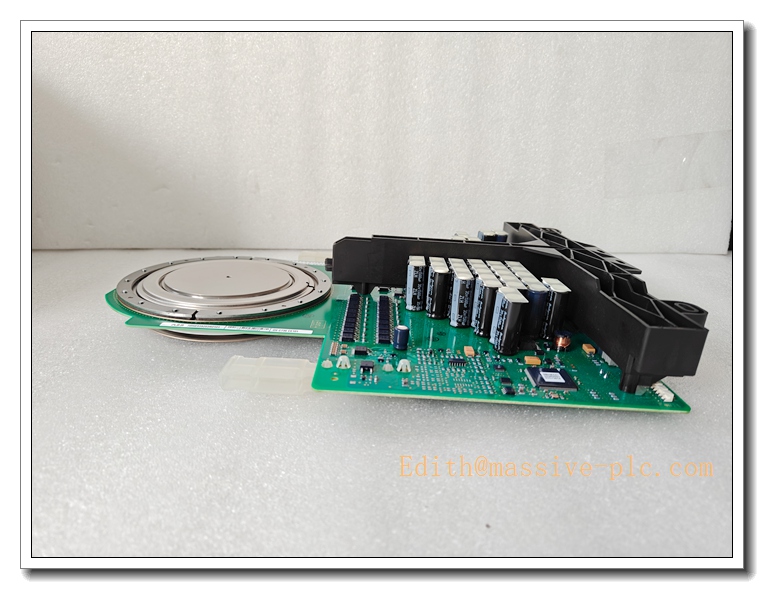

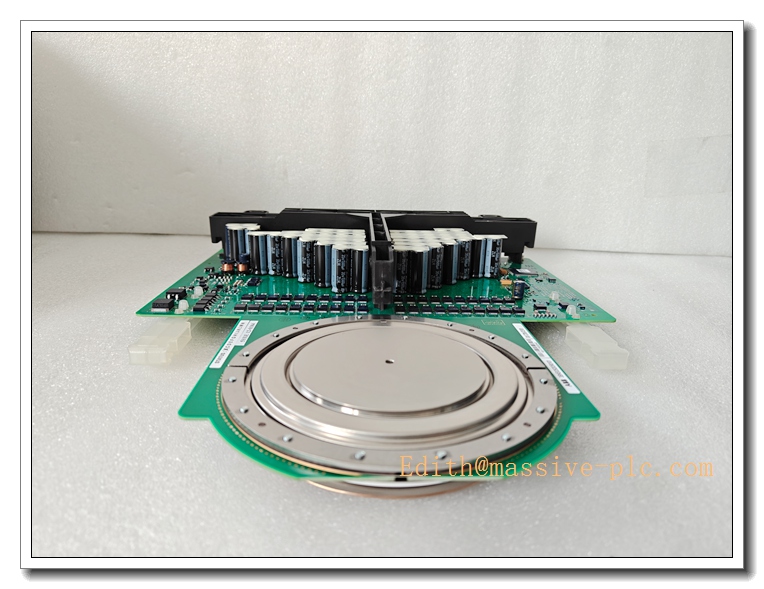

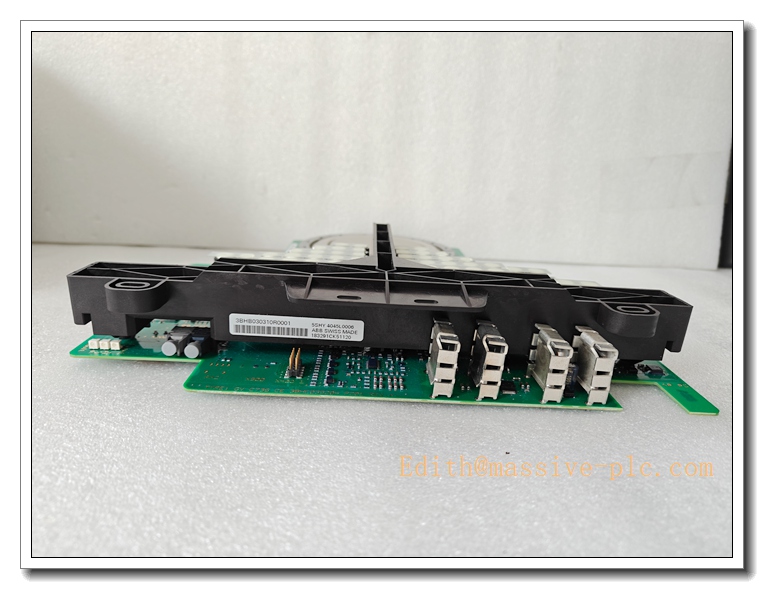

Original ABB 4500V 4000A Press-pack IGCT Module 5SHY4045L0006 (3BHB030310R0001) with Matched Gate Drive Unit GVC736CE101 (3BHE039203R0101) for ACS6000 / PCS6000 Medium Voltage Drives

Description

Original ABB 4500V 4000A Press-pack IGCT Module 5SHY4045L0006 (3BHB030310R0001) with Matched Gate Drive Unit GVC736CE101 (3BHE039203R0101) for ACS6000 / PCS6000 Medium Voltage Drives

Core Product Overview

This official ABB power assembly integrates a high-power asymmetric IGCT device and its dedicated OEM gate drive board, serving as the core switching component for ABB medium-voltage variable frequency drive systems. The dual part number system is adopted for global logistics and after-sales management: 5SHY4045L0006 is the semiconductor device model, while 3BHB030310R0001 is the official ABB spare part order code for the identical module. Correspondingly, GVC736CE101 represents the commercial gate drive unit model, and 3BHE039203R0101 is the standardized ABB inventory part number.

Featuring 91 mm wafer press-pack packaging, double-sided thermal dissipation and robust short-circuit withstand capability, this IGCT delivers ultra-low switching loss and outstanding power cycling performance. The supporting GVC736CE101 gate drive realizes fully isolated optical fiber signal control, high-speed fault detection and comprehensive protection functions. The complete assembly guarantees stable, safe and high-efficiency operation for heavy-duty industrial power conversion and transmission equipment under extreme working conditions.

5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101

Main Technical Specifications

3.1 IGCT Module (5SHY4045L0006 / 3BHB030310R0001)

• Device Category: Asymmetric Integrated Gate-Commutated Thyristor (A-IGCT)
• Rated Blocking Voltage: 4500 V
• Max Controllable Turn-off Current: 4000 A
• Nominal RMS Operating Current: 1400 A
• Short-Circuit Withstand Capability: 30 kA peak
• Max Junction Temperature: 125 °C
• Typical Switching Frequency: ≤ 500 Hz
• Standard DC Link Voltage: 2800 V
• Packaging Type: Press-pack (pressure contact), double-sided cooling
• Wafer Size: 91 mm high-power wafer
• Manufacturer: ABB Switzerland
• Industrial Certification: CE, UL, IEC industrial standard compliance

3.2 Gate Drive Unit (GVC736CE101 / 3BHE039203R0101)

• Supply Voltage: 24 VDC auxiliary power
• Signal Interface: Isolated optical fiber transceiver
• Main Functions: Precise turn-on/turn-off timing, over-current lockout, over-temperature protection, short-circuit fault trip, real-time status feedback
• Response Speed: Microsecond-level fault protection
• Compatibility: One-to-one dedicated drive for 5SHY4045L0006 IGCT
• Anti-Interference: Complete electrical isolation for harsh EMI industrial environments

ABB Same-Series Model Recommendations (8 Models)

The following 8 authentic ABB 4500V-class IGCT models share unified press-pack packaging and system compatibility, covering full power grades for medium-voltage drive and power grid applications:

• 5SHY3545L0002 (3300A/4500V): Medium-current standard model, widely used in general-purpose medium-voltage inverters
• 5SHY3545L0010 (3300A/4500V): Optimized low-loss version for continuous light-to-medium load operation
• 5SHY4030L0006 (3000A/4500V): Compact low-power variant for space-limited cabinet installation
• 5SHY4045L0006 (4000A/4500V): Standard high-current model (the original matched model of GVC736CE101)
• 5SHY5045L0001 (5000A/4500V): Super high-current model for heavy overload industrial main drives
• 5SNA3000G450300 (3000A/4500V): New-generation low-switching-loss industrial optimized model
• 5SNA4000G450300 (4000A/4500V): Updated upgraded version with extended service life and higher stability
• 5SHY2545L0001 (2500A/4500V): Economical small-current model for medium-voltage auxiliary power units

5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101

Quality Control & Testing Standard Operating Procedure (SOP)

All original ABB modules strictly execute ABB global factory standards and IEC 60747-6 semiconductor testing specifications. The complete QC procedure is as below:

• Visual & Dimensional Inspection: Verify module surface integrity, pressure contact flatness, coding consistency and drive board circuit integrity; eliminate deformation, oxidation and mechanical damage.
• Static Parameter Test: Test off-state withstand voltage, leakage current, gate impedance and diode static characteristics to ensure full compliance with factory tolerance standards.
• Dynamic Switching Test: Conduct rated voltage/current switching tests to verify turn-on time, turn-off time, tail current and switching loss consistency.
• Gate Drive Functional Test: Simulate real industrial working conditions to test optical signal communication, power supply stability and fault protection triggering accuracy.
• Temperature Cycling Test: Implement -20 °C ~ 125 °C cyclic temperature impact test to verify structural and thermal stability.
• Full-Load Aging Test: 2-hour continuous full-power aging operation to screen early failure defects and ensure long-term operational reliability.
• Final Calibration & Vacuum Packaging: Re-inspect all electrical parameters, archive test data, and adopt moisture-proof vacuum packaging for international transportation and long-term storage.

New Module Installation Specification

• Pre-Installation Preparation: Completely cut off all AC/DC power sources; fully discharge DC bus capacitors to zero potential; clean heat sink contact surfaces to ensure flat, dust-free and scratch-free status; prepare insulated tools and calibrated torque wrenches.
• Environmental Requirements: Install in dry, dust-free, low-corrosion industrial cabinets; prohibit live operation and hot-swap replacement; ambient operating temperature: -20 °C ~ +40 °C with sufficient ventilation.
• Mechanical Installation: Place the IGCT press-pack module in the designated position; apply uniform vertical pressure to avoid unilateral stress distortion; fasten screws per standard torque values to ensure optimal thermal contact.
• Electrical & Drive Wiring: Firmly fix the drive board; correctly connect 24VDC auxiliary power and insert optical fibers following signal definition; strictly check for short circuit and open circuit risks.
• Post-Installation Commissioning: Confirm all mechanical and electrical connections are reliable; perform no-load power-on test to verify normal drive signals without fault alarms; conduct step-by-step load testing to confirm stable switching performance.

Application Scenarios & Product Features

7.1 Typical Application Scenarios

• ABB ACS6000 / PCS6000 medium-voltage high-power variable frequency drive systems
• Metallurgical rolling mills, steel plant heavy-duty main transmission systems
• Mining hoists, large-scale fans and water pump medium-voltage speed regulation equipment
• Power grid FACTS flexible transmission devices and HVDC converter valve units
• Offshore platforms, chemical and petrochemical high-power power conversion systems
• Rail transit energy storage and industrial high-power rectifier/inverter equipment

7.2 Core Product Features

• Extreme Operational Reliability: Industrial-grade press-pack structure with strong vibration resistance and pressure tolerance, adaptable to harsh industrial environments.
• Low Energy Loss: Optimized chip design minimizes switching and conduction losses, reducing overall system energy consumption.
• Multi-Level Safety Protection: Matched dedicated gate drive provides instantaneous fault protection to prevent module burnout and system breakdown.
• High EMI Immunity: Optical fiber isolation control eliminates electromagnetic interference, ensuring stable operation in complex electromagnetic fields.
• Original Standard Compatibility: 100% original ABB specification, fully interchangeable with factory default components for easy maintenance and upgrade.

5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101

Frequently Asked Questions (FAQ)

• Q1: Why does one set of assembly have four part numbers? A1: ABB adopts independent coding systems for devices and spare parts. 5SHY4045L0006 is the semiconductor model, 3BHB030310R0001 is the spare part order number for the IGCT module; is the drive board commercial model, and 3BHE039203R0101 is the official spare part code for the drive unit. The four codes correspond to one complete original power switching assembly.
• Q2: Is hot swapping supported during system operation? A2: Hot-swap operation is strictly prohibited. All power supplies must be disconnected and DC capacitors fully discharged before any disassembly or installation to avoid module breakdown and personal safety hazards.
• Q3: What are the dominant failure causes of this IGCT assembly? A3: Main failure factors include poor heat dissipation leading to over-temperature, loop short-circuit/over-current impact, abnormal drive signal output, long-term overload operation, and cabinet dust/corrosion contamination.
• Q4: Can other 4500V ABB IGCT models replace this unit directly? A4: Same-voltage-grade and current-matched ABB IGCT models are mechanically compatible. However, professional parameter debugging and drive logic verification are required before formal replacement to avoid system mismatch.
• Q5: What is the design service life and warranty condition? A5: Under rated working conditions and standardized maintenance, the design service life reaches 10 years. All new original modules come with industrial-grade quality warranty and global ABB technical support.
