Name: A413240 Industrial Automation Control Board - MASSIVE
Brand: Other

Description

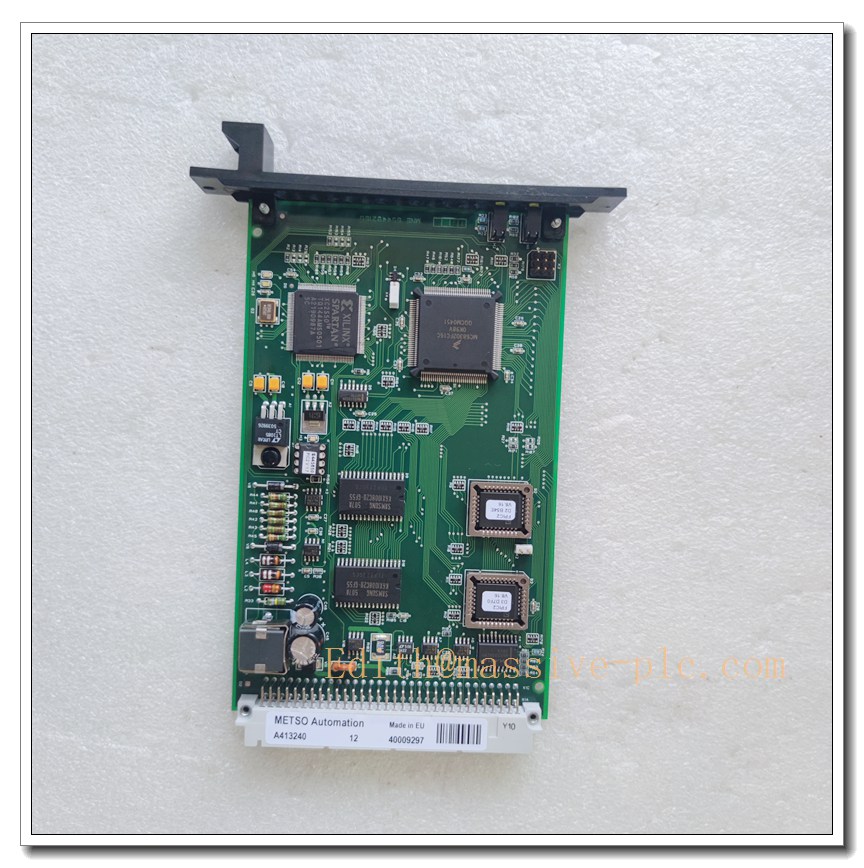

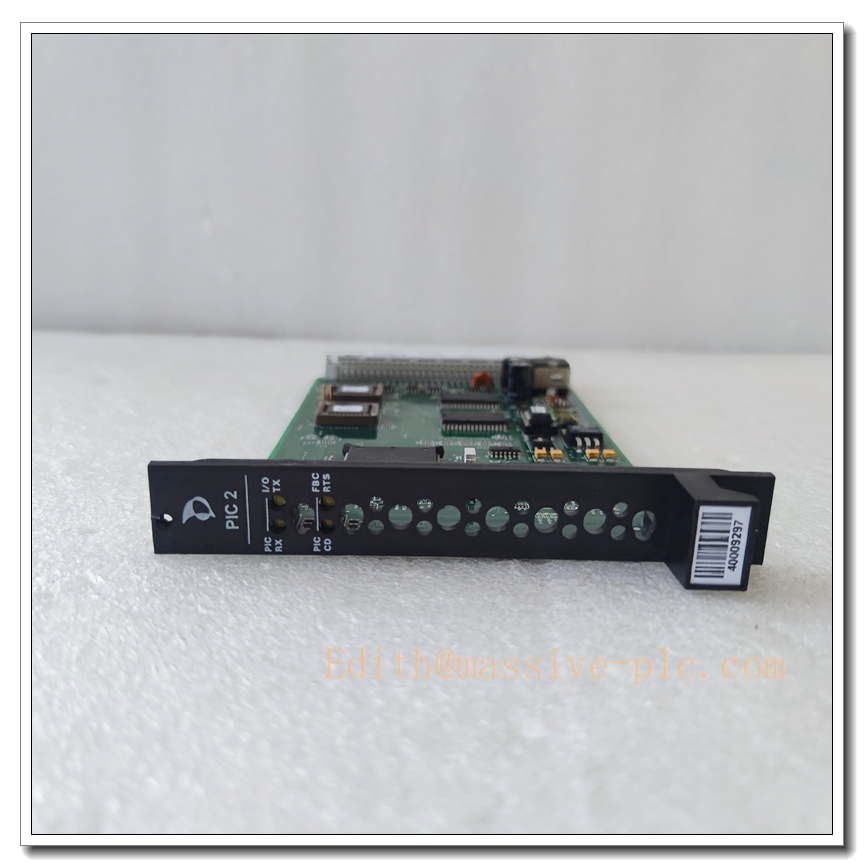

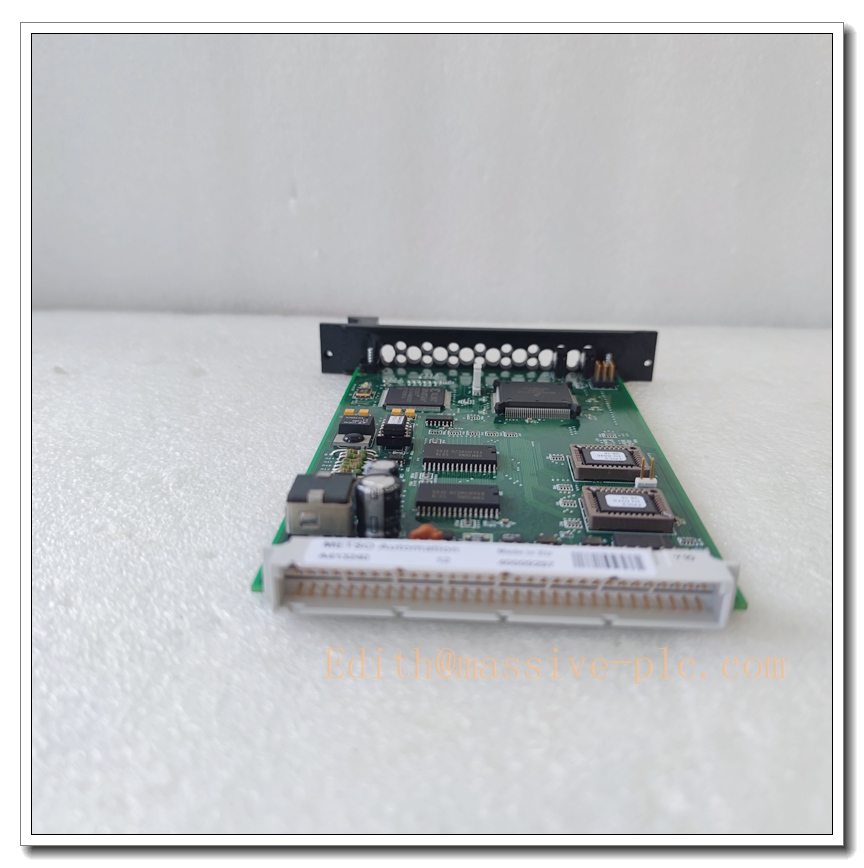

A413240 Industrial Automation Control Board

Product Description

The A413240 is a high-reliability industrial printed circuit control board designed for embedded control and signal processing within factory automation and machinery systems. This board interfaces with field sensors, actuators and host control hardware to execute real-time I/O sampling, signal conditioning and communication tasks. Built to withstand vibration, electromagnetic interference and moderate temperature fluctuations inside electrical cabinets, it supports continuous 24/7 operation for critical automated equipment. It is commonly integrated as a core replacement assembly for legacy machine controllers, providing stable digital and analog signal transfer between the main processor and field-side devices.

A413240

Technical Specifications

Item	Parameter
Model	A413240
Form Factor	Printed circuit assembly, board-level replacement part
I/O Type	Mixed digital input / output and analog signal processing
Operating Temperature	0°C ~ +60°C
Storage Temperature	-40°C ~ +85°C
Power Supply	24 VDC nominal
Isolation	Partial galvanic isolation for field signal channels
Mounting	Cabinet internal mounting, fixed by fasteners
Enviroment	Indoor cabinet use, non-condensing
Communication	On-board bus interface for host controller communication

Compatibility & Installation Traps

Compatibility

Designed as an OEM replacement board for matched machine controller assemblies.
Works with the original system firmware, terminal wiring harnesses and power distribution units of the target equipment.
Requires matching revision hardware; older or newer main CPU versions may fail to recognize this board.
Not interchangeable with similar-looking circuit boards without part number and revision verification.

Common Installation Traps

Failing to confirm hardware revision number before replacement; mismatched revisions cause boot failure or channel malfunction.
Touching PCB traces and connectors without ESD protection, resulting in latent semiconductor damage.
Reusing damaged or corroded wiring harness connectors; poor contact triggers intermittent signal faults.
Incorrect power polarity during wiring, directly destroying the on-board power regulation circuit.
Installing the board in cabinets with poor ventilation; sustained overheating leads to unstable operation and premature failure.
Mixing up signal terminals and high-voltage power terminals, which causes short-circuit and board burnout.
Hot-plugging the board while system power remains energized.
Retaining old configuration files without resetting after board swap, leading to I/O mapping conflicts.

Standard Operating Procedure (SOP)

Pre-check: Inspect the new A413240 board for physical damage, component displacement or connector deformation. Confirm part number and revision match the original unit.
Power lockout: Shut down the complete machine system, cut main power and lock out the power source. Verify zero voltage at the board terminals with a multimeter.
ESD preparation: Wear an ESD wrist strap and work on an anti-static mat during handling.
Disassembly: Mark all wiring labels before disconnecting harnesses. Remove fasteners and extract the faulty board carefully.
Board mounting: Position the replacement A413240 board, align mounting holes and secure fasteners evenly.
Wiring restoration: Reconnect each harness according to marked labels; double-check signal lines, power polarity and ground connections.
Power-on and recognition: Restore power gradually, boot the host controller and wait for hardware identification.
Configuration and testing: Load the correct system configuration, run channel point-to-point testing and simulate field signals to validate all functions.
Final handover: Record the board serial number and revision, clear historical fault logs and return the machine to normal production mode.
