5SHY4045L0006, part number 3BHB030310R0001, is ABB high-power press-pack IGCT (Integrated Gate Commutated Thyristor) semiconductor device

Description

5SHY4045L0006 3BHB030310R0006 Product Technical Manual

Product Core Introduction

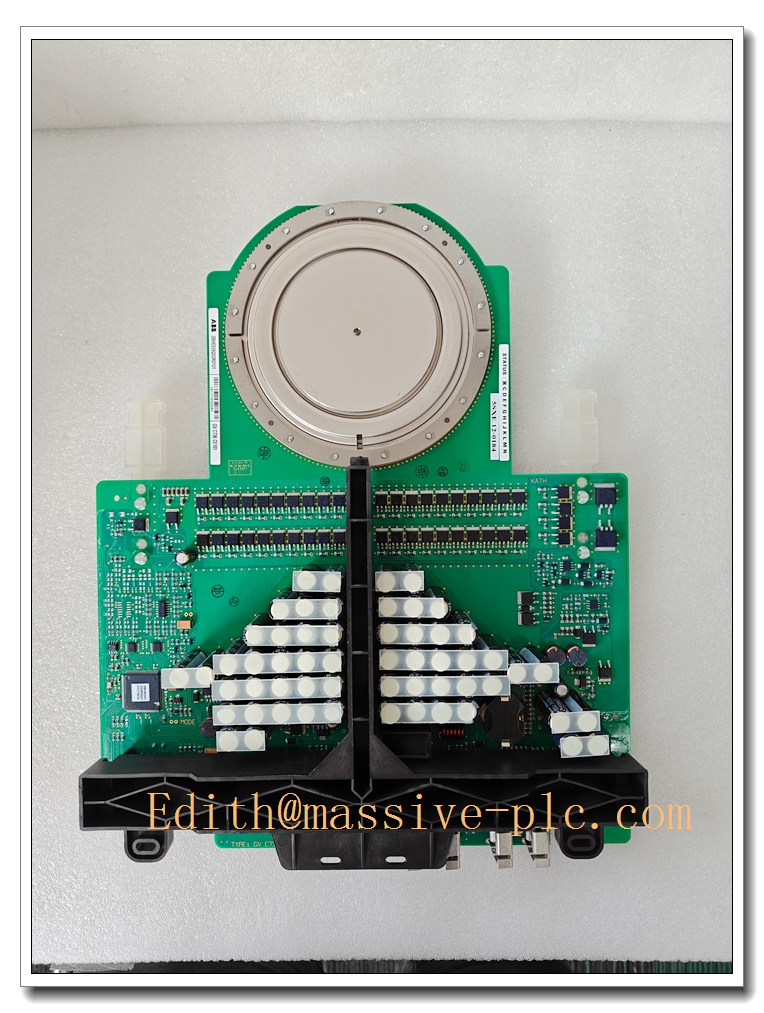

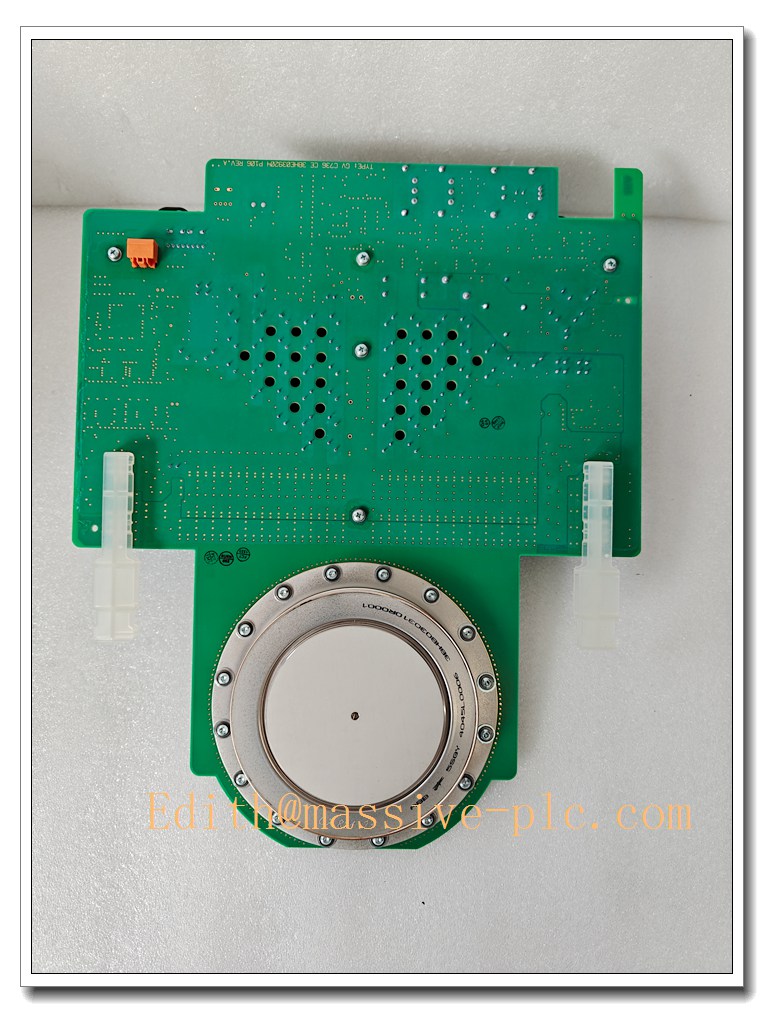

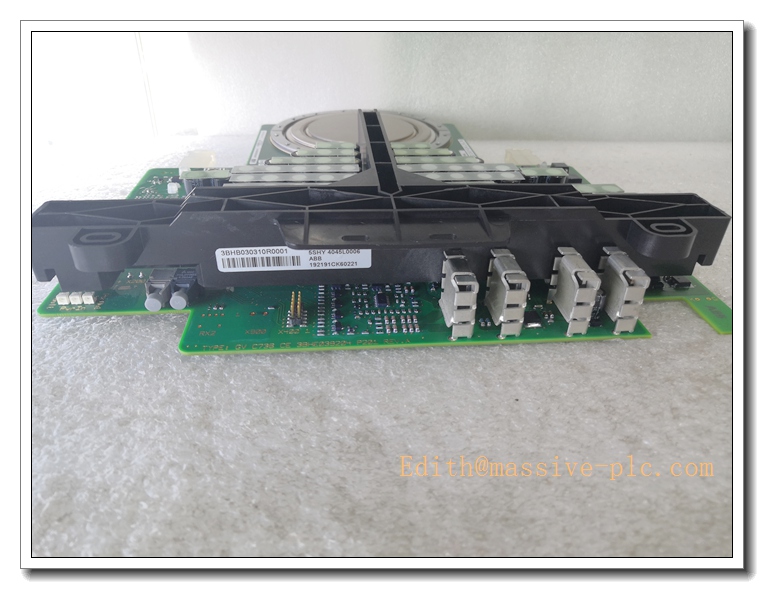

The 5SHY4045L0006, part number 3BHB030310R0001, is ABB high-power press-pack IGCT (Integrated Gate Commutated Thyristor) semiconductor device, widely used in medium voltage power conversion systems such as ACS6000 drives, static var compensators (SVC/STATCOM) and generator excitation power stacks. It integrates high-current silicon wafer, gate commutated structure and press-pack packaging, featuring ultra-low switching loss, high surge current capability and high reliability. Controlled by matched gate drive unit (GDU) via fiber optic signals, it performs high-voltage AC-DC/DC-AC switching. It is a key spare component for maintenance and overhaul of ABB legacy high-power power electronic stacks in mining, metallurgy, petrochemical and power industries.

5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101

Main Technical Specifications

• Model: 5SHY4045L0006, Order Code: 3BHB030310R0001
• Device Type: Press-pack IGCT
• Repetitive Peak Off-state Voltage: 4500 V
• RMS Continuous Current: 4000 A
• Maximum Surge Current: 55 kA
• Gate Control: Fiber-optic triggered, matched ABB GDU
• Package: Press-pack (hockey-puck) package, double-sided thermal contact
• Cooling Method: Deionized water cooling / air cooling (depends on stack design)
• Operating Junction Temperature: -40°C ~ +125°C
• Storage Temperature: -40°C ~ +130°C
• Relative Humidity: 5%–95% RH, non-condensing
• Insulation Level: Reinforced insulation per IEC 60747
• MTBF: ≥90,000 hours (under rated operation)
• Mounting: Stack clamping installation with defined clamping force
• Dimension: 142 mm diameter × 26 mm thickness
• Net Weight: 2.1 kg
• Status Feedback: Fault signal transmitted through fiber from paired GDU

Recommended Homologous Series Models

• 5SHY4045L0005: Earlier hardware revision, form-fit compatible replacement.
• 5SHY5045L0002: Higher current grade IGCT for larger power stacks.
• 5SHY3545L0004: Lower current variant for medium power MV converters.
• 3BHB009885R0004 (S-093H): Complete phase module pre-assembled with this type of IGCT for ACS6000.

5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101

Professional Quality Control & Test Standard Operating Procedures (SOP)

4.1 General Test Standard

All 5SHY4045L0006 IGCT devices are inspected complying with ISO9001, IEC60747 semiconductor standard and IEC61000 EMC requirements. Each unit carries unique serial number for full lifecycle traceability.

4.2 Core Test SOP

1. Visual & Mechanical Inspection: Inspect press-pack metal surfaces for scratches, dent, oxidation and surface contamination; check gate fiber connector integrity; verify flatness of contact surfaces.
2. Electrical Static Parameter Test: Measure forward/reverse blocking characteristic, leakage current, gate resistance and threshold parameters under specified test bench.
3. Dynamic Switching Test: Mount IGCT on test stack with standard clamping force; test turn-on, turn-off characteristic and switching loss at rated voltage/current.
4. Gate Interface Test: Cooperate with matched GDU; verify optical trigger reception and fault feedback signal transmission.
5. Thermal Cycling Test: -40°C ↔ +125°C thermal cycling for 40 cycles, 2 hours per cycle; monitor electrical parameter drift after cycles.
6. Vibration & Shock Test: 10–150Hz sinusoidal vibration and mechanical shock test to verify press-pack internal contact stability.
7. Surge Current Test: Apply short-duration surge current pulse to validate ruggedness against fault current.
8. Continuous Burn-In Aging: 160 hours burn-in under specified operating condition; continuously monitor leakage and switching performance to screen latent defects.
9. Final Inspection & Packaging: Record serial number and test report; use anti-static, shock-proof packaging with desiccant; attach inspection certificate.

New Module Installation Guidelines

5.1 Pre-installation Preparation

Cut off medium voltage main power and GDU auxiliary 24VDC supply; confirm model and part number match purchase order. Wear anti-static wristband, insulated gloves and safety goggles. Prepare torque wrench, stack fixture, thickness gauge, thermal interface material, fiber optic cable and leak detector.

Safety reminder: High voltage hazard. Only certified power electronics technicians are allowed to perform stack assembly.

5.2 Installation Steps

1. Disassemble the power stack safely and remove old IGCT. Clean upper and lower copper heat sink contact surfaces thoroughly, remove residual thermal material and burrs.
2. Place new IGCT between heat sinks; ensure correct polarity orientation, gate fiber port at correct side.
3. Assemble stack and apply clamping force step by step to manufacturer specified value; check device thickness after clamping.
4. Connect gate optical fiber to GDU; maintain fiber minimum bending radius, avoid scratch on fiber end face.
5. Reconnect cooling water circuit for water-cooled stack; perform pressure leak test.
6. Reassemble stack shielding and earthing components; double-check all mechanical alignment.

5.3 Post-installation Commissioning

Keep medium voltage disconnected, energize GDU 24VDC auxiliary power. Run GDU self-test, verify optical communication and gate drive status. Perform low voltage static test to check blocking characteristics. Execute dry-run switching test on test bench. Run continuous 60-minute stability test under simulated operating condition; confirm no leakage and no abnormal fault before applying high voltage and full-load operation.

Application Scenarios & Product Features

6.1 Core Application Scenarios

• ABB ACS6000 medium voltage drive power stack for conveyors, compressors and rolling mills
• STATCOM / SVC reactive power compensation high-power converter
• Large generator excitation high-power rectifier stacks
• HVDC light and industrial high-power energy conversion equipment
• Legacy ABB IGCT power stack spare replacement and overhaul

6.2 Core Product Features

• Press-pack hockey-puck IGCT, high blocking voltage and high continuous current rating
• Double-sided heat transfer design, compatible with water cooling or high-capacity air cooling stack
• Fiber optic gate control, excellent isolation between high-voltage power circuit and low-voltage control
• High fault current withstand capability, robust for short-circuit events
• Low switching loss, suitable for medium-frequency high-power conversion
• Press-pack structure allows series/parallel assembly for high voltage and high power stacks
• High EMC immunity, stable performance under heavy industrial strong electromagnetic interference

5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101

Frequently Asked Questions (FAQ)

Q1: GDU reports IGCT fault after stack assembly A1: Check clamping force and device polarity; inspect fiber end face contamination or fiber breakage; re-run GDU self-test. If IGCT blocking characteristic fails, replace device.

Q2: Excessive temperature rise during operation A2: Verify clamping force; check flatness of heat sink contact surface; inspect cooling water flow and scaling; check thermal interface condition.

Q3: High leakage current detected in static test A3: Check device surface contamination and humidity; verify polarity; re-inspect clamping condition. If parameter out of spec, replace IGCT.

Q4: Device fails turn-off test A4: Confirm matched GDU model and optical connection; check gate loop; verify DC voltage within device rated range.

Q5: Surface arcing occurs on device edge under high voltage A5: Clean surface and check insulation distance; verify surface free of dust and moisture; check stack shielding.

Q6: Can this IGCT work with other brand gate drive units? A6: Not recommended. This IGCT is optimized for ABB matched GDU. Mismatched gate drive will cause switching failure and device damage.
