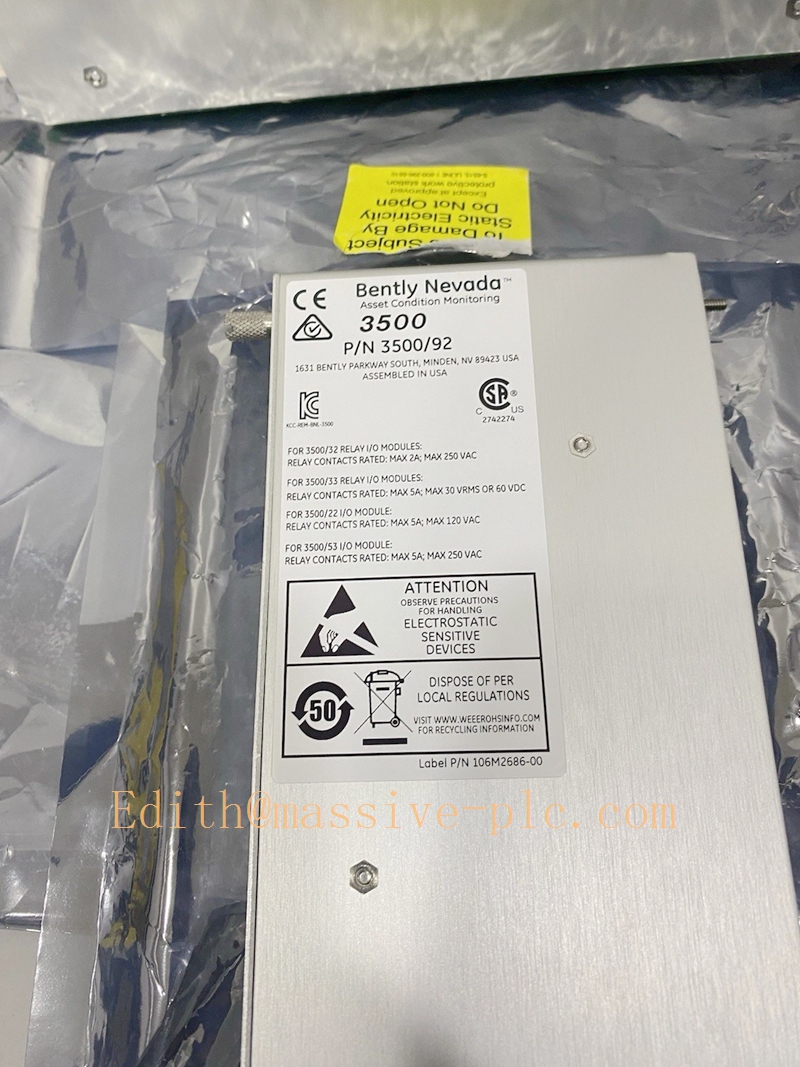

3500/92-04-01-00 (136180-01+136188-02) high-performance industrial communication gateway module

Description

Model Introduction

The Bently Nevada 3500/92-04-01-00, assembled with main communication gateway board 136180-01 and dedicated I/O sub-module 136188-02, is a high-performance industrial communication gateway module purpose-built for the 3500 Series Machinery Protection System. It acts as the core data bridge between the 3500 local monitoring rack and external plant-wide control platforms, enabling seamless, reliable real-time transmission of critical machinery health data to DCS, PLC, HMI and remote monitoring systems. This module supports both standard Modbus protocol and Bently Nevada proprietary communication protocols, and is fully backward compatible with existing 3500 system architecture for easy on-site deployment and upgrade.

Technical Introduction

• ‌Core Function‌: Collects full machinery health data from the 3500 rack via the TDI (Transient Data Interface), and distributes processed data to external industrial automation systems.
• ‌Supported Protocols‌: Native support for Modbus RTU/ASCII, Modbus TCP, and Bently Nevada proprietary communication protocols.
• ‌Communication Interfaces‌: RS232, RS422, RS485 serial ports, plus 10/100 Mbps Ethernet port for dual redundant network connection.
• ‌Typical Power Consumption‌: 5.0 W with Modbus RS232/RS422 configuration, 5.6 W with Modbus RS485 configuration.
• ‌Data Transmission Performance‌: Maximum 10,000 data points refresh rate per second, end-to-end transmission latency ≤ 100 ms.
• ‌Operating Temperature Range‌: -20 °C to +65 °C, suitable for all common industrial control cabinet environments.
• ‌Physical Form Factor‌: Rack-mounted full-height 3500 series standard module, directly integrates into any vacant slot of the 3500 system rack.
• ‌Certifications‌: Meets CE industrial EMC standards, fully compliant with API 670 machinery protection system communication reliability requirements.
• ‌Hot-swap Support‌: Full hot-swap functionality, allowing module replacement without interrupting the normal operation of the 3500 protection rack.

Adaptive Quality Assurance & Test Protocol

1. ‌Part Identity Validation‌: Cross-verify serial numbers of 136180-01 and 136188-02 against Bently Nevada official part registry, confirm both components are original authentic units with no non-original refurbished parts.
2. ‌Adaptive Protocol Compatibility Test‌: Automatically switch between Modbus RTU, Modbus TCP and Bently Nevada proprietary protocol test modes, dynamically adjust communication baud rate, data bit and parity settings to verify full protocol compatibility.
3. ‌Full-load Data Transmission Test‌: Simulate maximum 10,000 data points concurrent transmission from the 3500 test rack, run 24-hour continuous data transmission, confirm zero data packet loss and no communication disconnection occurs.
4. ‌Interface Performance Verification‌: Test all RS232, RS422, RS485 and Ethernet interfaces one by one, validate each port can maintain stable connection under maximum data throughput.
5. ‌72-hour Adaptive Burn-in Test‌: Operate the module under dynamically cycling 0 °C to +60 °C ambient temperature, automatically log communication status, data integrity and power consumption every 15 minutes, dynamically flag and isolate any abnormal signal drift or connection dropout.
6. ‌Electromagnetic Interference Immunity Test‌: Apply industrial-level EMC interference signals to the module, confirm communication stability is not affected and no data corruption happens under strong electromagnetic field environment.
7. ‌Final Adaptive Report Generation‌: Automatically generate a customized full test report based on the actual test data of this specific unit, attach a unique traceable calibration label and release the unit with 12-month formal quality warranty.

Field Engineer Technical Instructions

• ‌Installation Steps‌:
  1. Mount the module into any vacant slot of the 3500 series rack, push it fully inward until the backplane connector is completely seated, then tighten the two front panel mounting screws to secure the unit.
  2. Wire the serial communication cables or Ethernet network cable to the corresponding port on 136188-02, strictly follow the site wiring standard, separate communication cables from high-voltage power cables by at least 15 cm to avoid electromagnetic interference.
  3. Launch the 3500 Rack Configuration Software, set communication protocol, baud rate, station address, data point mapping table and external system connection parameters according to site DCS/PLC specifications.
  4. Complete full communication loop test: verify all vibration, temperature, displacement and alarm data from the 3500 rack can be synchronously and accurately displayed on the external HMI or DCS screen.
• ‌Routine Maintenance Guidelines‌:
  1. Daily check: Observe the module front panel communication status LEDs, confirm data transmission activity and connection health are in normal state.
  2. Weekly inspection: Check all communication cables and connectors for loose connections, corrosion or mechanical damage.
  3. Monthly validation: Compare the data values displayed on external DCS with the local 3500 rack screen, confirm data consistency error is 0 and no data point is missing.
  4. Quarterly test: Verify redundant communication port switching function, confirm the standby port can automatically take over data transmission within 1 second when the main port fails.
  5. Annual inspection: Update the module firmware to the latest official stable version, back up the full communication configuration file to the site engineering archive.
• ‌On-site Troubleshooting Tips‌: If external system cannot receive data, first check the communication cable continuity and port parameter matching, then verify the TDI module in the 3500 rack is running normally, avoid unnecessary module replacement.

Related Series Model Recommendations

1. ‌3500/92-01-00 (136180-01 + 136188-01)‌: Basic communication gateway variant with only RS232/RS422 serial ports, suitable for small-scale 3500 system sites that only need simple Modbus serial communication connection.
2. ‌3500/92-02-00 (136180-02 + 136188-01)‌: Enhanced communication gateway module with dual redundant RS485 serial ports, designed for sites that require higher serial communication reliability and long-distance data transmission.
3. ‌3500/92-03-00 (136180-01 + 136188-03)‌: Ethernet-only communication gateway module with 2 independent 10/100 Mbps Ethernet ports, ideal for modern industrial sites that use full Ethernet plant network architecture.
4. ‌3500/92-05-00 (136180-02 + 136188-03)‌: Top-tier redundant communication gateway module with both dual serial ports and dual Ethernet ports, for critical large-scale turbine supervision systems that require maximum communication redundancy and zero single point of failure.
