Name: 3500/33 149992-03 16 channel low current relay output module - MASSIVE
Brand: Bently Nevada

Description

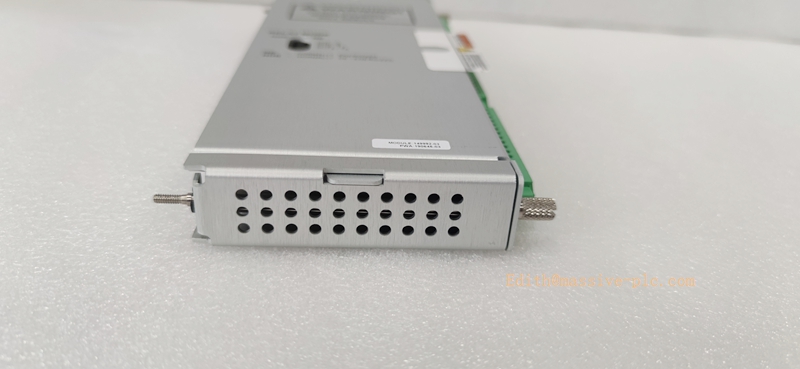

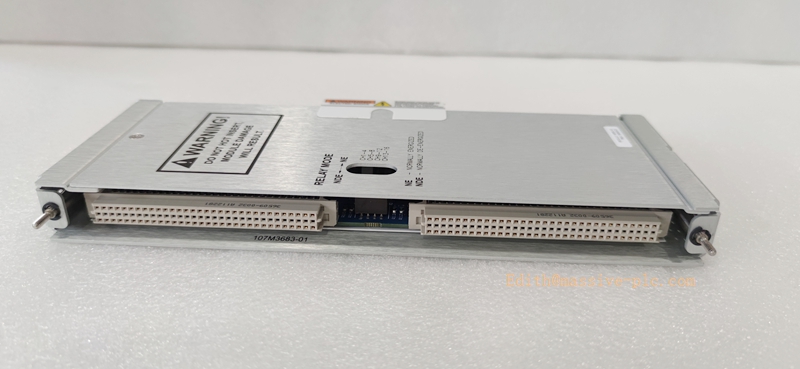

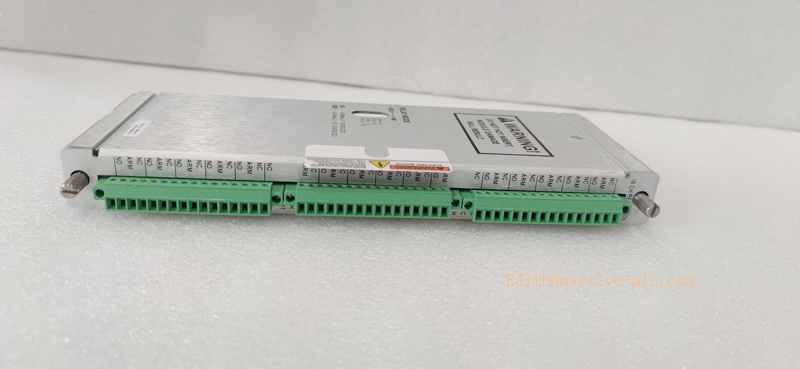

3500/33 149992-03 16 channel low current relay output module

Product Introduction

The 3500/33 (149992-03) is a 16-channel low-current relay output module designed exclusively for the Bently Nevada 3500 machinery protection and condition monitoring system. Serving as a critical signal output terminal of the monitoring rack, it converts system diagnostic data and fault judgment signals into dry contact relay outputs for local alarm indication, remote signal transmission, and equipment trip interlock control.

Featuring epoxy-sealed relay construction and built-in arc suppressors, the module delivers superior anti-interference performance and operational stability for continuous-duty industrial environments. It supports independent channel status monitoring via front-panel LED indicators and enables seamless data communication and logic coordination with other 3500 series modules. Optimized for high-reliability machinery protection scenarios, it eliminates false tripping and missed alarms caused by signal distortion or contact failure, ensuring safe and stable operation of core rotating equipment.

Key Technical Specifications

Basic Parameters

Model: 3500/33, Part No. 149992-03
Module Type: 16-Channel Low-Current SPDT Relay Output Module
Core Function: Output alarm, trip and status signaling contacts for machinery monitoring systems
Mounting Method: Standard slot installation for Bently Nevada 3500 series rack
Dimension: 241 mm × 24.4 mm × 99.1 mm

Electrical Performance

Power Supply: 24 V DC (±10% tolerance), compatible with native 3500 rack power distribution
Power Consumption: 5.8 W (typical), max 8 W
Relay Type: Single-Pole Double-Throw (SPDT), fully isolated per channel
Protection Design: Factory-installed 250 Vrms arc suppressor, epoxy sealed relays
Response Speed: Actuation time ≤ 10 ms, release time ≤ 5 ms for fast fault response

Environmental Specifications

Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
Humidity Range: 0%–95% RH, non-condensing
Environmental Resistance: Resists industrial dust, vibration and electromagnetic interference

Status Indication

TX/RX LED: Flashes during data communication with rack modules
CH Alarm LED: Illuminates when the corresponding relay channel triggers an alarm/trip state

Typical Applications

The 3500/33 (149992-03) module is widely deployed in continuous condition monitoring and safety interlock systems for rotating and reciprocating machinery across process and power industries, focusing on reliable on/off signal output and fault alarming.

Power Generation Industry: Vibration alarm, temperature fault indication and emergency trip interlock for steam turbines, gas turbines and hydro turbines
Petrochemical & Process Industry: Condition monitoring signal output for large compressors, industrial pumps, blowers and fans
Heavy Manufacturing: Safety interlock and abnormal status alert for high-speed rotating mechanical equipment
General Industrial Monitoring: Distributed alarm signal expansion for 3500 system racks, remote equipment status feedback and centralized monitoring linkage

Common Technical Pitfalls & Avoidance Guidelines

4.1 Overload Operation Beyond Low-Current Rating

This module is designed specifically for low-current signal output, not high-power load driving. Connecting high-current actuators, contactors or direct heavy loads will cause relay contact ablation, arc breakdown and permanent channel failure. Always add intermediate relays for load amplification and isolation for high-power loop applications.

4.2 Ignoring Condensing Humidity & Thermal Derating

Although the module supports 95% non-condensing humidity, long-term condensing environments will damage epoxy sealing and cause internal short circuits. In high-humidity, low-temperature or outdoor industrial sites, install sealed cabinet ventilation and dehumidification devices. Avoid continuous full-load operation at ambient temperatures above 70 °C to prevent performance degradation.

4.3 Improper Grounding & EMI Interference

Inconsistent system grounding or nearby high-frequency equipment interference may lead to false relay triggering or communication failure. Strictly follow 3500 system grounding specifications to achieve single-point grounding, and separate signal cables from high-voltage power cables to eliminate crosstalk interference.

4.4 Misuse of Channel Logic & Bypass Function

Improper configuration of alarm inhibit, channel bypass and trip delay logic during commissioning may result in failed fault response or unnecessary equipment tripping. Verify all channel logic parameters against machinery protection standards before formal operation, and avoid random modification of default protection settings.

4.5 Mixing Non-Matching Rack & Firmware Versions

Mismatched 3500 rack backplane firmware or incompatible adjacent modules will cause communication handshake failure and channel offline anomalies. Always match the official compatible firmware version and complete system unified debugging after module replacement.
