Description
Model Introduction
The Bently Nevada 3500/15-02-02-00, assembled with main power logic board 106M1079-01 and power input I/O sub-module 106M1081-01, is a high-reliability redundant AC/DC universal power supply unit purpose-built for the 3500 Series Machinery Protection System. It converts wide-range industrial input power into stable, regulated low-voltage DC power for all modules installed in the 3500 rack, and supports hot-swap operation and redundant parallel configuration to eliminate power supply single point of failure. This unit is designed to meet the strict power stability requirements of critical rotating machinery protection systems, ensuring continuous, uninterrupted power delivery even under harsh industrial power grid fluctuation conditions.

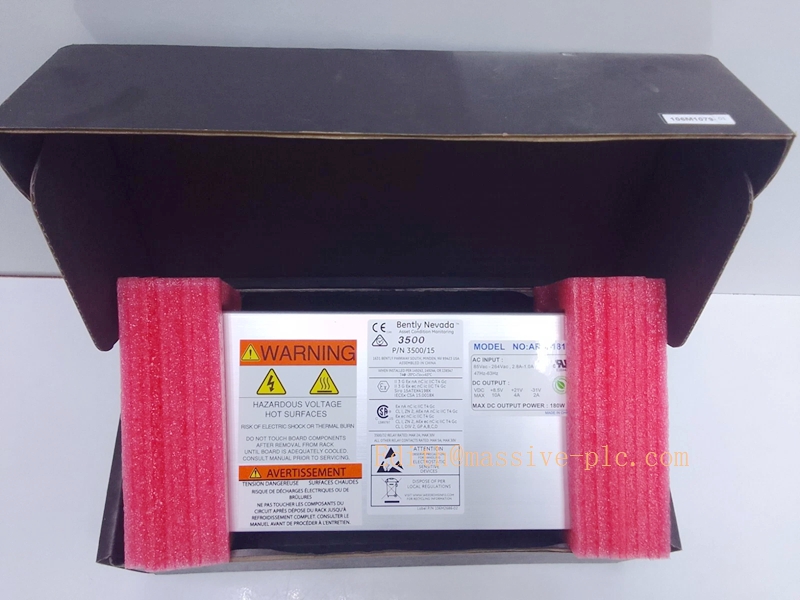

106M1079‑01
Technical Parameters
- Input Voltage Range: 85 V AC to 264 V AC, 120 V DC to 300 V DC, universal wide-range input compatible with global industrial power grids
- Output Rated Power: 125 W maximum continuous power
- Output Voltage: +5.1 V DC for system backplane, +24 V DC for transducer power supply
- Output Ripple & Noise: ≤ 50 mV peak-to-peak, far below industrial EMC interference limits
- Operating Temperature Range: -20 °C to +65 °C
- Efficiency: ≥ 85% at full rated load
- Hot-swap Support: Full hot-swap functionality, no rack power interruption during module replacement
- Parallel Redundancy: Supports 1+1 redundant parallel operation, automatic load sharing without current imbalance
- Physical Dimensions: Full-height 3500 series standard form factor, 241.3 mm × 127 mm × 241.8 mm
- Net Weight: 1.3 kg nominal
- Certifications: Meets CE, UL, ATEX safety standards, fully compliant with API 670 power supply reliability requirements
Related Series Model Recommendations
- 3500/15-01-01-00 (106M1079-02 + 106M1081-02): Basic 85-132 V AC single-input power supply variant, suitable for small non-critical 3500 racks with stable 120 V industrial power supply.
- 3500/15-03-03-00 (106M1079-03 + 106M1081-03): 24 V DC dedicated input power supply module, designed for sites that use full DC UPS power architecture in offshore platforms and remote unmanned stations.
- 3500/15-04-02-00 (106M1079-04 + 106M1081-01): 250 W high-power upgraded power supply, ideal for large 3500 racks with 16+ monitoring modules that require higher total power budget.
- 3500/15-05-04-00 (106M1079-05 + 106M1081-04): Explosion-proof intrinsically safe power supply module, certified for direct installation in Zone 2 hazardous areas in refineries and chemical plants.
Quality Control Test Standard
- Part Identity Verification: Cross-validate serial numbers of 106M1079-01 and 106M1081-01 against Bently Nevada official part registry, confirm no counterfeit or non-original refurbished components are used.
- Input Full-range Test: Apply 85 V AC, 120 V AC, 264 V AC, 120 V DC and 300 V DC input voltages respectively, confirm output voltage stays within ±1% of rated value under all conditions.
- Load Characteristic Test: Run 0% to 110% full load step test, verify output voltage stability and ripple noise level meet published specifications at every load point.
- Redundancy Parallel Test: Connect two identical modules in parallel, confirm automatic load sharing function works correctly, no overcurrent or output conflict occurs during hot-swap of one unit.
- 72-hour Full Load Burn-in Test: Operate the module under 55 °C ambient temperature with 100% rated load, continuously log output voltage, current and temperature data, no overheating or abnormal shutdown is allowed during the whole period.
- Dielectric Withstand Test: Apply 2000 V AC isolation voltage between input, output and chassis ground for 60 seconds, confirm no breakdown or leakage current exceeds 1 mA.
- Final Performance Audit: Generate full test report, attach traceable calibration label and release the unit with 12-month formal quality warranty.
Installation Guide
- Pre-installation Preparation: Confirm the module is installed in the dedicated power slot at the far left of the 3500 rack, wear anti-static wrist strap before handling, verify input power type and voltage match the module specification.
- Module Insertion: Align the full-height module with the rack guide rails, push it smoothly inward until the backplane connector is fully seated, tighten the two front panel mounting screws to secure the unit.
- Input Power Wiring: Connect the AC/DC input power cable to the corresponding terminal on 106M1081-01, use 14 AWG or thicker power cable, add external fuse protection at the input side as required by site electrical safety standards.
- Redundancy Configuration (if applicable): For 1+1 redundant setup, connect two independent input power sources from separate UPS systems to the two power modules, enable automatic load sharing function via 3500 configuration software.
- Power-on Validation: Apply input power gradually, confirm the front panel power status LED turns solid green, measure output voltage to confirm it meets rated specification, then power on all other 3500 rack modules and verify full system startup completes normally.
Application Scenarios & Key Features
- Primary Application Scenarios: Critical 3500 machinery protection racks for steam turbines in thermal power plants, centrifugal compressors in petrochemical refineries, large rotating equipment in mining facilities, and gas turbine supervision systems in LNG terminals.
- Core Features:
- Ultra-wide universal input range automatically adapts to almost all industrial AC and DC power grids worldwide, no manual voltage selection required.
- Built-in overvoltage, overcurrent and overheating multi-layer protection, automatically cuts off output to protect downstream 3500 modules when abnormal conditions occur.
- 1+1 redundant parallel configuration completely eliminates power supply single point of failure, achieving 99.999% system power availability.
- High efficiency design significantly reduces heat generation, extending the service life of the module and lowering site cabinet cooling load.
Frequently Asked Questions
- Q1: Can I use this module to replace an old 3500/15 power supply unit directly?
- A: Yes, it is fully backward compatible with all legacy 3500/15 series power supplies, no modification to existing rack wiring is required for direct replacement.
- Q2: What is the maximum total number of 3500 modules this power supply can support?
- A: The 125 W rated power can support up to 12 standard 3500 monitoring modules in a full rack under normal operating conditions.
- Q3: Does this module support hot-swap when the rack is running?
- A: Yes, it supports full hot-swap operation, when configured with redundant dual power supplies, replacing one unit will not cause any interruption to the 3500 system.
- Q4: What is the expected service life of this power supply module?
- A: Under normal operating conditions with proper ambient temperature and stable input power, the designed service life is no less than 10 years.
