TRICONEX AI3351 Analog Input Module

Description

TRICONEX AI3351 Analog Input Module Product Introduction

Product Overview

The TRICONEX AI3351 is a high-precision, high-reliability 32-Channel Analog Input Module designed for Trident and Tricon Safety Instrumented Systems (SIS). As a core safety-grade analog acquisition unit, it is specially developed for industrial standard 4–20mA process signal collection, accurately acquiring continuous analog variables such as pressure, flow, liquid level and temperature from field transmitters. The module converts analog current signals into high-resolution digital data and transmits valid process values to the main processor for real-time monitoring, closed-loop control and safety interlock judgment.

Adopting industrial fault-tolerant architecture and high-density integrated circuit design, the AI3351 features excellent signal stability, low signal drift and strong noise suppression capability. It supports wide-range current signal adaptation, built-in signal filtering and comprehensive channel self-diagnosis functions. Certified with IEC 61508 SIL 3 functional safety and TÜV safety approval, the module supports online hot-swap and long-term stable operation in G3-level harsh industrial environments. It is widely deployed in petrochemical, natural gas, thermal power and coal chemical industries, providing high-integrity analog data support for critical safety and process control loops.

Same-Series Model Classification & Peer Models

The TRICONEX AI3351 belongs to the Trident 33xx Analog Input Series, positioned as a high-density universal 4–20mA analog input module, serving as the mainstream standard AI configuration for Trident SIS systems, with clear differentiated advantages from traditional Tricon analog modules:

2.1 Product Positioning: High-density safety-grade analog input module, dedicated to universal 4–20mA process signal acquisition. It focuses on high channel density, excellent cost performance and stable signal sampling, suitable for large-scale process variable monitoring and safety loop signal collection in medium and large SIS projects.

2.2 Same-Series Typical Peer Models

3700A: Classic Tricon universal analog input module, supporting both voltage and current signals, with fewer channels and lower integration density compared with AI3351.

3706A: Professional thermocouple temperature input module, dedicated to temperature signal acquisition, not applicable to standard 4–20mA process transmitter signals.

AO3351: Matching analog output module, responsible for 4–20mA control signal output, forming a complete process control loop with AI3351.

3611E: Digital input module for switch state acquisition, not applicable to continuous analog variable monitoring.

3008 Main Processor: Core processing unit; the uploads high-precision analog process data to the main controller for safety logic calculation and process regulation.

2.3 System Compatibility: Fully compatible with Trident series SIS racks and classic Tricon system architectures. It supports full-version TriStation configuration software for parameter setting, signal calibration, online debugging and real-time data monitoring. The module realizes plug-and-play replacement and system upgrade, perfectly adapting to new project deployment and old system renovation scenarios.

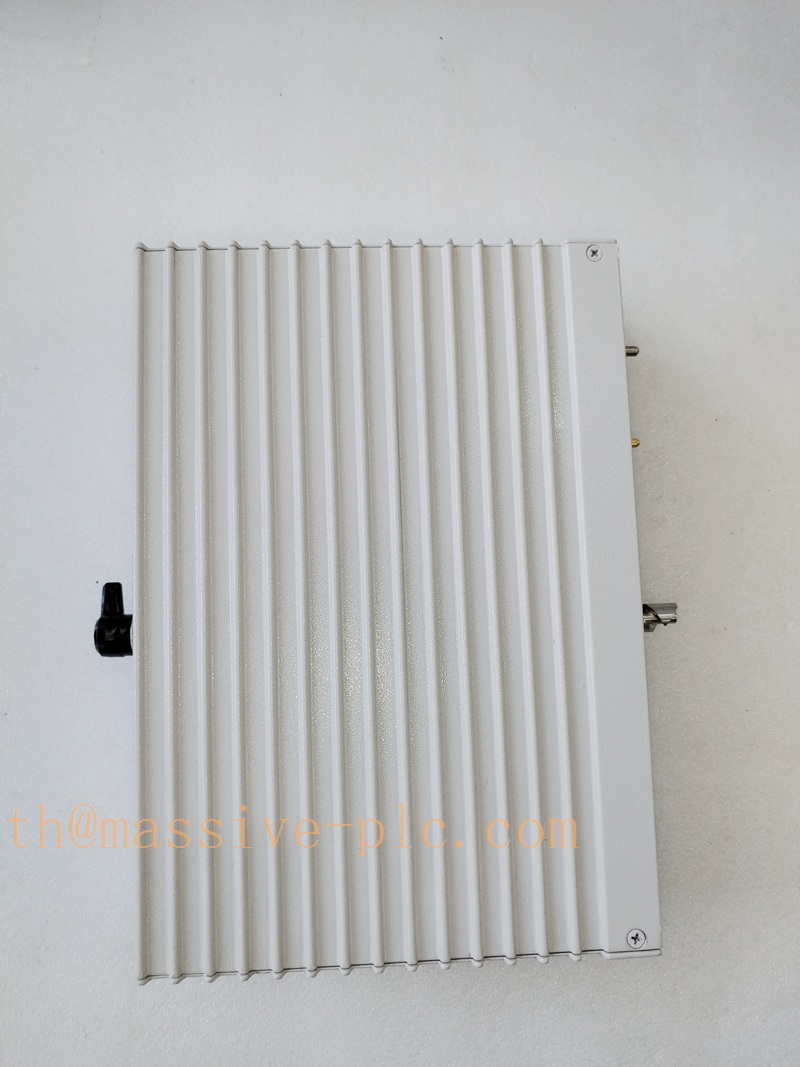

TRICONEX 3351S2

Core Technical Specifications & Product Specifications

Core Main Functions

4.1 High-Density 4–20mA Signal Acquisition

The provides 32 high-density analog input channels, specially designed for universal 4–20mA current signal acquisition of industrial transmitters. It accurately collects process variables including pressure, flow, liquid level and density in industrial sites, converts continuous analog current signals into standard digital data, and uploads valid values to the SIS main controller. It meets the large-scale and multi-point analog monitoring demands of modern industrial process control systems and greatly improves system signal integration density.

4.2 High-Precision Signal Conversion & Calibration

With 12-bit high-resolution sampling and ±0.15% full-scale ultra-high accuracy, the ensures long-term precise and stable collection of process analog signals. It supports software zero-point and full-scale calibration, effectively eliminating signal deviation caused by equipment aging and environmental changes. The module maintains consistent measurement accuracy in complex working conditions, providing reliable data basis for process regulation and safety threshold judgment.

4.3 Intelligent Signal Filtering & Noise Suppression

Built-in professional signal filtering and jitter suppression algorithm, the effectively filters high-frequency noise, transient surge interference and signal burrs generated by industrial electromagnetic interference and field equipment operation. The 16Hz stable sampling bandwidth ensures smooth and real-time process data, avoiding frequent data fluctuation and false safety alarms caused by field interference.

4.4 Full-Coverage Channel Fault Diagnosis

The module integrates comprehensive intelligent diagnosis functions for all channels, which can accurately identify common field faults such as transmitter open circuit, line disconnection, signal over-range and abnormal current deviation. It automatically generates fault codes and alarm logs, supports local indicator prompt and upper computer remote alarm. It helps operation and maintenance personnel quickly locate faulty loops and replace damaged transmitters, improving system troubleshooting efficiency.

4.5 Zero-Downtime Online Maintenance

Adopting industry-standard hot-swap design, the supports online plugging, replacement and maintenance during normal system and production operation. Module replacement will not affect the normal operation of other channels and system safety logic, realizing non-stop maintenance of analog monitoring loops, ensuring 24/7 continuous and stable operation of industrial process control and safety systems.

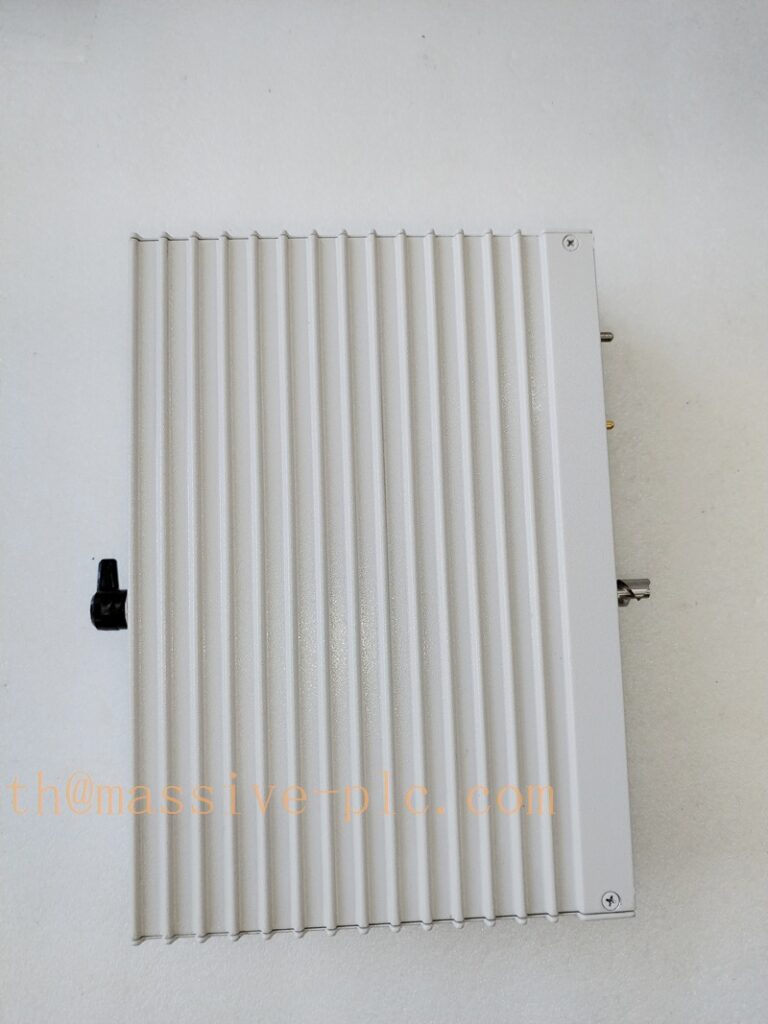

TRICONEX 3351S2

Core Product Features

5.1 SIL3 High Safety Integrity

The has passed authoritative IEC 61508 SIL 3 functional safety and TÜV certification, fully complying with SIS system safety design specifications. It adopts fault-tolerant signal sampling and data verification mechanism, effectively avoiding signal misjudgment and data loss caused by single-point faults. All collected process data meets high safety integrity requirements, ensuring reliable execution of safety interlock and emergency protection logic.

5.2 Super High Channel Density & Cost Efficiency

Integrating 32 analog input channels in a single module, the greatly saves SIS rack slot resources and cabinet space. Compared with traditional low-density analog modules, it significantly reduces system integration cost, wiring workload and spare part inventory pressure. It is the most cost-effective high-density analog acquisition solution for large-scale multi-point process monitoring projects.

5.3 Wide Signal Adaptation & Strong Compatibility

Supporting 2–22mA ultra-wide current signal adaptation range, the is fully compatible with all mainstream industrial 4–20mA transmitters on the market. It can adapt to signal deviation caused by transmitter aging and field line loss, ensuring effective acquisition of process signals in long-term operation. It is widely applicable to various process variable monitoring scenarios in petrochemical and power industries.

5.4 Excellent Anti-Interference & Environmental Adaptability

Adopting enhanced EMC electromagnetic compatibility design and industrial-grade anti-aging components, the resists on-site strong electromagnetic interference, mechanical vibration, dust and humidity erosion. It operates stably in -40℃~+70℃ ultra-wide temperature range and G3-level harsh industrial environments, maintaining stable signal sampling accuracy and long service life in complex field working conditions.

5.5 Stable Sampling & Low Signal Drift

Optimized circuit layout and temperature drift compensation algorithm ensure that the maintains extremely low signal drift during long-term continuous operation. The sampling data is stable and reliable without frequent jitter, effectively improving the stability of process closed-loop control and the accuracy of safety threshold judgment, reducing equipment mis-operation and safety risks.

5.6 Flexible Configuration & Easy Maintenance

The module supports full-function configuration through TriStation software, including signal range calibration, filtering parameter adjustment and fault threshold setting. It features visualized channel status monitoring and complete fault log recording, which simplifies daily operation and maintenance work. The plug-and-play design realizes rapid deployment and replacement, greatly improving project construction and system maintenance efficiency.

TRICONEX 3351S2

Industrial Application Scenarios

The TRICONEX high-density safety analog input module is widely used in SIL3-level high-risk industrial Safety Instrumented Systems (SIS) and process control systems, focusing on large-scale 4–20mA process variable signal acquisition and real-time monitoring, covering petrochemical, natural gas gathering and transportation, thermal power generation, coal chemical, pharmaceutical and metallurgical industries.

Specific application scenarios include: real-time monitoring and safety interlock signal collection of pressure, flow and liquid level of chemical reaction kettles, pipelines and storage tanks; analog signal acquisition of thermal power plant boiler auxiliary systems, turbine process parameters and environmental protection monitoring data; full-range process variable monitoring of natural gas compressor stations and long-distance pipeline stations; signal collection and safety threshold monitoring of FGS fire and gas concentration analog detectors; multi-point analog signal expansion and system upgrade of old industrial SIS and DCS hybrid control systems. It provides high-precision, high-stability and high-safety data support for industrial process control and safety protection.
