Description
Product Overview & Applications
The TRICONEX 4701X is a high-integrity I/O Module designed for the Tricon Safety Instrumented System (SIS). Engineered for mission-critical applications, it serves as a versatile interface for processing digital input and output signals, converting field sensor data into digital signals for the main processor and outputting control signals to actuators. Operating within a Triple Modular Redundant (TMR) architecture, this module ensures maximum safety and availability for Emergency Shutdown (ESD) and critical process control.
Typical Applications:
- Emergency Shutdown (ESD): Monitoring critical field contacts and driving final control elements to safely shut down process units.
- Fire & Gas (F&G): Interfacing with detection panels and activation devices for suppression systems.
- Burner Management Systems (BMS): Controlling fuel valves and monitoring flame status.
- Critical Process Interlocks: Executing safety logic to prevent equipment damage or unsafe operating conditions in oil and gas, power generation, and manufacturing.

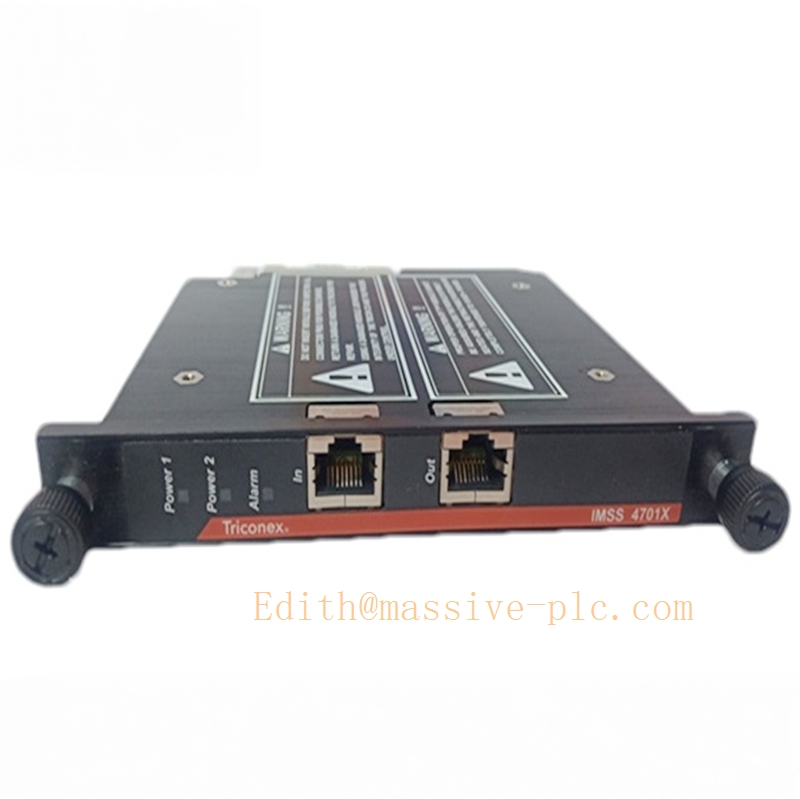

TRICONEX 4701X
Technical Specifications & Parameters
| Parameter | Specification |
|---|---|
| Module Type | I/O Module (Digital Input/Output) |
| Signal Type | Discrete Digital Input and Output |
| Safety Integrity | IEC 61508 SIL3 Compliant |
| Redundancy | Triple Modular Redundant (TMR) Architecture |
| Mounting | Standard Tricon Rack Slot, Hot-Swappable |
| System Platform | Tricon Safety Control System |
| Configuration | Programmable via TriStation 1131 |
Key Features
- TMR Fault Tolerance: Operates within the Tricon TMR architecture, where three independent channels process signals in parallel and vote on results. This ensures continuous safe operation and prevents spurious trips even if a single channel fails.
- Real-Time Signal Processing: Features multiple digital input and output channels that respond in real-time to changes in sensor signals and quickly output control signals to executing devices.
- Advanced Diagnostics: Continuously monitors the health of each channel, detecting open circuits, short circuits, and out-of-range conditions. Diagnostic data is seamlessly integrated into TriStation 1131 for rapid troubleshooting.
- Hot-Swappable Design: Supports online maintenance, allowing the module to be replaced without powering down the rack or shutting down the process, significantly reducing downtime.
- Seamless Integration: Communicates with the main processor via the dedicated TriBus, ensuring real-time synchronization and deterministic response times for safety-critical actions.
Installation Guidelines
- Rack Installation: Insert the module into a compatible Tricon rack slot, ensuring it is securely seated and locked in place for reliable backplane communication.
- Field Wiring: Always use shielded cables for field connections and ensure proper grounding to minimize electromagnetic interference (EMI). Verify the signal type and wiring configuration matches the system design.
- Software Configuration: Utilize TriStation 1131 software to configure input/output parameters, voting logic, and diagnostic settings. Ensure the module’s firmware version is compatible with the main processor.
- Environmental Protection: Ensure the control cabinet maintains appropriate temperature and humidity levels. In dusty environments, use compressed air to clean module surfaces quarterly.
Maintenance & Troubleshooting
- Diagnostic Monitoring: Regularly check the module’s PASS, FAULT, and ACTIVE LEDs. A FAULT indicator typically points to a specific channel issue rather than a complete module failure.
- Channel Fault Diagnosis: If a channel fault alarm is triggered, use the TriStation 1131 diagnostic tools to identify the specific point. Check for field wiring issues, sensor failures, or configuration errors.
- Terminal Inspection: Periodically inspect terminal connections for looseness or corrosion, especially in high-vibration environments.
- Spare Parts Management: Maintain an adequate stock of 4701X modules to minimize downtime during unexpected hardware failures.
Related Series Models
The 4701X is part of the Tricon I/O family. Common related models include:
- IMSS 4701X: Full designation often used in documentation and procurement.
- 3721: 32-Point Differential Analog Input Module, often used for higher channel density applications.
- 3603T: Digital Output Module, 24 VDC, Opto-Isolated, Commoned, TMR.
- 3503E: Digital Input Module, often paired with the 4701X in mixed I/O configurations.
