TRICONEX 3503E Triple Modular Redundant (TMR) Digital Input Module

Description

TRICONEX 3503E TMR Digital Input Module Product Introduction

Product Overview

The TRICONEX 3503E is a high-reliability TMR (Triple Modular Redundancy) Digital Input Module designed for the TRICONEX Tricon Safety Instrumented System (SIS). As a core safety-level discrete signal acquisition component in the classic Tricon I/O series, it is dedicated to collecting field dry contact and 24VDC digital switch signals for high-risk industrial safety interlock loops. Adopting a full three-channel independent redundant hardware architecture and standard 2oo3 fault-tolerant voting logic, the module eliminates all single-point faults, ensuring zero-error, stable and consistent digital signal acquisition in complex electromagnetic interference and harsh industrial environments.

Certified with IEC 61508 SIL 3 functional safety standard and TÜV safety approval, the TRICONEX 3503E features industrial wide-temperature design, full-channel self-diagnosis, online hot-swap and strong anti-interference performance. It is widely deployed in ESD emergency shutdown systems, FGS fire and gas systems and process safety interlock systems, providing reliable switch state data for SIS safety logic judgment, equipment state monitoring and accident protection. It is one of the most mainstream and stable universal digital input modules for Tricon classic safety systems.

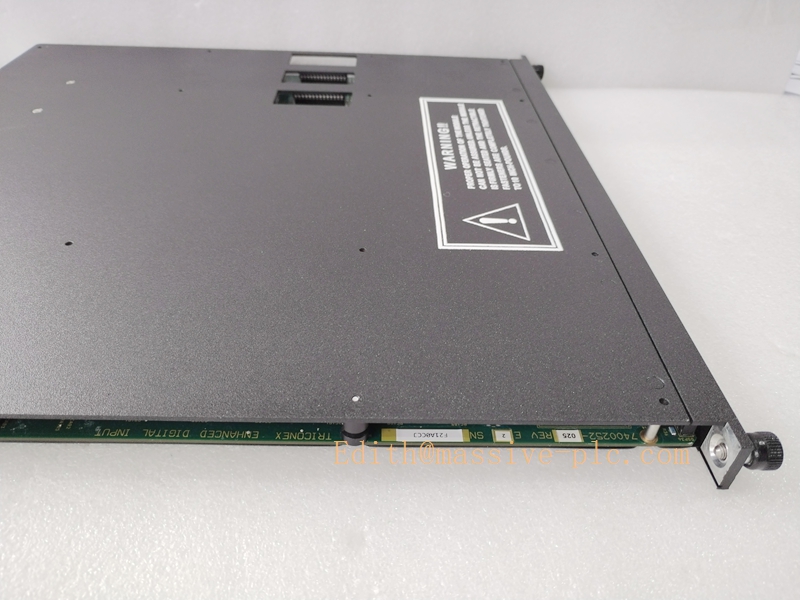

TRICONEX 3503E

Series Model Classification & Peer Models

The TRICONEX 3503E belongs to the Tricon 35xx TMR Safety I/O Series, focusing on universal digital signal acquisition for safety loops. It has clear series positioning and complete peer matching models, covering digital input, pulse input and special signal acquisition scenarios:

2.1 Product Positioning: Standard universal TMR digital input module, used for general on-site switch state signal collection, suitable for most conventional SIL3 safety interlock loops, serving as the basic universal input unit of Tricon SIS system.

2.2 Same-Series Typical Models

3511: High-precision TMR pulse/frequency input module, specially used for flow meter pulse and equipment speed signal acquisition, different from 3503E digital switch input positioning.

3501: Basic standard digital input module, 3503E is its enhanced upgraded version with stronger anti-interference and wider temperature adaptability.

3533: High-density digital input module, optimized for large-scale point acquisition scenarios, suitable for large-area equipment interlock monitoring.

2.3 System Compatibility: Fully compatible with classic Tricon racks, CX/EX series safety systems, perfectly matched with 3008 main processor module, supporting TriStation 1131 configuration software debugging and programming.

Core Technical Specifications & Product Specifications

Core Product Features

4.1 TMR Triple Redundant Fault-Tolerant Safety Design

The TRICONEX 3503E adopts three completely independent signal acquisition and processing channels, operating synchronously and executing 2oo3 voting logic in real time. When a single channel encounters hardware failure, transient signal interference or line abnormality, the system automatically isolates the faulty channel and outputs accurate and consistent switch state signals. This fundamental design eliminates single-point failure risks of safety loops, fully complying with SIL3 high-level industrial safety operation standards and ensuring no misjudgment or missed judgment of safety interlock signals.

4.2 High-Density & High-Stability Digital Signal Acquisition

With 32 high-density independent input channels, the module supports large-capacity field digital switch signal collection. It is compatible with universal 24VDC level signals and dry contact signals of various industrial limit switches, pressure switches and emergency stop buttons. Built-in hardware jitter filtering and signal stabilization circuits effectively filter on-site transient clutter and interference pulses, ensuring long-term stability and consistency of switch state judgment data.

4.3 Full-Coverage Intelligent Self-Diagnosis

The module integrates a comprehensive self-diagnosis system, which real-timely monitors channel open circuit, short circuit, abnormal signal voltage and internal circuit operation status. It automatically generates standard fault codes and detailed event logs, supports local indicator status prompt and upper computer remote fault query. It helps operation and maintenance personnel quickly locate wiring faults, sensor damage and module hidden dangers, greatly improving system troubleshooting efficiency.

4.4 Zero-Downtime Online Hot-Swap Maintenance

Supporting complete online hot-swap function, the 3503E module can be disassembled, inspected and replaced during normal SIS system operation without rack shutdown, production suspension or interruption of safety interlock logic. Combined with TMR redundant fault-tolerant architecture, the safety loop maintains full protection capability during maintenance, realizing zero monitoring blind spots and zero safety interruption for 24/7 continuous operation.

4.5 Excellent Harsh Environment Adaptability

Adopting industrial-grade anti-aging components and enhanced EMC electromagnetic compatibility design, the module has strong resistance to electromagnetic interference, vibration, temperature fluctuation and humidity erosion. It can operate stably for a long time in -40℃ to +70℃ ultra-wide temperature range and high-humidity non-condensing environment, adapting to harsh industrial scenarios such as petrochemical, thermal power and natural gas with high interference and severe environmental conditions.

4.6 High Compatibility & Low Operation Cost

The 3503E module has perfect compatibility with all Tricon series racks, main processors and supporting accessories. It supports plug-and-play installation and one-click configuration debugging, compatible with old and new SIS system versions. It is suitable for new project construction and old equipment renovation and replacement, with low maintenance difficulty and long service life, effectively reducing the overall operation and maintenance cost of industrial safety systems.

TRICONEX 3503E

Industrial Application Scenarios

The TRICONEX 3503E TMR digital input module is widely used in SIL3-level high-risk process industrial safety instrumented systems, covering petrochemical, natural gas gathering and transportation, coal chemical, thermal power generation, metallurgy, pharmaceutical and other industries. It is a core signal acquisition component for ESD emergency shutdown systems, FGS fire and gas monitoring systems and rotating machinery safety protection systems.

Specific application scenarios include: real-time collection of emergency stop button signals, equipment start-stop state feedback, safety door and isolation door switch state monitoring, process over-limit switch signal acquisition, fire alarm switch signal input, and interlock state feedback of key production equipment. It provides accurate and reliable discrete signal basis for safety system interlock judgment, abnormal alarm and emergency shutdown actions, ensuring the safe and stable operation of high-risk industrial production devices.

Standard Installation Guidelines

6.1 Pre-Installation Preparation

Before installation, confirm that the module model matches the system configuration, check the appearance for damage, oxidation or pin bending, and verify the integrity of module accessories. Cut off the rack auxiliary power supply and ensure the on-site installation environment is dust-free, dry and vibration-free. Prepare professional insulating tools and standard industrial wiring cables to avoid static electricity damage to the module circuit.

6.2 Rack Installation Steps

The 3503E adopts standard Tricon rack modular plug-in installation. Align the module with the rack slot guide rail, push the module smoothly into the slot until it is tightly locked, and fix the module locking screw to avoid loose contact caused by equipment vibration. Ensure the module is inserted in place, the backplane bus is fully connected, and no offset or virtual connection occurs.

6.3 Field Wiring Specification

Adopt shielded twisted-pair cables for on-site signal wiring, reasonably distinguish 24VDC power lines and signal lines to avoid mixed wiring interference. The wiring must be firm and standardized, with no bare wire exposure or virtual connection. Complete channel wiring in strict accordance with the schematic diagram, and conduct continuity and insulation test after wiring to eliminate hidden dangers such as short circuit and open circuit.

6.4 Post-Installation Debugging

After installation and wiring are completed, power on the rack slowly, observe the module indicator status, and use TriStation 1131 software for online debugging. Verify the normal acquisition and response of each channel signal, confirm that the self-diagnosis function is normal, and complete parameter configuration and signal calibration to ensure the module works normally.

Daily Maintenance & Fault Maintenance Guidelines

7.1 Daily Routine Maintenance

Regularly check the module operating status, indicator lights and rack operating temperature and humidity to ensure the module works in a standard environment. Regularly clean the module surface and rack dust to avoid dust accumulation affecting heat dissipation and circuit conduction. Regularly check wiring firmness and shield grounding status to prevent signal interference caused by poor grounding or loose wiring. Regularly back up system configuration and fault logs to facilitate subsequent maintenance and analysis.

7.2 Common Fault Diagnosis & Maintenance

Signal Abnormality: When individual channel signals are lost or jittered, first check on-site wiring, sensor status and line shielding, eliminate external interference and wiring faults, and calibrate channel signal parameters.

Module Alarm Fault: Query fault codes through upper computer software, locate faults such as circuit abnormality and communication deviation, and perform targeted maintenance. For temporary interference faults, restart and reset the module after eliminating external interference.

Communication Interruption Fault: Check the backplane bus connection and module insertion status, clean the slot pins to avoid poor contact, and confirm the normal operation of the main processor and bus link.

7.3 Replacement & Hot-Swap Maintenance Specifications

For faulty modules that cannot be repaired, adopt online hot-swap replacement without shutting down the system. Before replacement, confirm the system is in normal operating state, loosen the module fixing screws, pull out the faulty module smoothly, insert the new module in place and lock it tightly. After replacement, the system will automatically complete program matching and signal synchronization without manual repeated configuration, realizing zero-downtime maintenance.

7.4 Long-Term Preservation & Aging Maintenance

Spare modules need to be stored in a dry, constant-temperature and dust-free environment to avoid moisture, static electricity and mechanical collision. For modules operating for a long time, regularly check circuit aging, signal drift and self-diagnosis functions, and replace aging modules in advance to avoid sudden failure affecting system safety operation.
