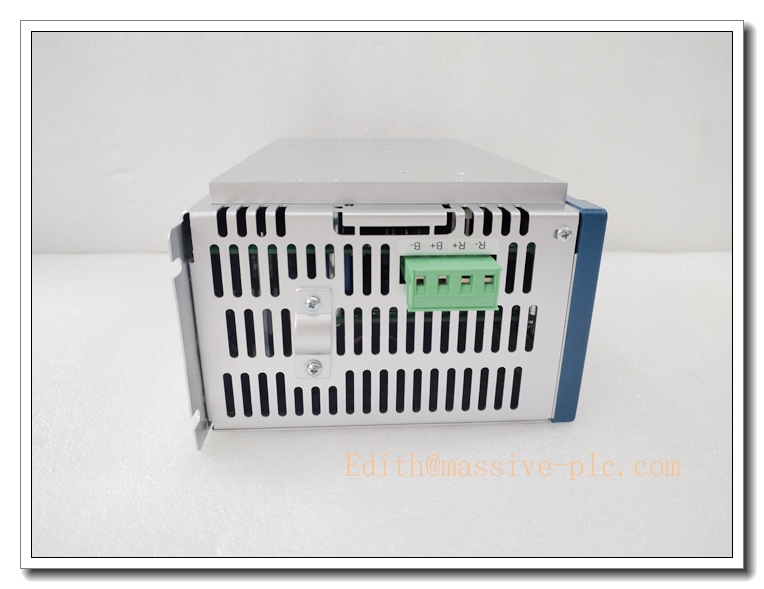

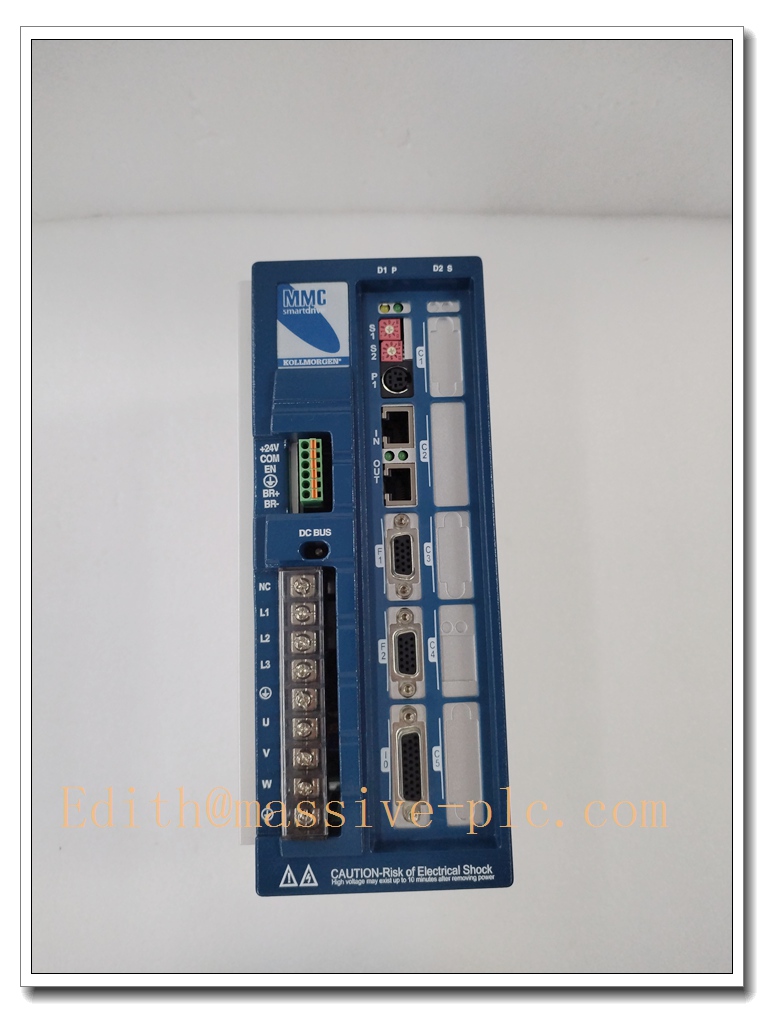

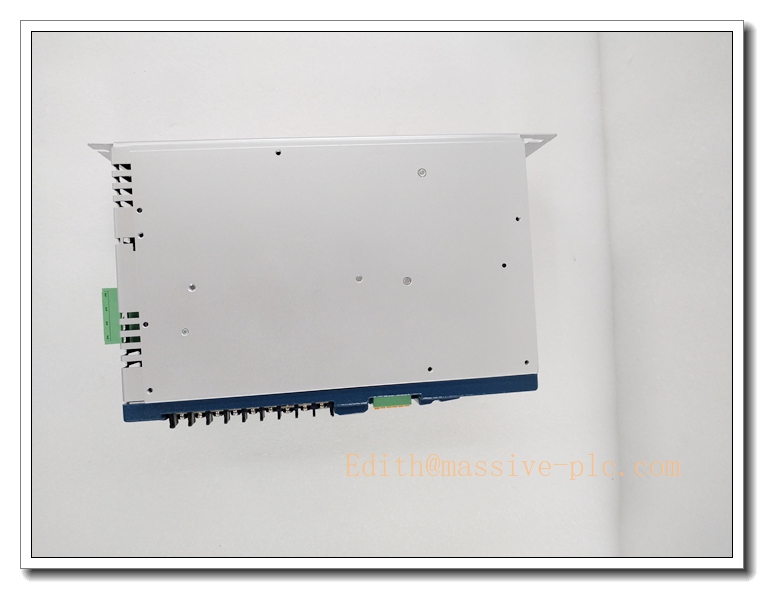

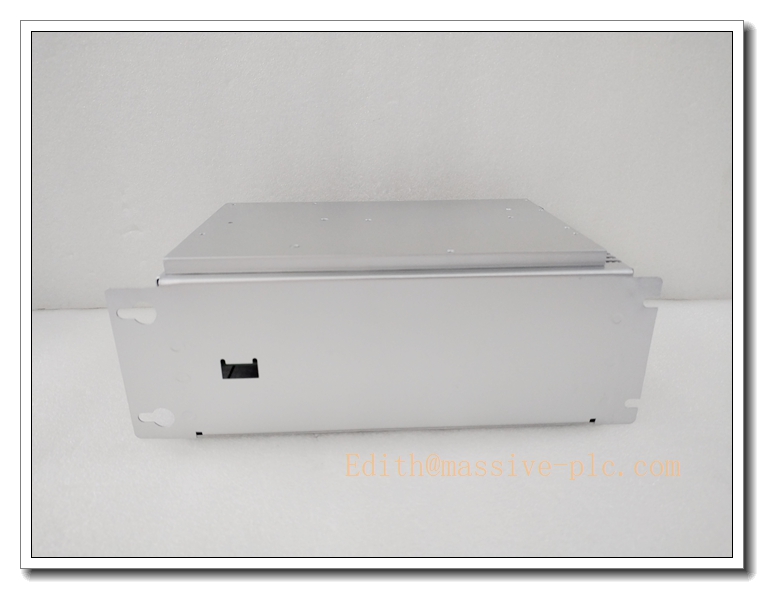

MMC-SD-0.5-230-D MMC Smart Digital Servo Drive
Product Core Introduction
The MMC-SD-0.5-230-D is a compact digital servo drive manufactured by MMC (Motion Control Corporation). It belongs to the MMC-SD series of smart servo amplifiers, engineered for low-power brushless servo motor control. This unit integrates position, velocity and torque closed-loop control, supporting multiple feedback types and digital fieldbus communication. Designed for small automation axes, it delivers stable high-precision motion control within a slim form factor. The model MMC-SD-0.5-230-D features 230VAC single-phase input and 0.5kW rated output power, widely used for light-duty automated machinery, laboratory automation and small material handling systems.
MMC-SD-0.5-230-D
Main Technical Specifications
| Item | Parameter |
|---|---|
| Manufacturer | MMC (Motion Control Corporation) |
| Model | MMC-SD-0.5-230-D |
| Type | Digital Smart Servo Drive |
| Rated Output Power | 0.5 kW |
| Input Voltage | Single Phase 110–230 VAC |
| Continuous Output Current | 3.5 A RMS |
| Peak Output Current | 10.5 A RMS |
| PWM Frequency | 16 kHz |
| Control Modes | Position / Velocity / Torque mode configurable |
| Feedback | Incremental encoder, Hall sensor |
| Communication | RS485, Modbus RTU, digital I/O |
| Control Power | 24VDC for logic circuit |
| Operating Temperature | 0℃ ~ +50℃ (derate above 45℃) |
| Storage Temperature | -20℃ ~ +70℃ |
| Humidity | 5–95% RH, non-condensing |
| Protection | Overcurrent, overvoltage, undervoltage, overheat, motor stall, feedback loss, short circuit |
| Certification | CE, UL, RoHS |
| Mounting | Panel mount inside control cabinet |
| Protection Class | IP20 |
| Weight | 0.7 kg |
Brand Same Series Model Recommendation
- MMC-SD-0.2-230-D: 0.2kW low-power version for miniature servo axes
- MMC-SD-0.5-230-D: 0.5kW standard compact model for light-duty automation
- MMC-SD-1.0-230-D: 1.0kW mid-power variant for medium load servo applications
- MMC-SD-2.0-230-D: 2.0kW high-power model for heavier continuous loads
Professional Quality Control Test Standard SOP
- Visual Inspection: Examine housing, PCB, terminals, connectors and labels for scratches, burn marks or component damage.
- No-load Power-On Test: Apply rated AC input, verify power LED status, no abnormal noise or overheating.
- Feedback Interface Test: Connect encoder simulator, validate feedback signal reading and position tracking accuracy.
- Closed-loop Motor Test: Run no-load motor jogging test; check stability of position, speed and torque loops.
- Communication Test: Establish RS485 / Modbus RTU connection, verify read/write of parameters and motion commands.
- Protection Simulation: Simulate overcurrent, over-temperature and feedback loss to verify fast fault trip and alarm output.
- Thermal Cycling Test: Temperature cycling from -20℃ to +60℃ for 24 hours to validate thermal stability.
- Vibration Screening Test: Simulate cabinet vibration to check solder joints and connector reliability.
- Burn-in Test: 72 hours continuous partial-load burn-in, record diagnostic logs before packaging.
New Module Installation
- Cut off cabinet main power, implement LOTO procedure and wear anti-static wristband.
- Confirm model .5-230-D matches servo motor specifications and control system BOM.
- Secure the servo drive on cabinet mounting plate, maintain required ventilation clearance around the unit.
- Wire 230VAC power, motor power cable, encoder feedback cable and 24VDC control power following official wiring diagram. Separate power cables from signal cables to reduce EMI.
- Inspect wiring continuity and insulation resistance, confirm no short circuit or reversed wiring.
- Connect RS485 communication bus, set device address and bus termination resistor.
- Restore power supply, use MMC configuration software to input motor parameters and tune servo control loops.
- Perform jog test, positioning test and cycle test; confirm no fault alarms before production operation.
MMC-SD-0.5-230-D
Application Scenarios & Features
Application Scenarios
- Small automated assembly stations
- Laboratory test and inspection equipment
- Light-duty packaging machinery
- Small gantry and pick-and-place systems
- Conveyor speed regulation and positioning control
Features
✅ Compact low-power servo drive, 0.5kW power rating for small brushless servo motors ✅ Three configurable control modes: position, velocity and torque ✅ Support incremental encoder and Hall sensor feedback ✅ RS485 Modbus RTU interface for easy integration with PLC ✅ Comprehensive built-in fault diagnosis for rapid on-site troubleshooting ✅ Multiple hardware protection functions to protect drive and motor ✅ Panel mount design, space-saving for small control cabinets ✅ Drop-in replacement for existing MMC-SD series servo drives
FAQ
A: Yes, it supports wide single-phase input from 110VAC up to 230VAC.
A: .5-230-D is rated 0.5kW; MMC-SD-1.0-230-D is 1.0kW for higher torque motors.
Q3: Drive shows feedback loss alarm after wiring? A: Check encoder wiring, connector pin integrity, cable breakage and encoder power supply.
Q4: Can multiple drives be connected on the same RS485 Modbus bus? A: Yes, assign unique Modbus address for each drive and properly terminate the bus at two endpoints.
Q5: Servo vibrates during positioning? A: Adjust servo loop gain, check mechanical backlash and verify motor and load coupling tightness.
