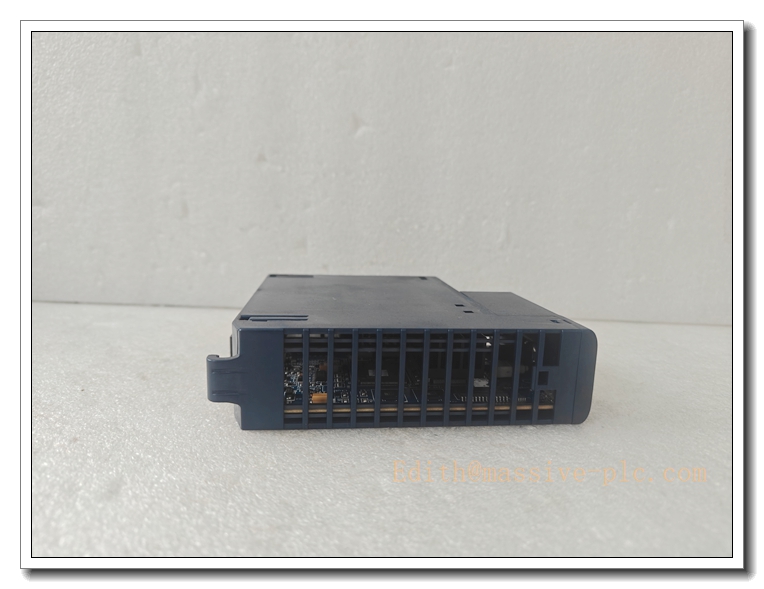

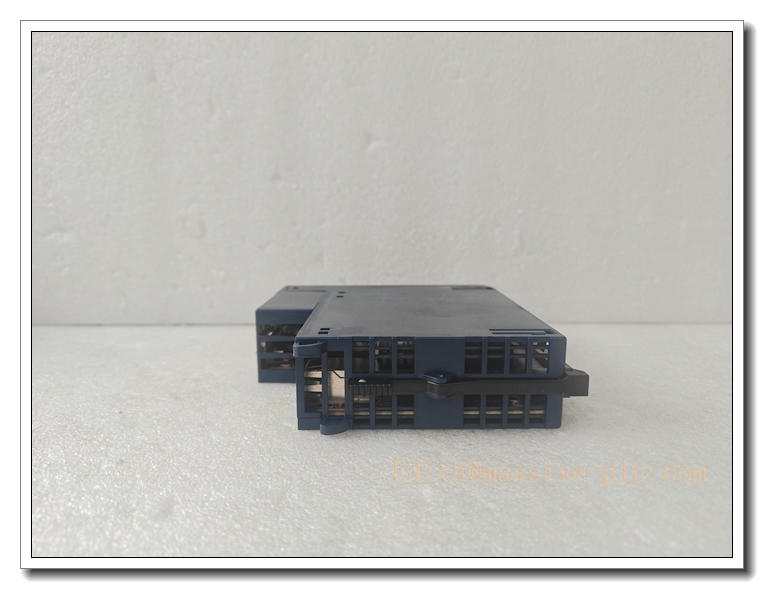

IC695ETM001 PACSystems RX3i 10/100Mbps Ethernet Interface Module with Embedded Switch - Image 4

IC695ETM001 PACSystems RX3i 10/100Mbps Ethernet Interface Module with Embedded Switch

  1. IC695ETM001 – RX3i Ethernet interface module (Target Model)
  2. IC695NIU001 – RX3i Ethernet remote I/O NIU
  3. IC695CPE330 – RX3i CPU
  4. IS200TRLYS1B – Mark VI relay output board
  5. IS230JPDGH1B – Mark VIe JPDG power distribution module
  6. LV5F30-NF – PECeLite engine controller
Request Quote
Category: Brand:

Description

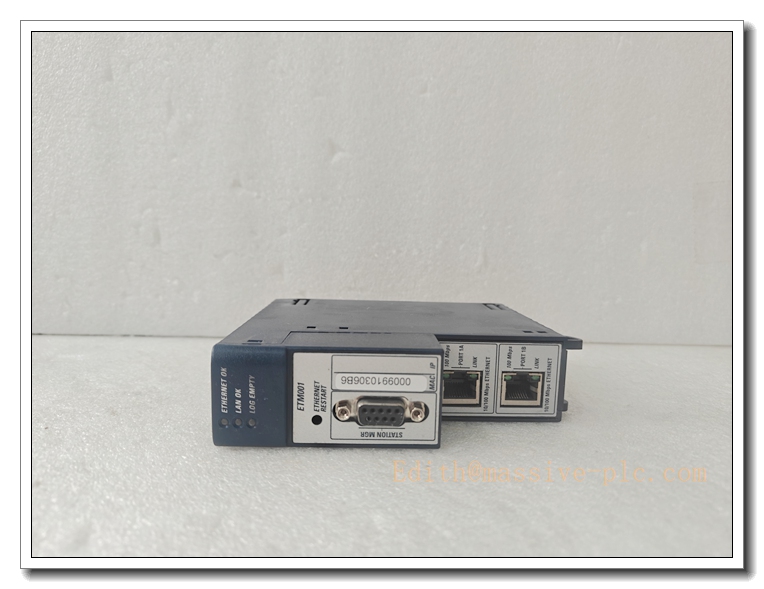

IC695ETM001 PACSystems RX3i 10/100Mbps Ethernet Interface Module with Embedded Switch



Product Application

IC695ETM001 belongs to GE (Emerson) PACSystems RX3i PLC series. It must be installed in the main CPU rack on RX3i universal backplane, connects RX3i controller to Ethernet network for programming, HMI communication, inter-controller data exchange and Modbus TCP field device communicationQualitrol. Built-in 2-port embedded Ethernet switch supports daisy-chain topology, saving external network switches. Common applications: power plant auxiliary control, water treatment, oil & gas skid control, manufacturing line PLC systems. It communicates with other PACSystems, Series 90 and VersaMax controllers over EthernetManualsLib.

IC695ETM001-HW

Product Specifications

  • Part Number: IC695ETM001
  • Manufacturer: GE Fanuc / Emerson
  • Product Type: RX3i Ethernet Interface Module
  • Processor: 200 MHz onboard Ethernet processor
  • Ethernet Ports: 2 × shielded RJ45, 10/100BaseTX auto-sensing, auto MDI/MDIX
  • Embedded 2-port Ethernet switch for daisy chaining
  • Serial Port: RS232 DCE Station Manager port (DB9 female), baud rate 1200–115200 bps
  • Supported Protocols: SRTP, EGD (Ethernet Global Data), Modbus TCP (Client / Server), SNTP time sync
  • Network Standard: IEEE802.3 / IEEE802.2
  • Hot Swap: Support hot insertion/removal with rack power on
  • Backplane: RX3i universal backplane IC695CHS007 / CHS012 / CHS016
  • Power: Powered by RX3i backplane
  • LED Indicators: Ethernet OK, LAN OK, port speed/activity, log empty
  • Operating Temperature: 0 ℃ ~ +60 ℃
  • Humidity: 5% ~95% RH non-condensing
  • Certification: CE, UL
  • Product Status: Active spare support, widely stocked for legacy RX3i maintenance
  • Approx. Weight: 0.38 kg



Core Technical Parameters

  • Only one MAC / one IP address for the two switched RJ45 ports
  • EGD for high-speed periodic peer-to-peer controller data sharing
  • SRTP for programming, online monitoring and controller service requests
  • Modbus TCP client/server to connect to HMI, VFDs, instruments and third-party devices
  • Embedded restart button: reboot Ethernet firmware without power cycling whole rack
  • Firmware upgrade via WinLoader software through RX3i CPU
  • Station Manager RS232 port for local diagnostic and IP configuration



Recommended Matching Spare Parts & Accessories (8 Items)

  1. RX3i CPU module (IC695CPE series)
  2. RX3i universal backplane IC695CHS0xx
  3. RX3i power supply IC695PSD / PSU series
  4. CAT5e shielded Ethernet cable
  5. DB9 serial station manager cable
  6. Proficy Machine Edition programming software
  7. RX3i analog / discrete I/O modules
  8. Replacement backplane connectors



Product Features

✅ Dual RJ45 with Built-in Ethernet Switch Two auto-negotiate 10/100 ports with internal switch, allow daisy-chain wiring of multiple PLC nodes without extra switch hardware.

✅ Multi-protocol Support EGD for fast real-time peer data exchange; SRTP for programming/download; Modbus TCP client/server for third-party instrument integration.

✅ Hot-Swap Capability Can replace module online while RX3i rack remains powered, reduce system downtime during maintenance.

✅ Dedicated RS232 Station Manager Port Local serial port for direct console access, IP setup and troubleshooting independent of Ethernet network.

✅ SNTP Time Synchronization Synchronize controller clock from network time server for event logs and sequence of events.

✅ Front Panel Status LEDs Clear visual indication of module health, network link and port activity for quick on-site diagnosis.

✅ RX3i Main Rack Only Install only in main CPU rack, cannot be used in remote expansion I/O racks.

Installation Guidelines

  1. Power off RX3i rack, insert IC695ETM001 into free universal backplane slot and lock module latches.
  2. Power on rack, open Proficy Machine Edition and scan hardware.
  3. Assign module IP address via Station Manager serial port or software configuration.
  4. Wire Ethernet network to RJ45 ports; use shielded CAT5e cable for industrial environment.
  5. Configure EGD exchange tables, Modbus TCP server/client parameters as required.
  6. Download project to RX3i CPU, verify network communication with HMI and peer controllers.
  7. Test daisy-chain communication if using multi-node topology.
  8. Perform hot-swap test in maintenance window before online commissioning.



Maintenance Instructions

Daily Maintenance Check front panel LED status; monitor network link and communication alarms in HMI / Proficy ME.

Periodic Maintenance (Every 6–12 months) Clean rack air filter. Inspect RJ45 and backplane connectors. Backup PLC project and Ethernet configuration.

Fault Maintenance

  • No network link: Check cable, auto-negotiation and IP conflict.
  • EGD data loss: Verify EGD exchange configuration and network latency.
  • Module communication fault: Try front panel Ethernet reset button; if failure persists replace module.
  • Do not modify IP and EGD table while critical process is running without control engineer approval.

Long-Term Operation Tips Maintain cabinet temperature within 0~60℃. Keep spare IC695ETM001 and backup project files.
