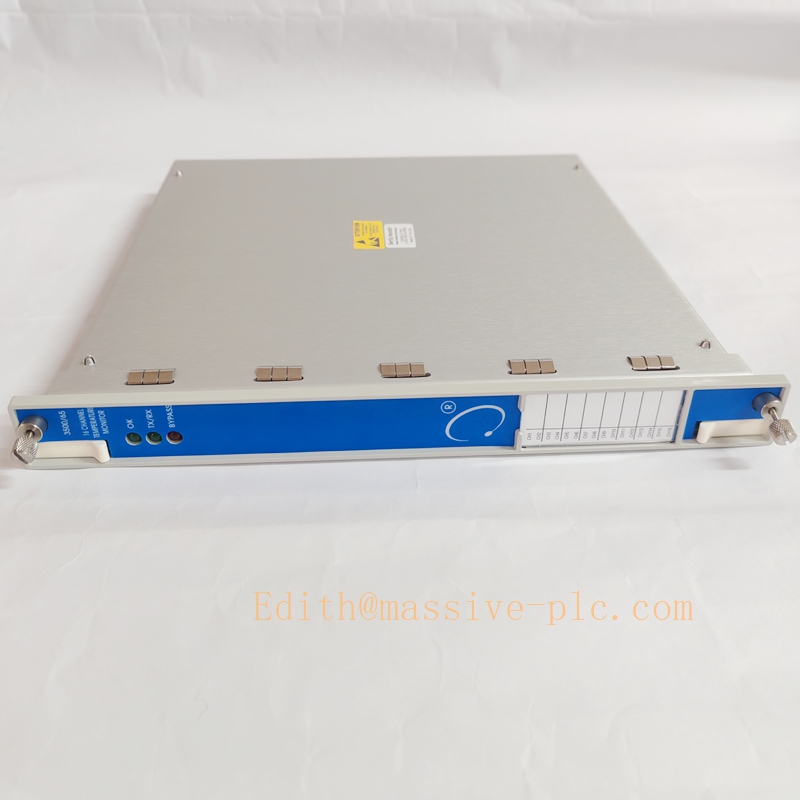

Bently Nevada 3500/65-01-00 16-Channel Temperature Monitor Module Technical Profile
1. Product Details
- Core Composition: A dedicated 16-channel temperature monitoring module for the Bently Nevada 3500 Machinery Protection System, consisting of the main processing board 145988-02 and the matching isolated I/O termination board 172103-01.
- Physical Specs: Dimensions 24.18 cm × 2.44 cm × 24.13 cm, net weight 0.8~0.91 kg, manufactured in the USA, with 12-month factory warranty.
- Electrical Specs: Operating temperature range from -40°C to +85°C, no agency approval restriction for general industrial deployment.
2. Primary Applications
- Critical Machinery Thermal Monitoring: Deployed on turbines, compressors, industrial fans, motors and pumps to capture real-time temperature data of key components.
- Industrial Scenarios: Widely adopted in power generation, petrochemical, metallurgy and other heavy industries, supporting predictive maintenance workflows for rotating equipment.
- System Compatibility: Seamlessly integrated into the 3500 series rack, fully compliant with API 670 machinery protection standards.
3. Series Model Variants
- Standard Configurations: 3500/65-01-00, 3500/65-01-01, 3500/65-01-CN, 3500/65-02-00.
- Input Type Options: RTD-only configuration, isolated tip TC-only configuration, and combined RTD + isolated tip TC configuration for different sensor access requirements.
- Agency Approval Options: No certification, CSA/NRTL/C certification, ATEX hazardous area certification for different site safety specifications.
4. Core Features
- Multi-Sensor Compatibility: Natively supports Resistance Temperature Detectors (RTDs) and isolated tip Thermocouples (TCs) without additional signal converters.
- Software-Defined Configuration: All 16 channels are fully programmable via the official 3500 Rack Configuration Software, no hardware jumper adjustment required.
- Harsh Environment Adaptability: Robust industrial-grade construction, hot-swappable under powered status without interrupting other monitoring channels.
5. Main Functions
- High-Precision Temperature Measurement: Delivers accurate real-time thermal data for 16 independent temperature points simultaneously.
- User-Configurable Alarm: Each channel supports custom alarm setpoints, triggering corresponding relay outputs when temperature exceeds predefined thresholds.
- Data Transmission: Sends all captured temperature data to the 3500 system host and linked System 1 platform for centralized condition analysis and historical trend tracking.
