Bently Nevada 3500/50 (125808-05) Speed Monitor Module

Description

Bently Nevada 3500/50 (125808-05) Speed Monitor Module

Product Overview

The Bently Nevada3500/50 Speed Monitor Module (125808-05) is a high-performance, field-proven speed and zero-speed monitoring card designed for the Bently Nevada 3500 Machinery Protection System. As a core safety monitoring component for critical rotating machinery, it delivers precise rotational speed measurement, overspeed trip protection, standstill detection and acceleration/deceleration monitoring for turbines, compressors and other high-speed process equipment. The part number 125808-05 is a mature, mid-late generation hardware revision of the 3500/50 series, featuring optimized signal filtering circuits, upgraded firmware stability and standardized industrial calibration. This version is widely stocked and deployed for legacy and mid-term 3500 system projects, serving as a reliable mainstream spare part and operating module worldwide.

The module accepts variable-frequency pulse inputs from magnetic pickup sensors and proximity probe assemblies, converting field pulse signals into accurate real-time RPM values. It supports fully configurable alarm, alert and danger trip thresholds to implement equipment overspeed protection and zero-speed interlock logic. Compliant with strict API 670 machinery protection standards, the 3500/50 (125808-05) provides comprehensive channel self-diagnosis, flexible software configuration and long-term stable operation in standard industrial environments. It is extensively applied in thermal power, petrochemical, natural gas transmission and process manufacturing industries for equipment safety monitoring and system spare part replacement.

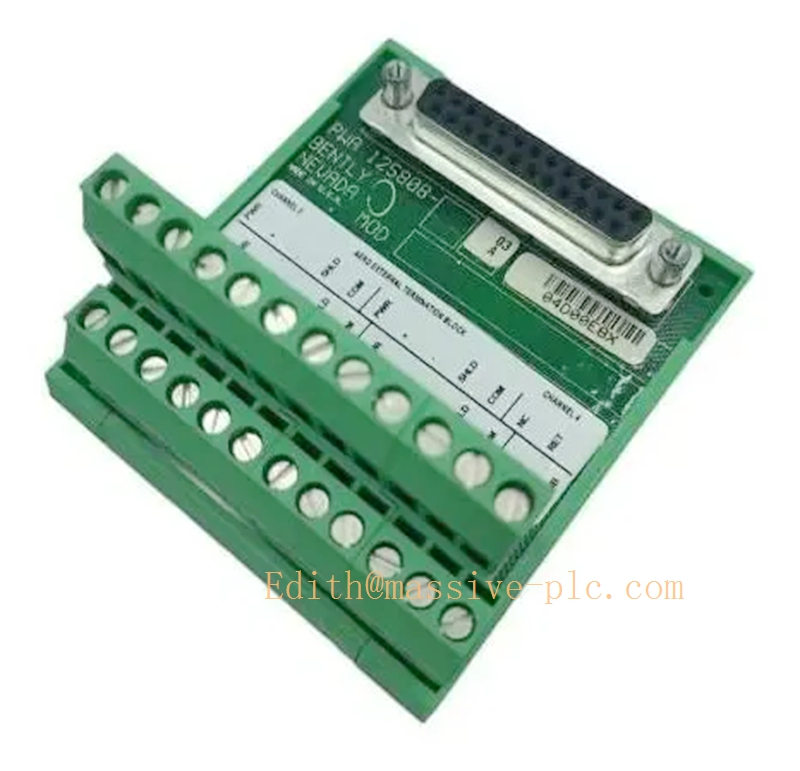

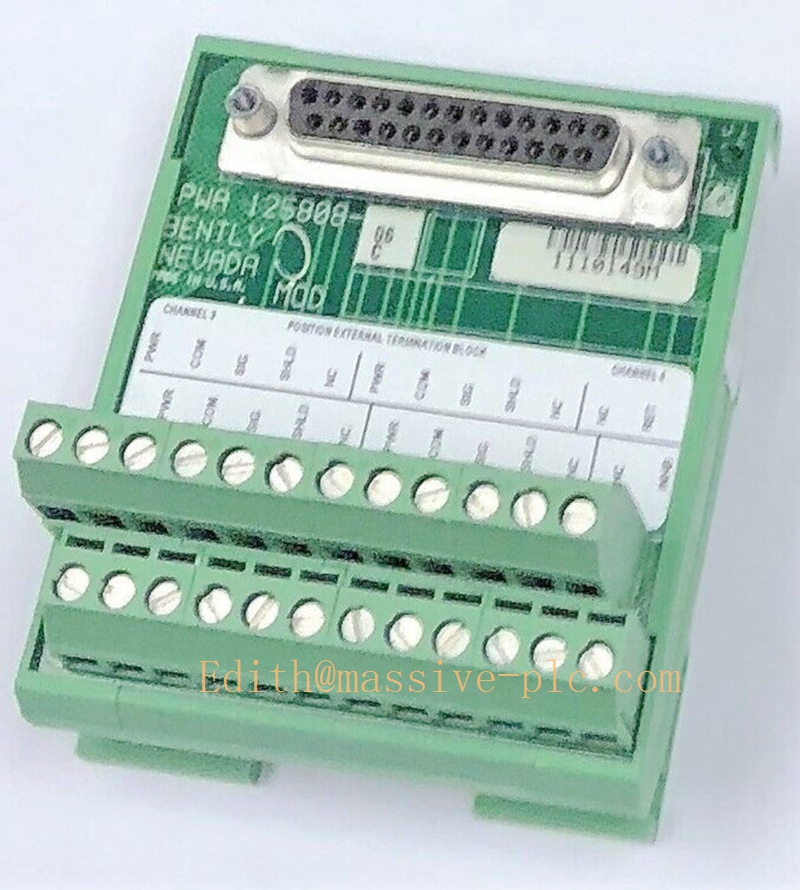

BENTLY 125808-05

Core Technical Parameters

Main Product Features

3.1 Optimized Stable Measuring Performance

The 3500/50 (125808-05) adopts optimized pulse filtering and frequency demodulation circuits compared with early low-version revisions. It effectively suppresses field signal clutter and low-frequency interference, delivering ultra-stable RPM output under variable speed and vibration working conditions. Supporting full-range measurement from complete standstill to high-speed rotation, it maintains high measurement accuracy and no data drift during long-term continuous operation, fully adapting to conventional industrial machinery monitoring requirements.

3.2 Dual Independent Redundant Monitoring Channels

Equipped with two physically and electrically isolated monitoring channels, the module supports dual redundant speed acquisition for a single rotating machine or synchronous speed monitoring of two independent pieces of equipment. Each channel features independent signal processing, threshold configuration and fault diagnosis logic. The dual-channel redundant design eliminates monitoring blind spots caused by single-channel failure, greatly improving the reliability and safety of the machinery overspeed protection loop.

3.3 Comprehensive Machinery Safety Protection Logic

This module integrates multiple core protection functions including adjustable overspeed alert, critical overspeed trip, zero-speed standstill interlock and acceleration anomaly monitoring. It can accurately capture abnormal operating states such as equipment overspeed runaway, sudden speed drop and abnormal startup, and output reliable hardwired trip signals to trigger system interlock shutdown. It effectively avoids major mechanical faults such as blade collision, bearing burnout and equipment overload damage, ensuring safe and stable operation of core rotating equipment.

3.4 Full-Loop Intelligent Self-Diagnosis Capability

The 125808-05 revision supports full-link real-time self-diagnosis covering field sensors, signal wiring and internal hardware circuits. It can accurately identify common faults including sensor disconnection, signal attenuation, pulse distortion and internal circuit abnormalities, and generate standardized fault codes and operation logs. Diagnostic data can be uploaded to the upper monitoring system in real time, helping maintenance personnel quickly locate faults and eliminate hidden dangers, ensuring 100% availability of the speed protection system.

3.5 Excellent Industrial Environmental Adaptability

Adopting industrial-grade components and standardized EMC anti-interference design, the 125808-05 module has strong adaptability to complex industrial environments. It can resist on-site electromagnetic interference, mechanical vibration and power fluctuation, ensuring stable signal acquisition and accurate data output in factory workshops and field equipment rooms. It supports 24/7 long-term uninterrupted operation and meets the continuous monitoring demands of industrial production equipment.

3.6 Flexible Configuration & Low Maintenance Cost

All monitoring parameters, alarm thresholds and protection logic can be remotely configured, calibrated and adjusted through the official 3500 system software. It supports real-time data viewing, historical trend recording and fault log query, facilitating daily equipment condition analysis and troubleshooting. Adopting standard rack plug-and-play installation, the module is easy to install, replace and debug, effectively reducing system operation and maintenance costs.

Specific Application Scenarios

The Bently Nevada 3500/50 (125808-05) speed monitor module is widely used in industrial machinery safety protection systems, dedicated to speed monitoring and overspeed safety protection of core high-speed rotating equipment in thermal power, petrochemical, natural gas and coal chemical industries.

Typical Industrial Application Scenarios:

• Steam & Gas Turbine Safety Protection: Real-time speed tracking and critical overspeed trip protection for power generation turbines to prevent equipment runaway and major mechanical safety accidents.

• Process Compressor Monitoring: Speed feedback detection and zero-speed interlock control for petrochemical and natural gas centrifugal compressors, ensuring safe start-stop and interlock logic execution.

• Large Fan & Pump Supervision: Abnormal speed alarm and fault diagnosis for large auxiliary rotating equipment to avoid overload operation and mechanical damage.

• Equipment Maintenance Interlock Control: Zero-speed standstill detection to confirm equipment static state, providing reliable safety locking basis for equipment maintenance and personnel operation.

• Mid-Generation 3500 System Spare Part Replacement: The most mainstream stable revision for mid-term 3500 system maintenance, perfectly matching mid-version system hardware and firmware.

Supporting Components

The 3500/50 (125808-05) forms a complete industrial speed monitoring and protection system with standard Bently Nevada 3500 series supporting accessories:

• 3500/05 System Rack: Standard system chassis, providing unified mechanical installation and backplane bus communication interface.

• 3500/15 Power Supply Module: Redundant system power supply unit to ensure stable and uninterrupted operation of the monitoring module.

• 3500/22 Transient Data Interface: Realizing system data upload, remote configuration and docking with upper monitoring platform.

• Magnetic Pickup Speed Sensor: Special field sensor for collecting rotating shaft speed pulse signals.

• Standard Proximity Probe Assembly: High-precision probe for speed and phase signal acquisition of high-speed rotating shafts.

• Shielded Signal Cables & Terminal Boards: Anti-interference wiring accessories to ensure stable and distortion-free signal transmission.

Related Series Models & Version Iteration

The 3500/50 125808-05 is an optimized mid-generation stable revision in the 3500 speed monitoring series, with clear iteration and replacement relationships with other versions:

• 125808-05 (Mainstream Stable Version): Optimized mid-late revision with enhanced signal stability and anti-interference performance, the most widely used version for stock spare parts and old system replacement.

• 133442-01 / 133388-02 (Early Classic Versions): Early basic revisions, gradually upgraded and replaced by 125808-05 for higher operational stability.

• 288062-02 (Latest Enhanced Version): New-generation upgraded revision for high-standard new projects, with stronger environmental adaptability and diagnostic coverage.

• 3500/40 Proximity Monitor Module: Shaft vibration and displacement monitoring module, matched with 3500/50 to form complete turbomachinery condition protection system.

• 3500/42 Vibration Monitor Module: Bearing and casing vibration monitoring unit, cooperating with speed data to realize multi-dimensional equipment fault analysis.

• 3500/53 Zero Speed Monitor: Professional zero-speed enhanced module for ultra-strict static interlock and maintenance safety scenarios.

• 3500/60 Temperature Monitor Module: Equipment temperature monitoring module, realizing joint multi-parameter safety protection for rotating machinery.
