Bently Nevada 3500/15 129478-01 High Voltage DC Power Input Module: Full Technical Profile
Product Introduction
The Bently Nevada 3500/15 129478-01 is a half-height high-voltage DC Power Input Module (PIM) engineered exclusively for the 3500 Machinery Protection System, serving as a robust, high-reliability power source for all modules installed in the 3500 rack. Designed to occupy dedicated left-side power slots on the 3500 series chassis, this unit converts wide-range high-voltage DC input into tightly regulated, noise-isolated output rails that power every monitoring, communication and relay module in the system.
It supports both single and dual redundant power configurations, with native hot-swap functionality that allows technicians to insert or remove the module at any time without disrupting the continuous operation of the entire machinery protection rack. This zero-downtime maintenance capability is critical for industrial sites where unplanned protection system shutdown would trigger costly production interruptions or safety hazards.

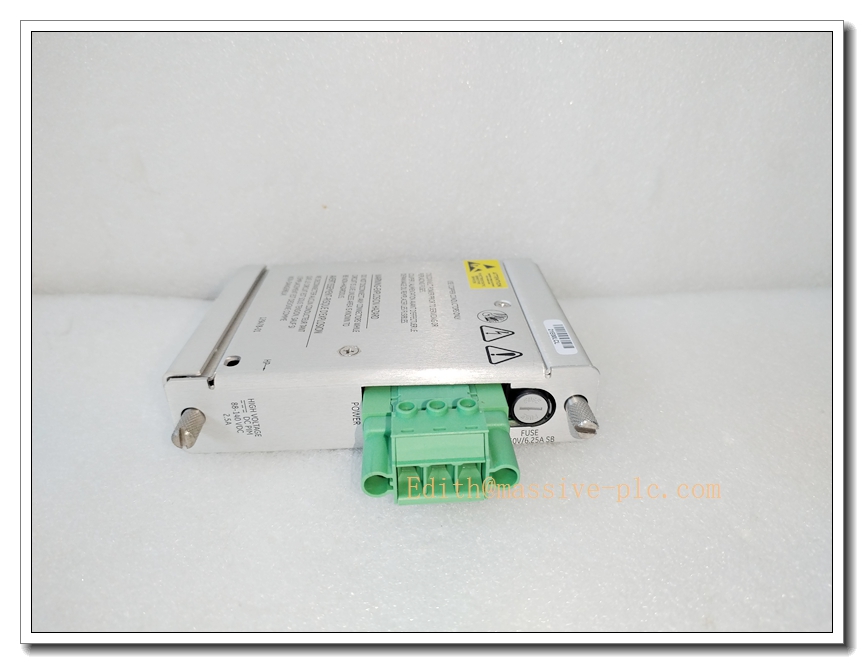

129478-01
Key Technical Specifications
| Specification | Technical Details |
|---|---|
| Module Form Factor | Half-height, dedicated left-slot 3500 rack mount design |
| DC Input Voltage Range | 150–300 Vdc nominal, 120–320 Vdc absolute operating limit |
| Maximum Continuous Output Power | 125 W, sufficient to support a fully populated 14-slot 3500 rack |
| Operating Temperature Range | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Humidity Tolerance | 95% non-condensing, no internal condensation allowed |
| Vibration Rating | 10–500 Hz, 1g peak, compliant with API 670 industrial machinery protection standards |
| Net Weight | 0.34 kg (0.75 lbs) |
| Front Panel Status Indicator | Solid green = normal operation; Flashing amber = input voltage out of tolerance; Off = no valid DC input |
| Protection Features | Built-in overcurrent, overvoltage and overtemperature hard shutdown with fault latching for post-fault diagnostics |
Typical Industrial Applications
This module is purpose-built for heavy industrial facilities where high-voltage DC power distribution is the native site standard, and continuous machinery protection is a mandatory operational requirement:
- Thermal & Hydroelectric Power Stations: Turbine supervisory instrumentation systems, paired with station battery banks that deliver 250 Vdc backup power, ensuring vibration and thrust position monitoring remains fully active even during total AC utility outages.
- Large Petrochemical Refineries: High-power centrifugal compressors, process gas expanders and large steam turbines, deployed in hazardous Class I Division 2 areas where high-voltage DC power eliminates the need for intermediate step-down transformers.
- Heavy Mining & Mineral Processing: Large SAG mills, mine hoist drive systems and overland conveyor gearboxes, where wide input voltage tolerance absorbs large DC bus transients from nearby high-power motor switching events.
- Offshore Oil & Gas Platforms: Critical rotating equipment protection systems, leveraging the module’s rugged wide-temperature performance to withstand the harsh, high-humidity marine offshore operating environment.
Critical Technical Pitfalls to Avoid
- Cross-Model Compatibility Misuse: The 129478-01 high-voltage DC PIM cannot be swapped directly with low-voltage DC or AC power modules from the 3500/15 family. Mismatched installation will cause permanent damage to the module’s input stage and may blow the 3500 rack backplane protection fuse.
- Incorrect Redundancy Slot Assignment: When installing dual redundant power supplies, the unit in the lower left slot acts as the primary source, while the upper slot unit operates as the standby backup. Misconfiguring this master/standby order will cause unexpected power transfer delays during primary feed failure.
- Unfiltered High-Voltage DC Input Connection: Directly connecting the module to an unconditioned 250 Vdc station battery bus without a dedicated EMI filter will introduce common-mode electrical noise, leading to intermittent false vibration readings on adjacent monitoring modules.
- Ignoring Early Warning Event Logs: Class 1 “input voltage approaching limit” events recorded in the 3500 system event log are early indicators of DC bus drift or internal component aging. Delaying corrective action can lead to sudden, unannounced full rack power loss during critical production cycles.
- Overloading Output Capacity: When the 3500 rack is populated with 10 or more high-channel-count monitoring modules, always verify total system power draw in the 3500 configuration software. Exceeding the 125 W maximum output rating will trigger uncommanded module resets during peak load conditions.

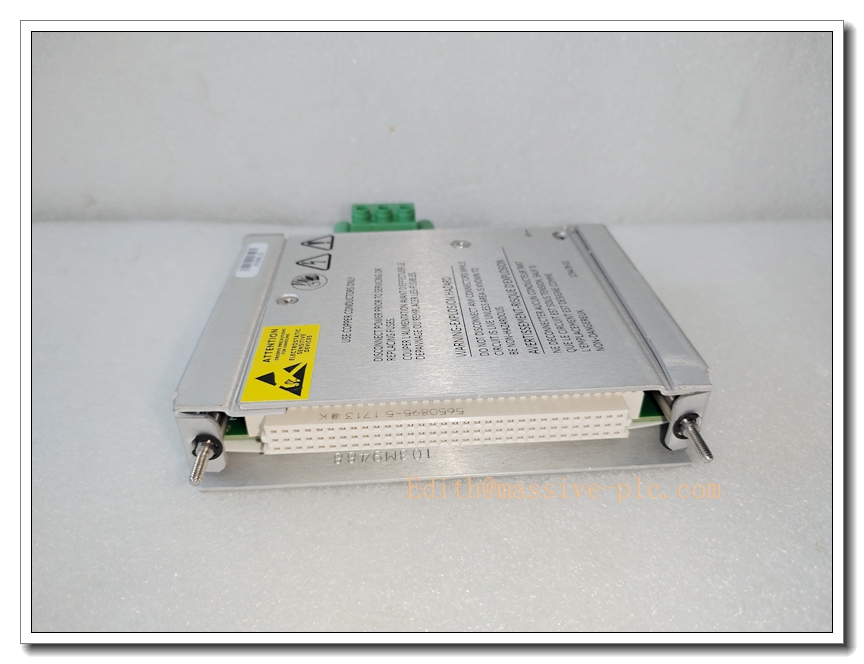

129478-01
Related Product Recommendations
- 3500/15 125840-01 High Voltage AC Power Input Module: The matching AC power unit for hybrid redundant AC+DC architectures, paired with the 129478-01 to eliminate all single points of failure from a single utility power source, delivering maximum system uptime.
- 3500/25 140734-01 Vibration Monitoring Module: Fully compatible with the 129478-01 power supply, this high-channel-count vibration module leverages the PIM’s low-noise output rails to deliver highly accurate, drift-free dynamic vibration measurements for critical rotating assets.
- 3500/92 136188-01 Communication Gateway Module: When powered by the 129478-01, this Ethernet gateway maintains uninterrupted high-speed data transmission to the plant DCS and condition monitoring server, ensuring no machinery health data is lost even during extended AC power outage events.
