Description
ABB NETA‑21 (3AUA0000093675) Remote Monitoring Tool
Product Overview
NETA‑21, Order code: 3AUA0000093675 is ABB DIN‑rail mounted remote monitoring gateway for ABB low‑voltage variable‑frequency drives. It integrates embedded web server, multi‑interface drive access, data logging and remote access functions. It collects operational data, fault records and parameter values from multiple ABB drives, delivers data via Ethernet to local web‑browser clients or ABB Ability cloud platform, supporting preventive maintenance and remote drive diagnostics without extra PC softwareABB Group. NETA‑21 supports multi‑drive connection via DDCS fiber, Modbus RTU, Panel‑Bus and Ethernet, maximum up to 32 drives per unitABB Group. NEXA‑21 is the matching fiber‑optic expansion module for ACS800 series drives.

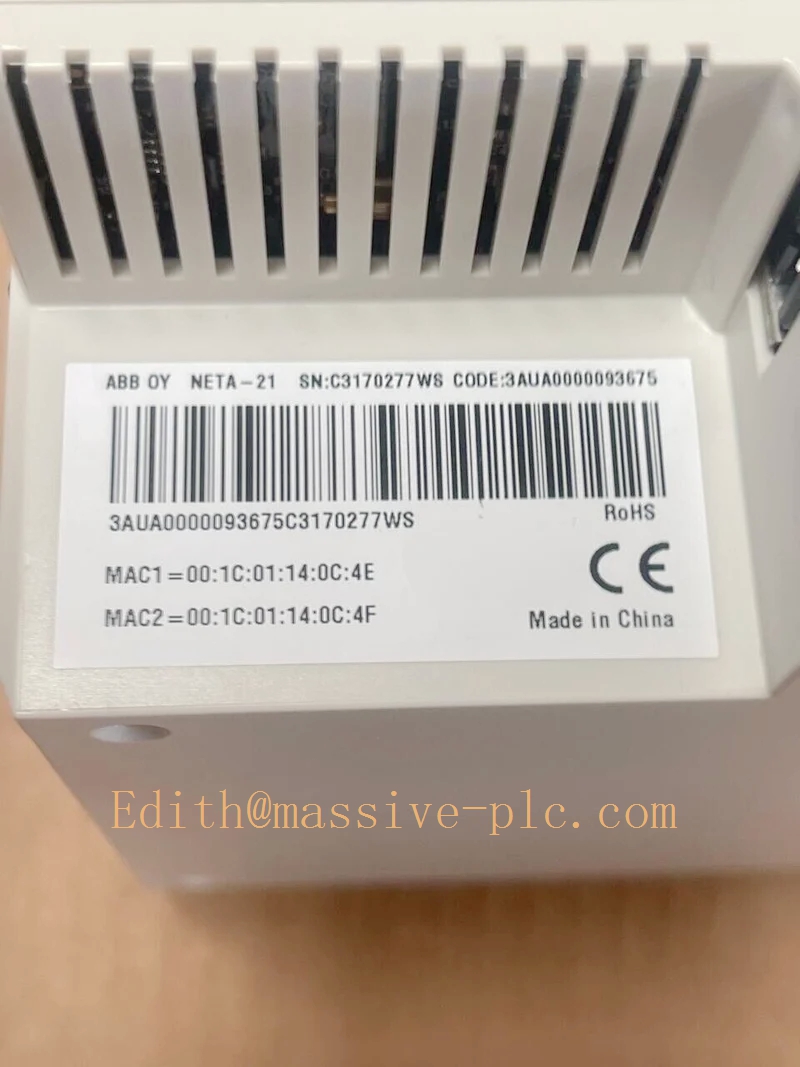

ABB NETA‑21 3AUA0000093675
Typical Applications
- Drive fleet remote monitoring: Central monitoring for multiple ABB drives in water‑treatment, mining, cement, pulp‑paper, HVAC and material‑handling sites
- Preventive maintenance: Log drive runtime, energy consumption, temperature, fault events and parameter changes for predictive service
- Web‑based local access: Use standard browser (PC / tablet / mobile phone) to read / adjust drive parameters, view real‑time waveforms and fault history
- Cloud‑connected condition monitoring: Connect to ABB Ability platform for remote site supervision (requires outbound internet access)ManualsLib
- Legacy drive system retrofit: Add remote monitoring function for existing ACS800, ACS850, ACS880, ACS355 series drives
- Unattended site deployment: Remote troubleshooting for pumping stations, fan groups and distributed unmanned workshops
Specifications & Technical Parameters
| Item | Specification |
|---|---|
| Part Number | NETA‑21 3AUA0000093675 |
| Mounting | 35 mm standard DIN‑rail |
| Protection Class | IP20 (cabinet installation only) |
| Power Supply | 10‑30 VDC, max 2 A; typical 200 mA@24 VDC |
| Operating Temperature | ‑20 ℃ ~ +60 ℃ |
| Storage Temperature | ‑40 ℃ ~ +70 ℃ |
| Ethernet Ports | 2 × RJ45 10/100 Mbps, Auto‑MDIX, STP cable, max 100 m |
| Serial Interfaces | RS‑232, Galvanic‑isolated RS‑485 (Modbus RTU) |
| DDCS Fiber Port | DDCS optical interface for ABB drive fiber communication |
| Panel‑Bus | PNL1 / PNL2 ports for ABB drive panel‑bus connection |
| USB 2.0 Host Port | USB‑A, for 3G/4G modem and local file export |
| SD Card Slot | SD / SDHC card up to 32 GB, for local data logging storage |
| Max Connected Drives | Up to 32 drives (shared across communication interfaces)ABB Group |
| Logging Intervals | 1 min / 5 min / 1 hr / 1 day / continuous mode |
| Indicators | PWR, STAT, MON, ETH status LED indicators |
| Certifications | CE, UL, RoHS compliant |
| Weight | Approx. 320 g |

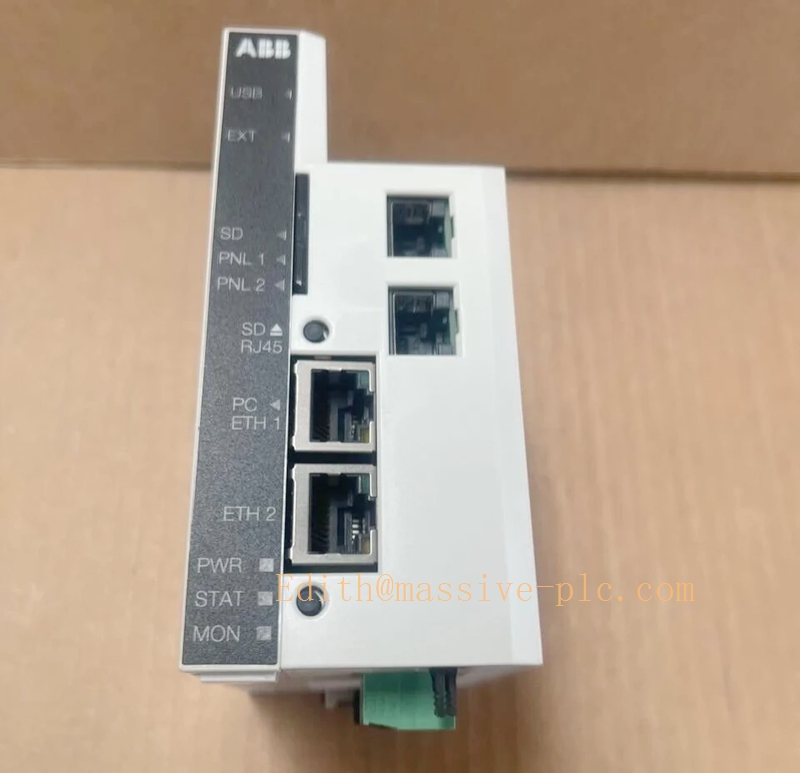

ABB NETA‑21 3AUA0000093675
Key Features & Benefits
- Embedded web‑server: No dedicated client software required; access via any standard web browser to monitor signals, modify parameters, view fault logs and trend curvesABB Group.
- Multi‑interface drive connectivity: Supports DDCS fiber‑optic, Modbus RTU, Panel‑Bus and Ethernet, compatible with wide range of ABB drive familiesABB Group.
- Local high‑capacity data logging: Store runtime statistics, energy data, fault events and parameter changes on SD‑card; supports offline data review and export.
- Cloud‑ready capability: Can connect to ABB Ability remote service platform for centralized multi‑site asset management (network port 443 outbound needed)ManualsLib.
- Flexible logging configuration: Different sampling cycles for different signal groups, supports continuous monitoring for critical drive variables.
- DIN‑rail compact industrial hardware: Wide operating temperature range, galvanic isolation for serial ports, suitable for industrial cabinet environments.
- Modular expandability: Works with NEXA‑21 expansion module for large‑scale ACS800 DDCS fiber network applicationsABB Group.

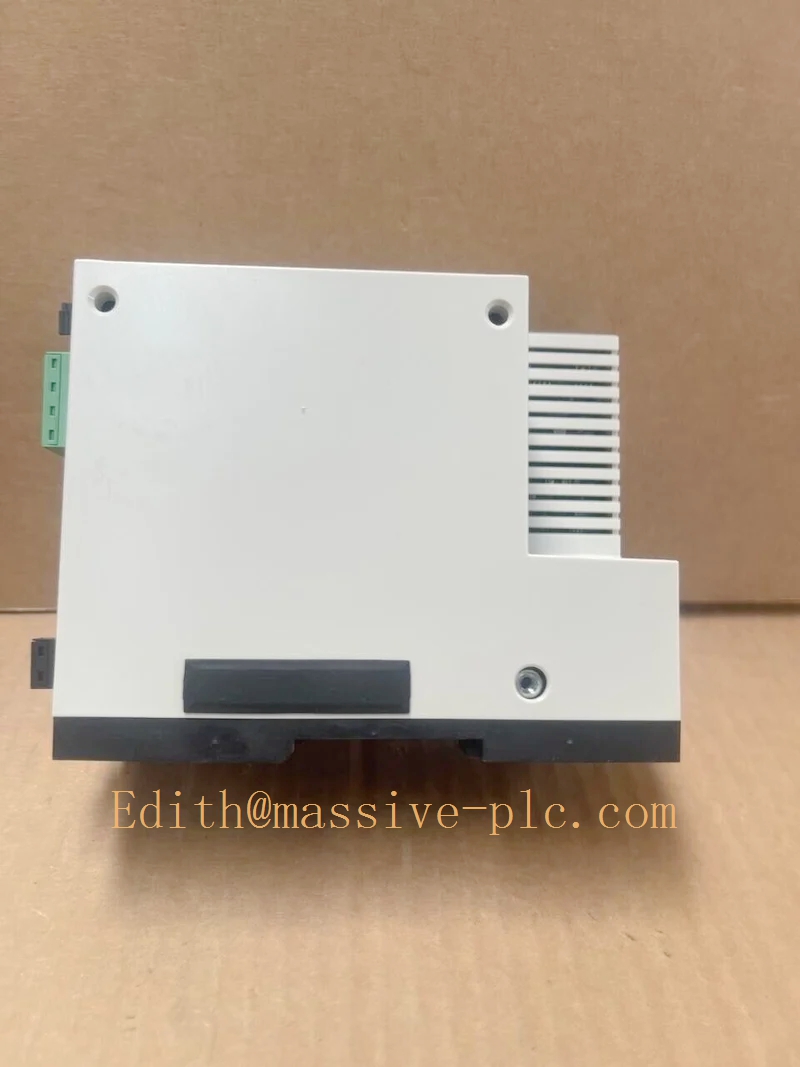

ABB NETA‑21 3AUA0000093675
Related Series‑Family Models
ABB drive remote‑monitoring & communication accessories
- NETA‑21 (3AUA0000093675): Main remote monitoring gateway (target model)
- NEXA‑21 (3AUA0000094518): DDCS fiber expansion unit, used together with NETA‑21 for ACS800 drivesABB Group
- NETA‑21+NEXA‑21 Kit (42003670): Complete fiber‑monitoring kit including cablesABB Group
- FENA‑21: Ethernet fieldbus adapter for ACS‑series drives (PROFINET / EtherNet/IP / Modbus‑TCP)ABB Group
- FMBT‑21: Modbus‑TCP communication adapter module for ABB drives
